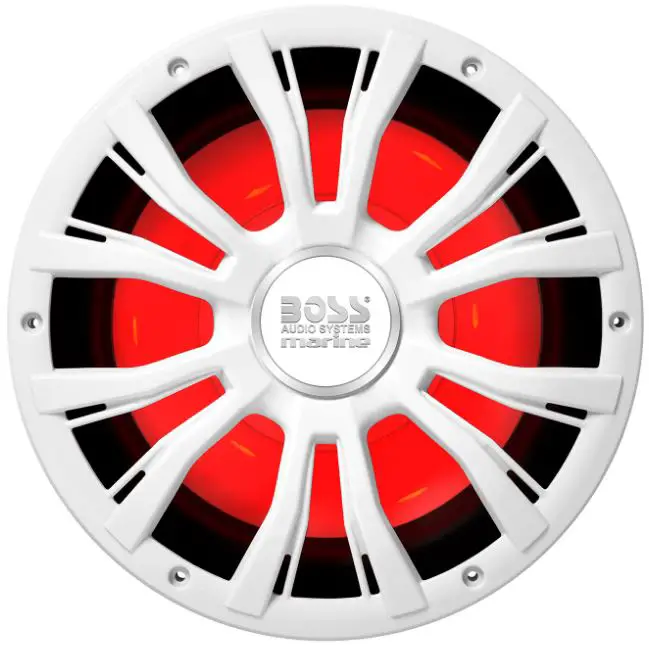

BOSS AUDIO MRGB10W 10 Inch 254mm Marine Dual Subwoofer
Congratulations on your purchase of the Boss Audio Phantom Subwoofer.
Boss Audio takes great pride in producing products that sound great and stand up to the daily rigors applied by audio enthusiasts around the world.
800W Peak Power Handling Polypropylene Cone with Rubber Surround

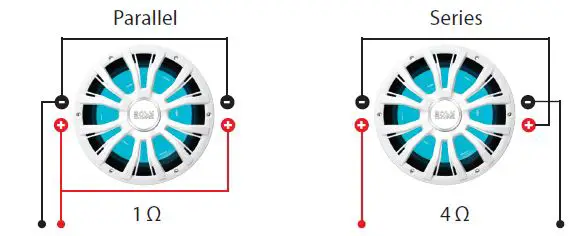

Wiring Options

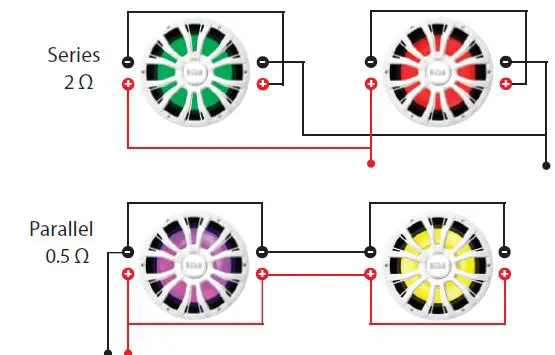

Multiple Subwoofers
Enclosures
The MRGB10W is designed to work in a sealed or ported enclosure.
Since the woofer has a pole-vent, it needs a minimum clearance from the rear wall enclosure of 0.75″ (19 mm).
Below you will find the dimensions to make the enclosure, it has been designed for maximum output while retaining great sound quality.
The dimensions have already accounted for the volume displacement of the subwoofer, and using 0.75″ (19 mm) MDF. All dimensions are external.
Enclosure Dimensions
Sealed Dimensions:
- Length (L) : 17″ (432 mm)
- Width (W) : 9″ (229 mm)
- Height (H) : 12″ (305 mm)
- Cut-out Diameter: 9.39″ (238.5 mm)
- Internal Volume: 1ft3
Ported Dimensions:
- Length (L) : 24″ (610 mm)
- Width (W) : 12″ (305 mm)
- Height (H) : 12″ (305 mm)
- Cut-out Diameter: 9.39″ (238.5 mm)
- Port Diameter: 4″ (102 mm)
- Port Length : 13″ (330 mm)
- Internal Volume: 1.9ft3

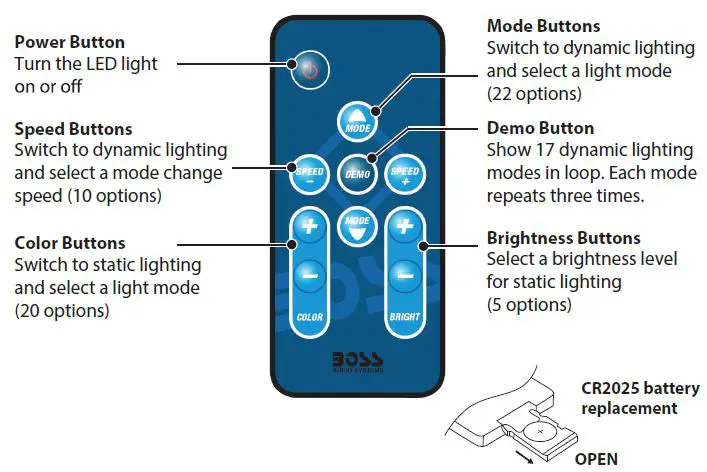

Wireless Remote Control Functions
Important notes on battery
- Observe correct polarity while inserting the battery. Replace only with the same type or equivalent type.
- Do not leave the battery under direct sunlight. This may cause fire, explosion or excessive heat.
- Do not recharge, dismantle or short-circuit the battery or throw it into fire.
- Remove the battery from the remote control if not used for a long time.
- The remote control contains a coin/button type battery, which can be swallowed.
Keep the battery out of reach of children at all times! If swallowed, the battery can cause serious injury or death.
Product Specifications
- Impedance Dual 2
- Resonant Frequency 40 Hz
- Qts 0.68
- Qms 7.15
- Qes 0.77
- Vas 0.96 f3 (27.1 L)
- Xmax (OneWay) 10 mm
- Sensitvity (1 W/ 1 m) 85 dB
- Peak Power Handling 800 W
- Mounting Depth 4.57″ (116 mm)
- Cut-out Diameter 9.39″ (238.5 mm)
Technical Support
If you need technical support with your Boss Audio product or have questions about its use, please contact us: 805.751.4853
www.bossaudio.com
Due to ongoing product development, specifications are subject to change without notice.
