Jamo SUB 210 Subwoofer
Jamo SUB 210 Subwoofer
SPECIFICATION
- VARIABLE PHASE CONTROL: 0 to -180
- POWER HANDLING (WATTS LONG/SHORT TERM): 200
- IMPEDANCE: 22k
- WOOFER (MM/IN): 230 / 8
- OVERALL DIMENSIONS (MM/IN, H X W X D): 313 x 283 x 305 / 12.3 x 11.1 x 12
- FREQUENCY RESPONSE (HZ, +/-3DB): 38-200
- CROSSOVER FREQUENCY: 40 – 200
- WEIGHT (KG/LB.): 7,5 / 16.5
- MAINS POWER / STANDBY POWER (W): < 0.5
- POWER HANDLING (WATTS LONG/SHORT TERM): Auto / On / Off
- SYSTEM TYPE: Bass Reflex
INTRODUCTION

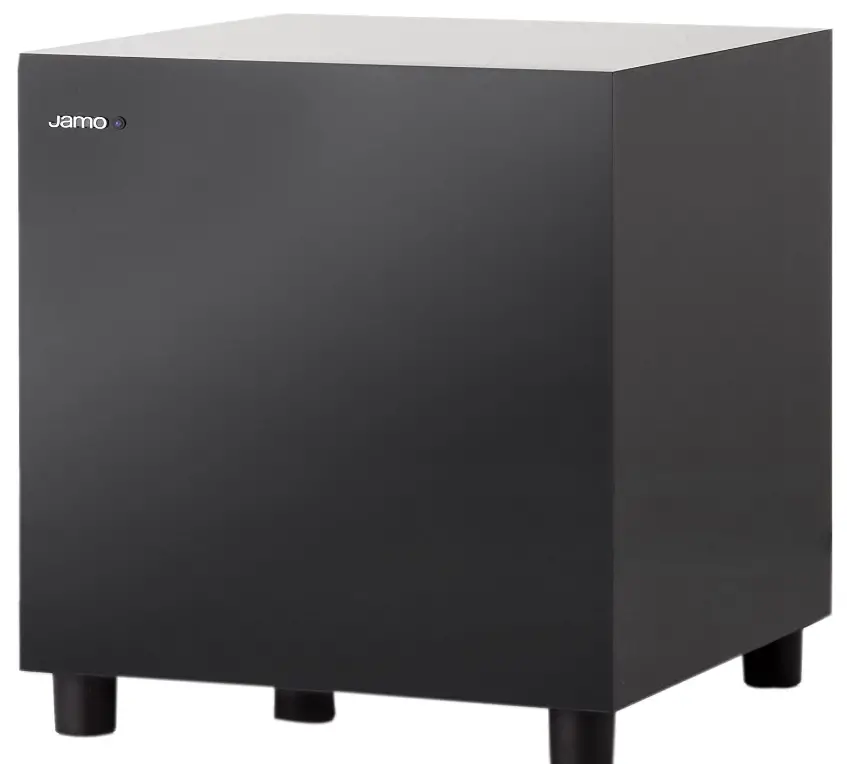

The Jamo SUB 210 subwoofer has a unique design that makes it smaller than any of its predecessors in its class, making it easier to fit in modern homes. This Jamo SUB 210 subwoofer offers performance that is unmatched in its class thanks to a 200W amplifier and long-throw 8″ woofer housed in a bass-reflex shell. This subwoofer is very simple to integrate with any other TV/speaker/amplifier/receiver combination thanks to the auto-on-off, controls for level, cut-off-frequency, and phase, and the line-level input.

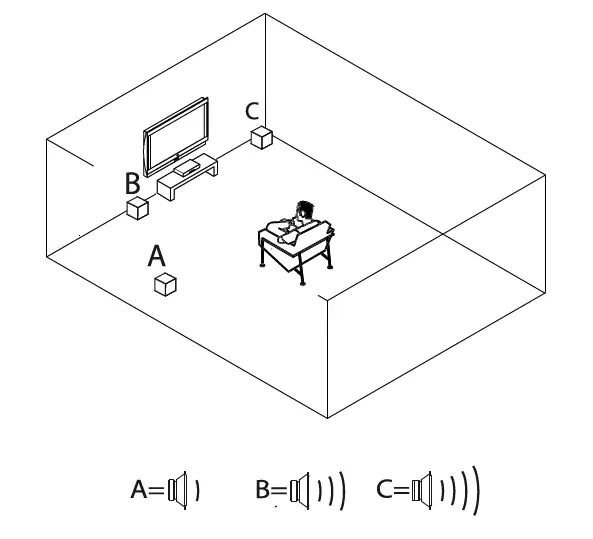

Placement

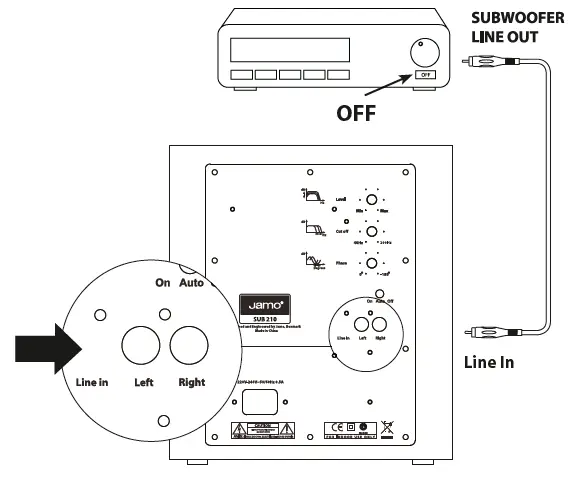

Setup

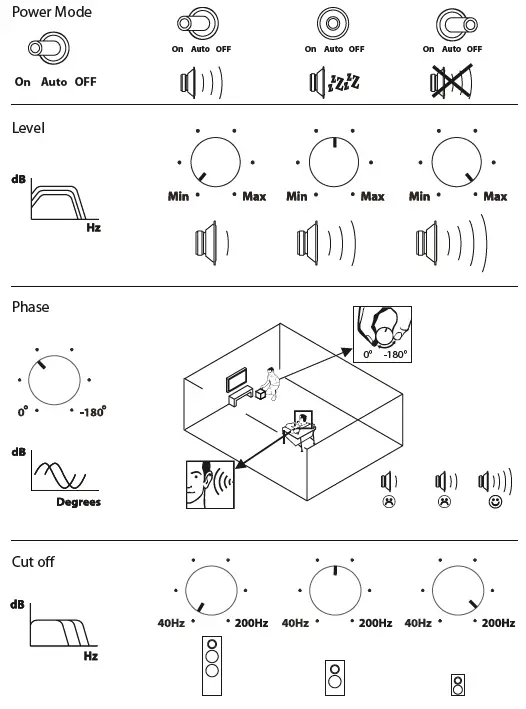

Adjust
The scope of the warranty
Service. In case of warranty enquiries, please contact your dealer/installer. In case of request for service under warranty, please enclose your original receipt and make sure that the serial number on the product is readable. Important: Never send the product to be repaired without the prior agreement of your dealer. The product must always be packed properly. If the product is NOT UNDER WARRANTY, all costs including without limit costs of repair and freight must be paid for by the customer.
Terms of Warranty
- Nothing in this warranty shall limit your statutory rights.
- The warranty is only valid on presentation of the original sales receipt or other valid proof of purchase, and provided that the serial number on the product is fully legible.
- Warranty repairs must be carried out by an authorized Jamo dealer, or an authorized service center. No payment will be made for repairs performed by unauthorized persons. This warranty does not extend to products which have been repaired or otherwise altered by unauthorized persons, and any damage to the product caused by work by unauthorized persons is not covered by this warranty.
- This product will not be considered defective, either in materials or in manufacture, to the extent that faults are caused by adaptation to national, local, technical or safety related requirements in countries other than the specific country where the product was purchased.
- Jamo shall at its option during the relevant warranty period either repair or replace defective components. If the component repair or replacement cannot be performed, the product will be replaced.
- In no circumstances shall Jamo be liable in contract, tort (including negligence) or breach of statutory duty or otherwise for loss of profits, loss of revenue, loss of data, loss of business or loss of anticipated savings or for any consequential loss whatever.
- The warranty does not cover the following:
- a) Periodic inspection, maintenance and repair or replacement of parts resulting from normal wear and tear.
- b) Costs connected to delivery to the dealer, disassembly or re-installation of the product.
- c) Misuse, including use for purposes other than was intended, or faulty installation.
- d) Damage caused by lightning, water, fire, natural catastrophes, war, insurrection, incorrect line voltage, insufficient ventilation, transport or other causes outside of the control of Jamo.
- This warranty applies to every legal owner of the product during the warranty period.
FREQUENTLY ASKED QUESTIONS
What is the impedance?
The impedance is 22k.
Is the subwoofer active or passive?
Yes, it is active.
Does that speaker have a 220V power source?
Yes, it is compatible with 220V.
How is the volume changed?
On the back, there are three adjustment knobs. Phase, Level, and Cut-Off. The Level knob is used to add the desired amount of bass to your system. However, the volume control on your receiver or amplifier is still used to control amplification.
Is it protected from magnets?
It is not magnetically protected, sorry.
What cables are used for connection?
Need a subwoofer cable from a mono RCA to a mono RCA.
Are Jamo subwoofers any good?
When listening to music, the Jamo Sub 210 has good low-frequency perception. As long as it is set up correctly, it can stabilize the song and make the sound richer without being overdone.
Who is Jamo speakers made by?
In 1968, Jamo was established with a focus on cutting-edge technology and Danish design.
How loud is too loud for a subwoofer?
With subwoofer, 120 dB is LOUD. The following day, 130db in the 30–40 Hz range can harm your ears. The midrange is very uncomfortable at 120dB.
How long should I break in my subwoofer?
20–24 hours for a significant period of time. Overnight, you can set it up with a strong, clear signal. You are now prepared to install and continue your journey.
What wattage subwoofer is best?
It is advised that you choose a subwoofer with at least 100 watts RMS of power in order to achieve a respectable amount of power.
How many dB is a good subwoofer?
Most people find that a playback level of 70 or 75 dB on their SPL meter at their listening position is pleasant.
Does higher watts mean more bass?
Like most things, bass necessitates a comparison of quantity and quality. Better bass is not always accompanied by more bass.
