Focal 091sub12 Sub 12 Subwoofers User Manual

091SUB12 Sub 12 Subwoofers
User Manual

091SUB12 Sub 12 Subwoofers

SUBWOOFERS SUB 12
Product sheet

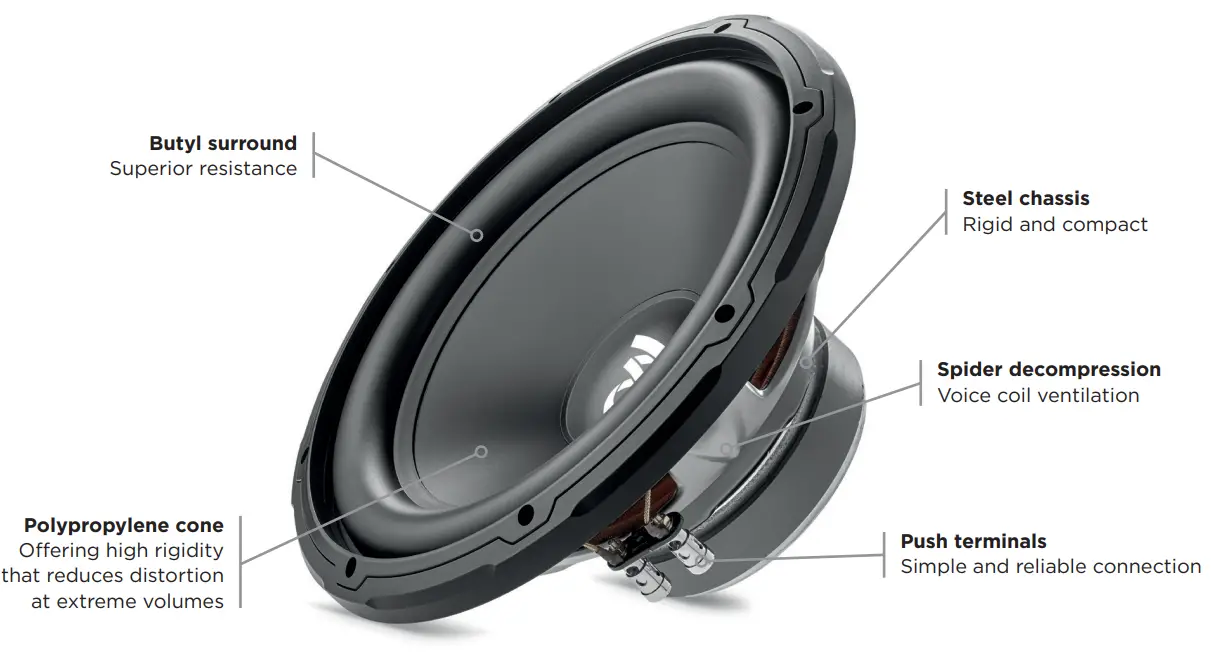

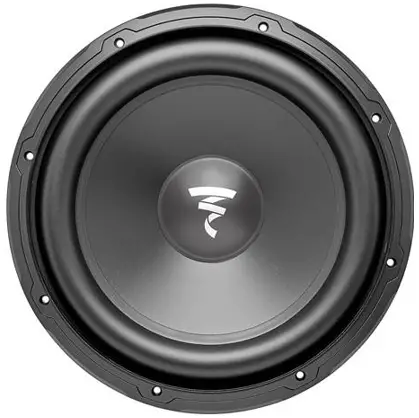

Designed and developed in France, the Sub 12 benefits from Focal’s renowned savoir-faire. With its 30cm polypropylene cone, this subwoofer provides an excellent bass boost for any on-board audio system. It features a single-coil architecture for simplicity and efficacy.

Key points

• A deep and powerful bass
• Effective as bass-reflex or sealed box
• Sealed box from 15L
• Bass-reflex box from 30L
• Robust design
• Excellent power handling

SUBWOOFERS

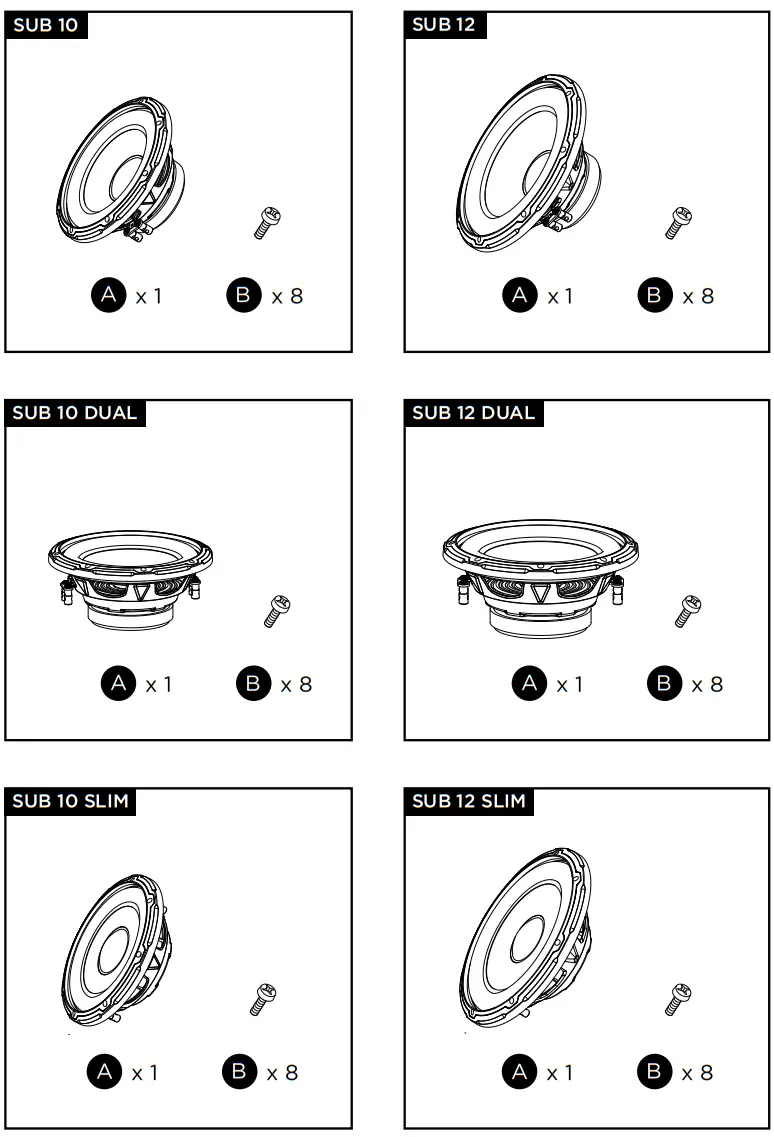

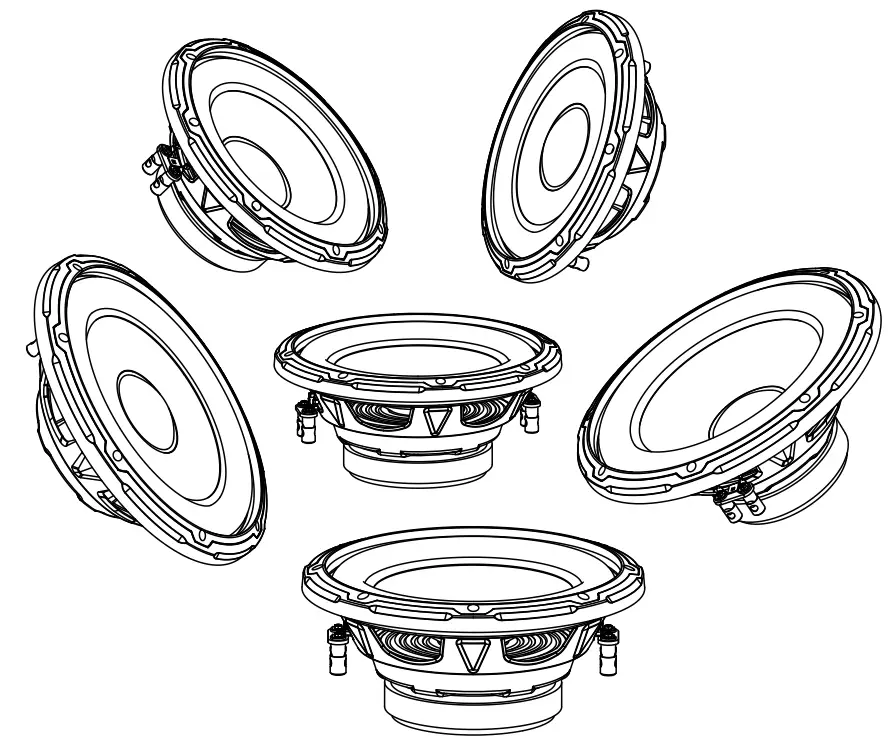

Sub 10 | Sub 10 Dual | Sub 10 Slim
Sub 12 | Sub 12 Dual | Sub 12 SlimREAD FIRST!

IMPORTANT SAFETY INSTRUCTIONS!

The exclamation mark represented in an equilateral triangle is intended to alert users to the existence of important instructions in the user manual relating to the use and maintenance of the device.

1. Read these instructions.
2. Keep these instructions.
3. Heed all the warnings.
4. Follow all the instructions.
5. To avoid damagingyour hearing, do not listen to loudspeakers at high volumes for long periods of time. Listening to loudspeakers at highvolumes can cause damage to the user’sears and may lead to hearing problems (temporary or permanent deafness, buzzing in the ears, tinnitus, hyperacusis). Exposure to excessive volumes (over 85 dB) for more than one hour can cause irreparable damage to your hearing.
6. If a subwoofer is installed in your vehicle, it is important to secure it firmly. We recommend that you attach the enclosure to the floor or chassis of the vehicle for safety. If the subwoofer is not properly secured, it could become a projectile in the event of an accident. This point is even more important if the subwoofer is installed in a hatchback, a station wagon, a utility vehicle or a van.(CEI 60417-6044)
7. If cables or harnesses are provided, use them the proper way (like mentioned in this user manual) without replacing or modifying them. 8. If a fuse is included in the kit or harness, use only same rating one in case of replacement.

SUBWOOFERS
User manual

1. Holes for attaching to closed cabinet, bass-reflex cabinet in the vehicle: Please use suitable screws to avoid damaging the floor of your vehicle or any of its other components.
2. Screw terminals : Connect your subwoofer to the amplifier using the terminal found on the rear of the speaker.
3. Speaker driver: Ensure that the woofer is pointing towards an open space in order to achieve the best acoustic performance. Ensure that there are no objects positioned across the grille, as this could damage the speaker drivers of your subwoofer.

SUB 10

V (L)	F-3 (Hz)	Ø
25	35	7cm	35cm
30	31	8cm	45cm
35	28	8cm	45cm

SUB 12
V (L)	F-3 (Hz)	0
30	35	7cm	35cm
33	33	8cm	45cm
40	31	8cm	45cm
SUB 10 DUAL
V (L)	F-3 (Hz)	0
25	35	7cm	35cm
30	32	7cm	35cm
331	31	7cm	35cm
SUB 12 DUAL
V (L)	F-3 (Hz)	0
30	30	7cm	35cm
35	28	8cm	45cm
40	25	8cm	45cm

SEALED ENCLOSURE / CAISSON CLOS

Please validate your Focal-JMlab warranty, it is now possible to register your product online: www.focal.com/warranty

Thank you for purchasing a Focal product. Welcome to our HighFidelity world. Innovation, tradition, excellence and pleasure are our values; our one and only aim is to bring
you a sound that is rich, pure and true. To get the most out of your product, we recommend that you read the instructions in this booklet, then store it in a safe place to
refer to in the future.
Important recommendations
First of all, check the space available for fitting the speaker drivers (refer to the plans on the packaging) then proceed with the cutting required. If mounted in the factory location, check that there is sufficient space between the speaker driver and the protective grille.

• Clear the speaker drivers of any metal shavings and dust particles.
• Clean carefully before mounting the speaker drivers.

Conditions of warranty
All Focal loudspeakers are covered by warranty drawn up by the official Focal distributor in your country. Your distributor can provide all details concerning the conditions of warranty. Warranty cover extends at least to that granted by the legal warranty in force in the country where the original purchase invoice was issued.
Our policy of continual product improvement means that Focal-JMlab reserves the right to modify the technical specifications of its products without notice. Product may vary from images.
Break-in period
Sud 10 and Sub 12 drive units use the very latest components, in the classic format. To ensure such complex mechanical elements work in harmony with each other, they must be allowed to function correctly in this environment. Changes in temperature and humidity are regarded as very hostile. In order to get the best of your subwoofer, a running-in period must be respected to ensure they are ready for this. We recommend that, once the system is ready for listening, the drive units should be run-in with medium volume setting, with music that has the full bandwidth of frequencies (sub-bass through treble). This running-in period should last for a few weeks, to gain the full potential. After which the excellent performance of your Subwoofer can be fully appreciated.
Correct elimination of this product.
This marking indicates that within the EU this product should not be disposed of with other household wastes. To prevent any risk to the environment or human health, please recycle them responsibly to encourage the reuse of material resources. To return your used device, please use the return and collection systems available, or contact the retailer where you purchased the product. They can recycle this product safely.
Please validate your Focal-JMlab warranty, it is now possible to register your product online: www.focal.com/warranty

Focal-JMlab
– BP 374 – 108, rue de l’Avenir
42353 La Talaudière cedex – France – www.focal.com
Tel. (+33) 04 77 43 57 00 – Fax (+33) 04 77 43 57 04
SCCG – 08/06/2022 – V1
