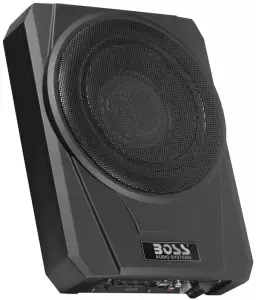

BOSS BASS10 Low Profile Amplified Subwoofer
Technical specifications
| Maximum output power | 1000W |
| Output impedance | 2.6Ω |
| Frequency | 30~150Hz |
| S/N(A) | 90dB |
| Maximum Current Consumption | (12A)RCA input 80mV |
| Sensitivity(Distortion level 1%) | Speaker input 0.8V |
| Voltage | 14.4V (10v~16V) |

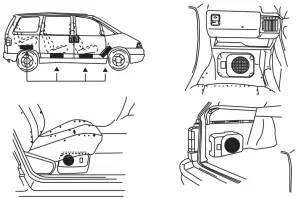

Suggestion of subwoofer placement
Increase the function that when hi input, the woofer power will automatically turn on/off.

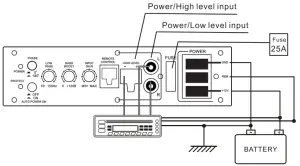

Wiring Diagram

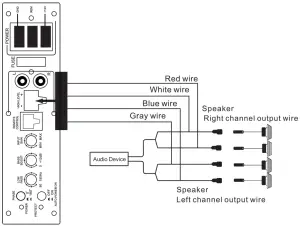

Wiring Diagram 1(High level input)

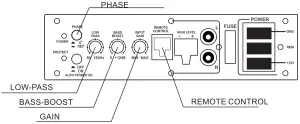

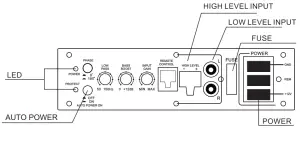

Functions Controlling Diagram
