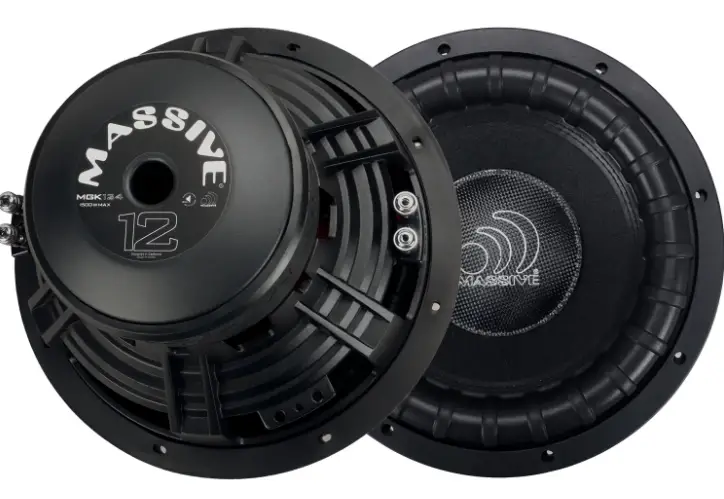

MASSIVE MGK124 12 Inch 750 Watts Dual 4 Ohm Subwoofer
General Features
- Heavy Duty Cast Aluminum Basket with Industrial Texture
- High Flux Y30 Strontium Ferite Magnet
- High Impedance Aluminum Former with EISV Voice Coil
- Poly Cofton Spider with Woven Round Tinsel Leads
- Non-pressed Paper Cone with Pressed Foam Surround
- Reinforced Fiberglass Woven Dust Cap for High Power Application 10mm Top Plate

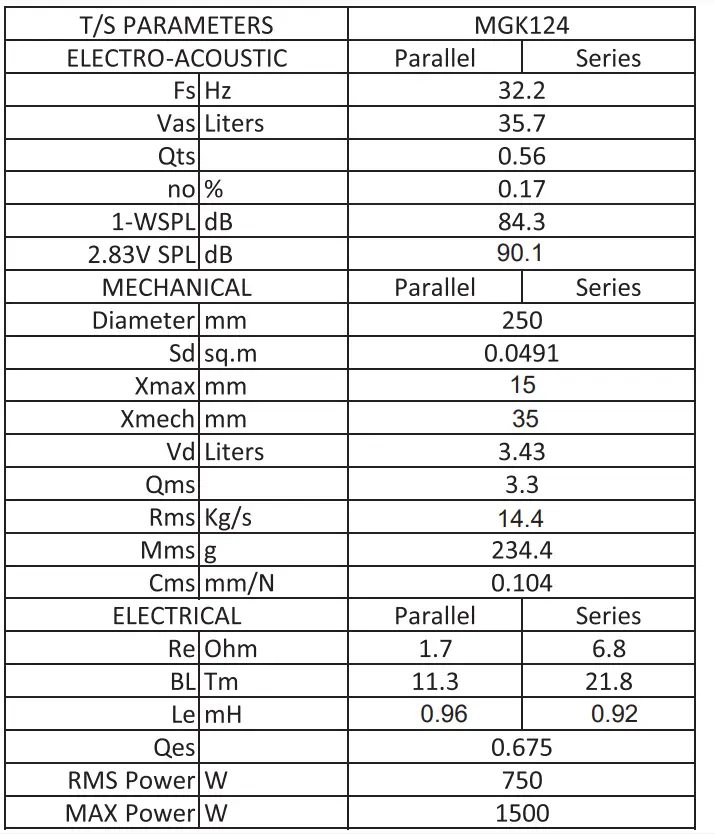

Specifications

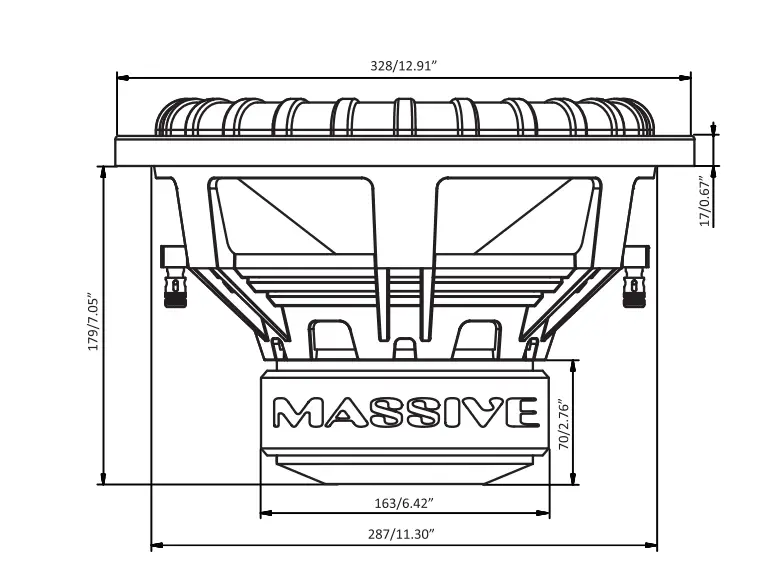

Dimension
| Mounting Depth | 179 mm | 7.05″ |
| Mounting Diameter | 328 mm | 12.91″ |
| Mounting cut diameter | 287 mm | 11.30″ |
| Net weight | 8.3 Kg | 18.3 Lb |
| Displacment | 0.00246 m3 | 0.087 Ft3 |
| External | Internal | Volume | Fb | Port round | Port Squar | |
| Sealed | 14″ x 13″ x 14″ | 1.04 ft3 | 0.94 ft3 | 46 Hz | N/A | N/A |
| Ported | 14″ x 18″ x 14″ | 1.49 ft3 | 1.38 ft3 | 38 Hz | (2) 4″x10″ | 10″(L)12.5″x2″ |
P.O. Box 252004 LOS ANGELES, CA 90025 U.s.A
www.MASSIVEAUDIO.cOM
