SUBWOOFERS
Thank you for choosing Power Acoustik woofers. Designed and engi-neered in the USA, this product combines innovative technology with the finest materials to consistently deliver Absolutely State of the Art performance, sound quality, reliability, and value. This Power Acous-tik product reflects our commitment to offer you unparalleled perfor-mance and quality for years of dependable service and listening en-joyment.

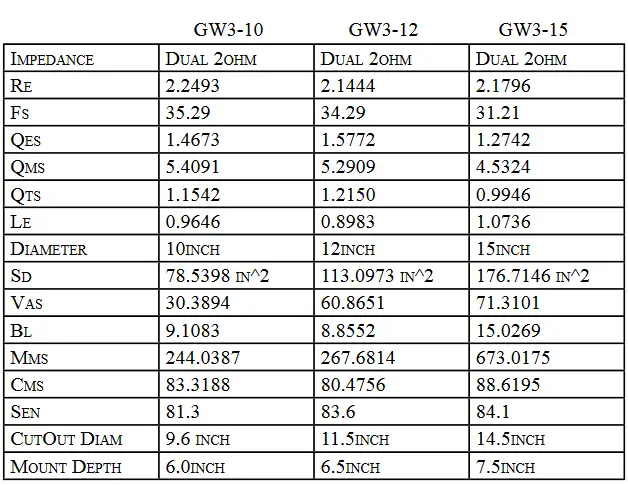

Features, Parameters, & Dimensions
Polyproplyne Cone
Rubber Surround
2.5” 4-layer VC on Aluminum Former Nickel Plated 8ga. Compression Terminals
Poly-Cotton Suspension Spider Vented T-Yoke Back-plate
Woven Polypropylene Dust Cap Textured Basket with Voice Coil Cooling
Enclosure Dimensions
Included in this manual are a number of different enclosure sugges-tions. These are by no means the only enclosures to use, but they provide a starting point to determine the correct enclosure for your needs many factors must be addressed (amount of power, vehicle, placement, crossovers, etc) Therefore, as always, SPL recommends that your subwoofer be installed by an authorized SPL dealer.
Enclosure Construction
All enclosures should be made of .75” (3/4”) material only. When pos-sible, make the baffle 1.5” (1 ½) thick and add .75” (3/4”) to the depth of the enclosure to compensate. All volumes INCLUDE vent/port and subwoofer displacements. DO NOT change the volume unless you plan on adding a substantial amount of bracing. For added per-formance, applying a coat of fiberglass resin to the interior walls will greatly improve sealing the enclosure. Adding a thin layer of poly-fill will improve response by smoothing out reflections within the enclo-sure.

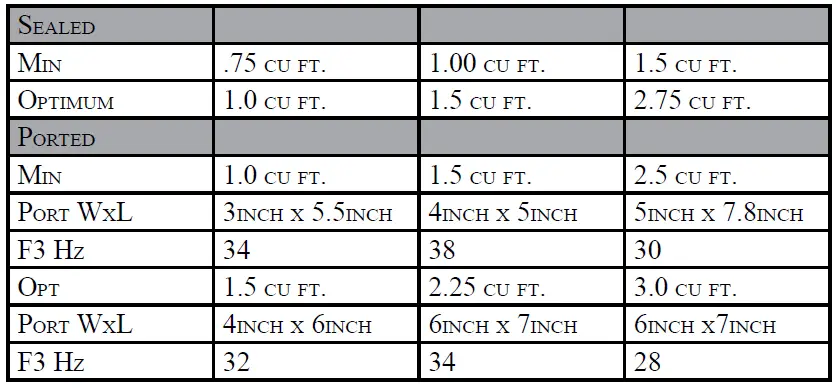

Enclosure Recommendations
