nVent Caddy 617 Pipe Roller With Steel Frame
Guides & Rollers

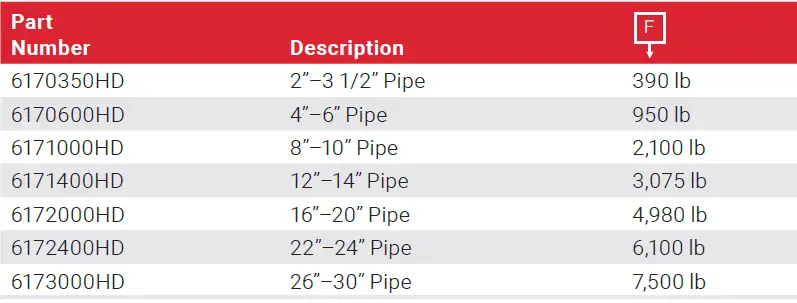

617 PIPE ROLLER WITH STEEL FRAME
- Support pipe from a substructure or structural member where longitudinal movement may occur due to expansion or contraction
- Conforms with Federal Specification WW-H-171 (Type 45), Manufacturers Standardization Society ANSI®/MSS-SP-58 (Type 44)
Material: Steel; Cast Iron
Finish: Hot-Dip Galvanized; Electrogalvanized
Frame and axle are carbon steel and roll is cast iron. Install in accordance with applicable code.

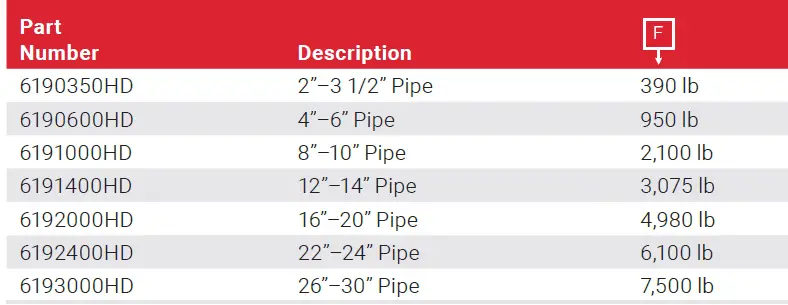

619 ADJUSTABLE PIPE ROLLER WITH STEEL FRAME
- Support pipe from a substructure or structural member where longitudinal movement may occur due to expansion or contraction
- Vertical adjustment is provided by adjusting bolts on each corner
- Conforms with Federal Specification WW-H-171 (Type 47), Manufacturers Standardization Society ANSI®/MSS-SP-58 (Type 46) Material: Steel; Cast Iron
Finish: Hot-Dip Galvanized; Electrogalvanized
Frame and axle are carbon steel and roll is cast iron. Install in accordance with applicable code.
