6100-LT-7 PowerBase Light – Automated Light Mount
PowerBase Series New
The intelligent, automated folding light and Antenna.
Why PowerBase
PowerBase easily stows and deploys lights and antennas with the push of a button
PowerBase is the only intelligent light/antenna with object detection technology
- SafeGuard Breakaway – In the event of an impact, powerbase will safely return to stowed position preventing potential damage to fiberglass top.
- SmartDeploy Backdrive – In the event of a blocked deployment, PowerBase senses an obstruction and reverses the light/antenna back to it starting position.
PowerBase is designed for worry-free installation and operation from assembly line to marina
- Standardized mounting patterns allow for upgradeability.
- Intuitive control without switch limitations.
PowerBase is compatible/built with the leading industry equipment
- For use with antennas up to 8 ft. In length (Powerbase Antenna).
- Available in masthead and all-round configurations featuring Attwood’s LightArmor LED technology (PowerBase Light).
Additional Features
| Powered Fold-down Control at the Helm | Easily fold down navigation lights and antennas without needing to dangerously climb seats, ladders, or gunwales |
| Safeguard Breakaway | Keep peace of mind knowing that upon impact with a bridge or branch, unit will breakaway preventing damage to your light, antenna, and hard-top |
| SmartDeploy Backdrive | Deploy lights and antennas without worry as the unit senses obstructions and automatically retracts – all the while notifying you of the obstruction |
| Intuitive Control Without Switch Limitations | Simplistic control scheme ensures boaters are always kept in control, without forcing proprietary switches |
| Visual System State Feedback | LED feedback makes boaters aware of failures to ensure that they’re always compliant, even if there is a mechanical/electronic failure on the vessel |
| Uses Existing Standardized Mounting Patterns | Ensures builders and boaters alike can utilize existing tooling to replace current manual fixtures |
| Follows Existing Wiring Paths | Wiring follows path of existing manual fold-down lights to the digital/analog switch for feedback and control |
| Manual Adjustment Failsafe | Easy to use manual override ensures boaters can always deploy lights in the event of system failure |

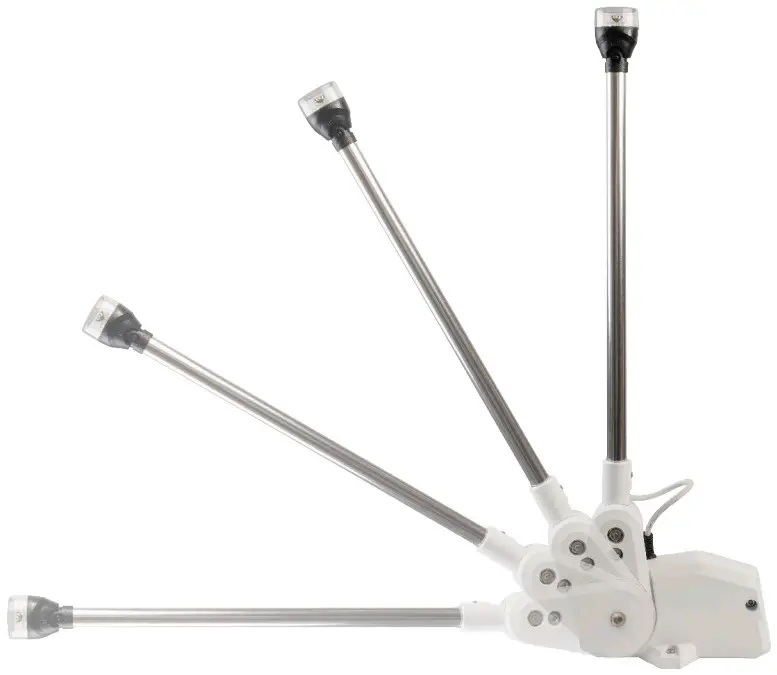

| 180° Range of Motion | PowerBase may be mounted so that the light/antenna folds toward a boat’s stern or bow |

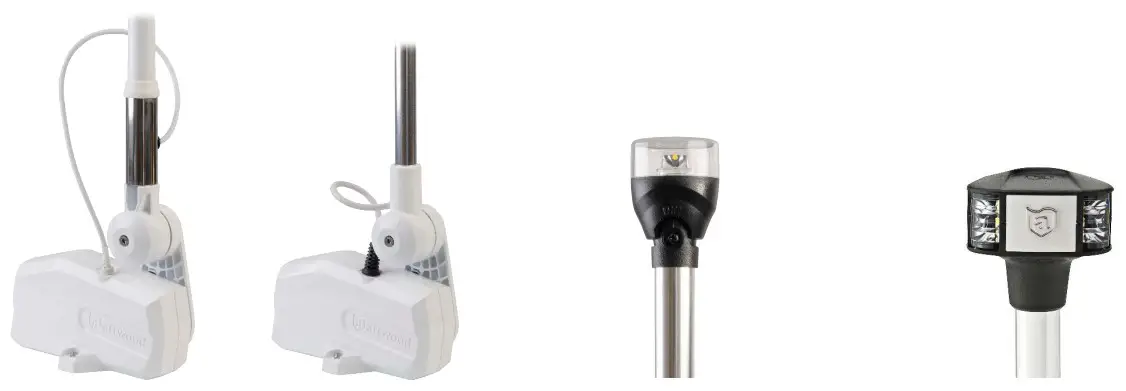

| PowerBase Antenna | PowerBase Light | LightArmor All-Around Navigation Light | LightArmor Masthead/Anchor Navigation Light | |||
| Part # | 6100-AT-1 | 6100-LT-1 | 24″ | 5590-24-1 | 24″ | 7800-24-1 |
| 30″ | 5590-30-1 | — | — | |||
| 36″ | 5590-36-1 | 36″ | 7800-36-1 | |||
| 42″ | 5590-42-1 | 42″ | 7800-42-1 | |||
| Compatibility | Compatible with all leading 1-1/4″ threaded VHF Antennas (8ft or less length) | Compatible with Attwood LightArmor LED All-Round and Masthead Nav Lights | For powered vessels under 39.4′ | For powered vessels between 39.5’–65′ | ||
| Key Features | SafeGuard Breakaway – In the event of an impact, unit will safely breakaway to protect light, antenna, and costly hardtop damage. | LightArmor LED – See and be seen with industry leading Navigation Technology, rated for 50,000+ hours of usage. | ||||
| SmartDeploy Backdrive – In the event of an obstruction, PowerBase will intelligently return to previous position while informing the user of the obstructed movement. | The Perfect Fit, Every Time – LightArmor Navigation Lights are easily installed and fully compatible with all PowerBase Light models. | |||||

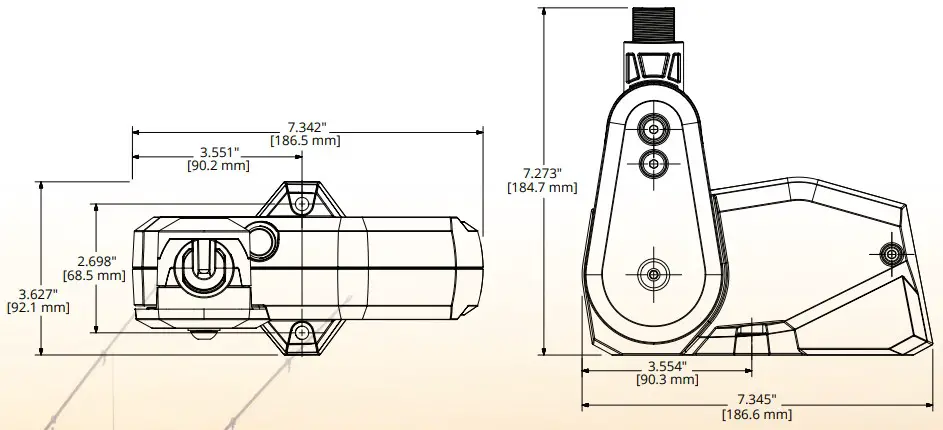

PowerBase Mounting Pattern Compatibility / Attachment Options
