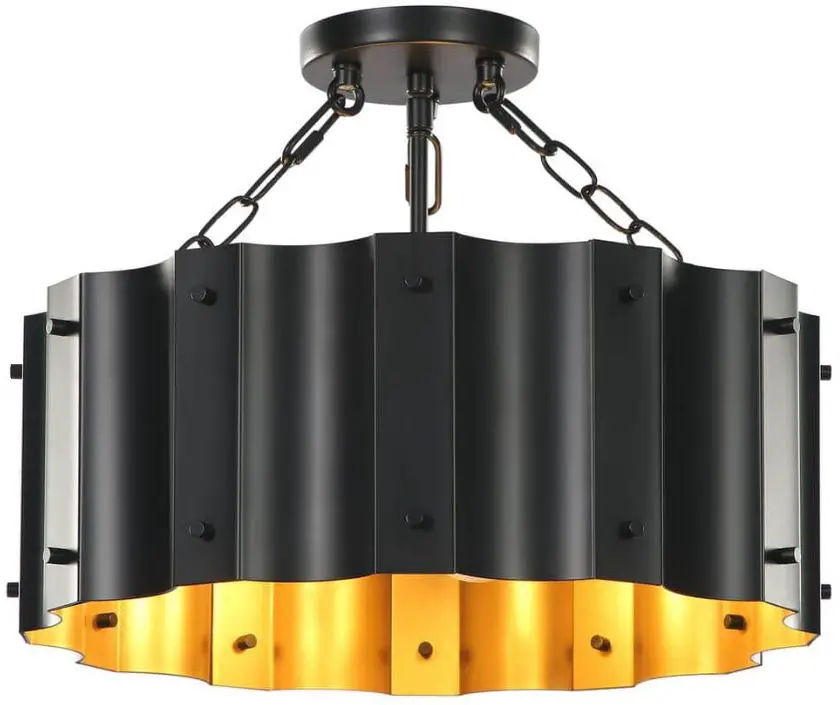

Tribesigns TH-SF0180 Bailey 3-Light Black Semi-Flush Mounted Light
Product Information
This user manual provides instructions for the assembly of a chandelier with SKU# TH-SF0180. The product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved. The fixture has been rated for up to 60-watt maximum TYPE A bulbs or 13-watt compact fluorescent light bulbs or 9-watt LED bulbs and is safety listed for dry locations. The product may be dimmed with a standard incandescent dimmer.
Usage Instructions
- Before starting installation of the light fixture, turn off electrical power.
- Wire supplies as required by local electrical code.
- Inspect the wire insulation for any cuts, abrasions, or exposed copper that may have resulted during shipping. If there is a defect in the wire, do not attempt installation.
- This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.
- To clean the fixture, turn off the power, wait for it to cool, and wipe the fixture with a clean, soft cloth. Never spray cleaner directly onto the fixture.
- To avoid the risk of fire, do not exceed the recommended wattage.
- Follow the assembly steps provided in the user manual.
- If you encounter any problems with the installation or usage of the product, refer to the troubleshooting section of the user manual or contact a qualified electrician.
SAFETY PRECAUTIONS
- TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
- WIRING SUPPLIES AS REQUIRED BY LOCAL ELECTRICAL CODE.
- THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
- TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH A CLEAN, SOFT CLOTH. NEVER SPRAY CLEANER DIRECTLY ONTO THE FIXTURE.
NOTE: Product may not look exactly as shown in figures.
CAUTION: Inspect the wire insulation for any cuts, abrasions, or exposed copper that may have resulted during shipping. If there is a defect in the wire, do not attempt installation.
This fixture has been rated for up to 60-watt maximum TYPE A bulbs or 13-watt compact fluorescent light bulbs or 9-watt LED bulbs . To avoid the risk of fire, do not exceed the recommended wattage. This product is safety listed for dry locations.
This product may be dimmed with a standard incandescent dimmer.

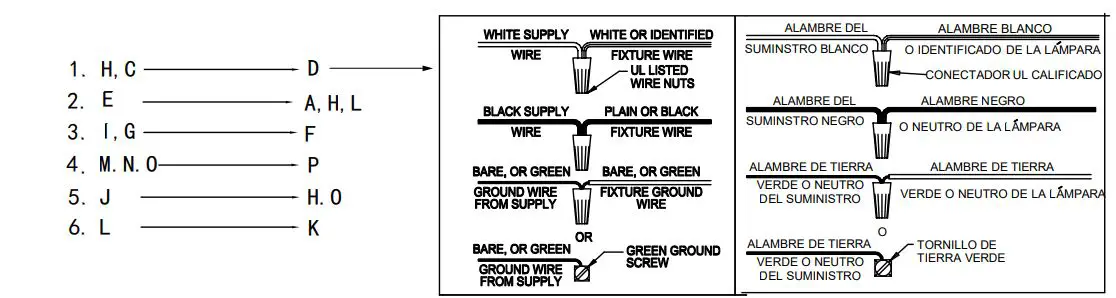

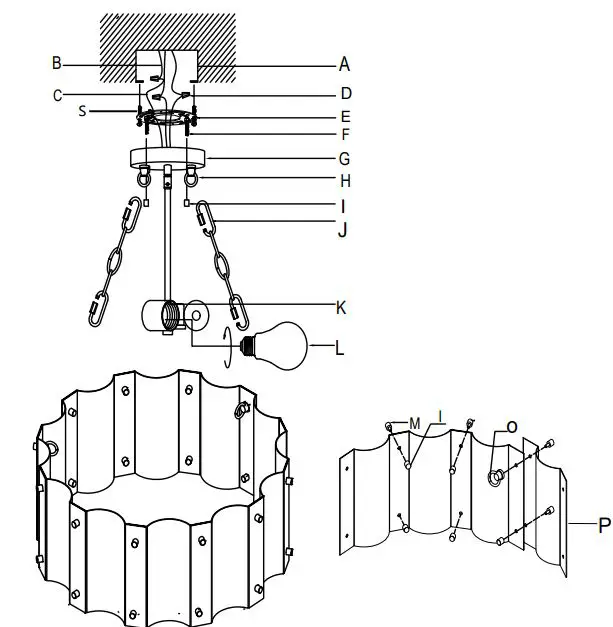

Assembly Steps
| Part Included | ||
| Code | Part description | QTY |
| A | Junction Box | 0 |
| E | Single Mounting Bracket | 1 |
| F | Canopy Screws | 2 |
| G | Canopy | 1 |
| J | Chain | 3 |
| H | Loop | 3 |
| I | canopy screws | 47 |
| K | Socket | 3 |
| L | Bulb | 3 |
| M | Shade Screws | 48 |
| O | Loop | 3 |
| P | Shade sheet | 12 |
| B | Leading Wires | 0 |
| C | Wires | 3 |
Trouble Shooting
| Problem | Possible Cause | Solution |
| The bulb will not light. | The power is OFF. | Ensure the power supply is ON. |
| There is a faulty wire connection. | Check the wiring. | |
| The circuit breaker is OFF. | Ensure the circuit breaker is in the ON position. | |
| The fuse blows or the circuit breaker trips when the light is turned ON. | There are crossed wires or the power wire is grounding out. | Check the wire connections. Contact a qualified electrician. |
