Hukoro F71611-SFM-BN Semi-Flush Mount Instruction Manual
CAUTION
- Inspect the wire insulation for any cuts, abrasions, or exposed copper that may have resulted during shipping. If there is a defect in the wire, do not attempt installation.
- Before starting installation of this fixture or removal of a previous fixture, disconnect the power by turning off the circuit breaker or by removing the fuse at the fuse box.
If you need further assistance, please contact us by Email: [email protected]
TOOLS REQUIRED
- Ladder
- Safety glasses
- Electrical tape
- Phillips screwdriver
- Flat blade screwdriver
- Pliers
- Wire strippers
HARDWARE INCLUDED
- Fixture
- Glass Shade
- Iron Ring
- Mounting Unit
- Ball Nuts
- Mounting Screws
- Wire Nuts
*PARTS SHOWN MAY DIFFER SLIGHTLY PER LIGHT FIXTURE

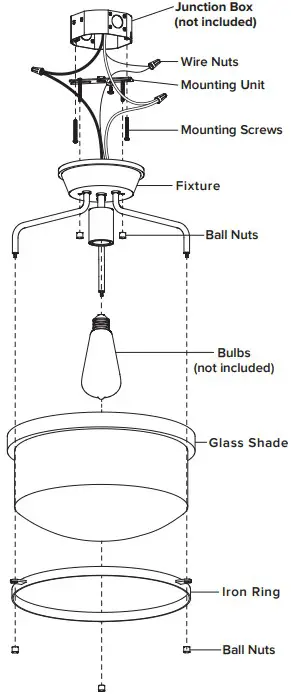

EXPLODED PARTS
ASSEMBLY INSTRUCTIONS
INSTALLATION

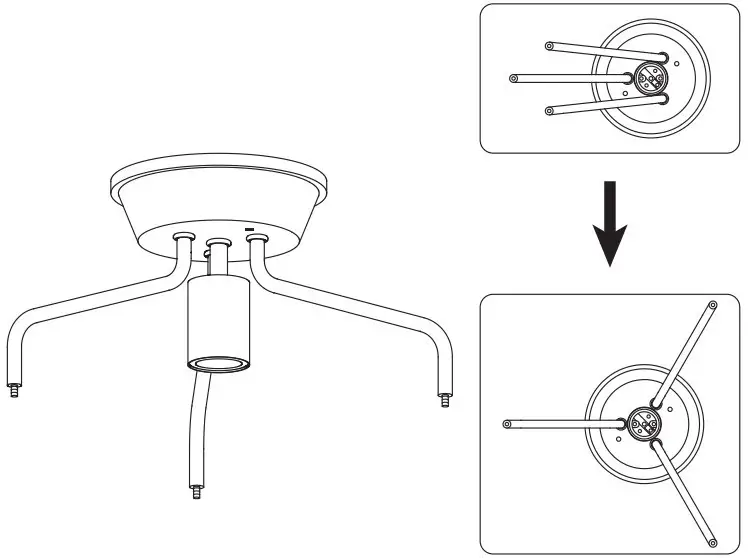

- STEP 1
Adjust arms to proper position.

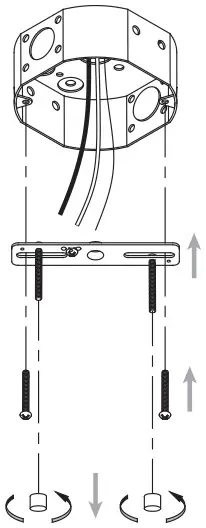

- STEP 2
Unscrew the ball nuts from the mounting unit.
Use the mounting screws to attach the mounting unit to the junction box (not included).

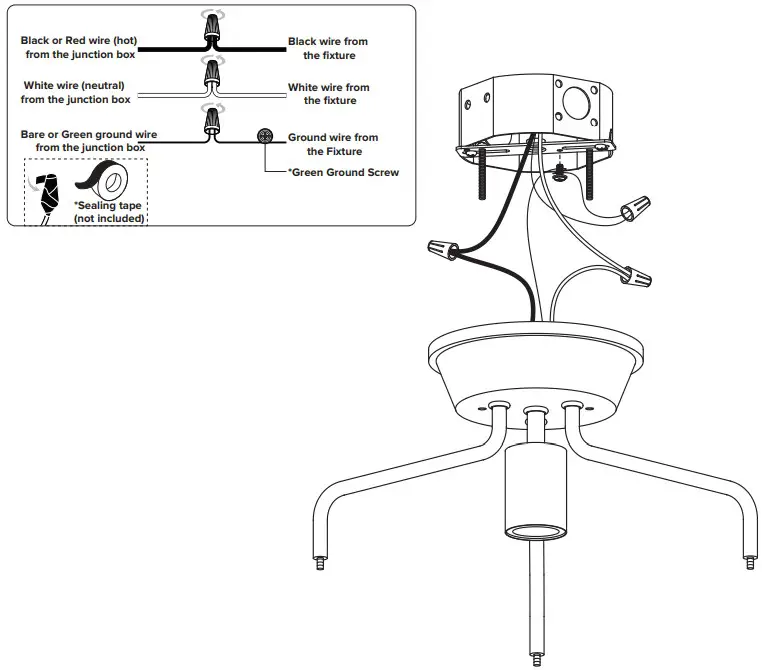

- STEP 3
Make the electrical connection from the junction box (not included) to the fixture. Connect the ground wire to the mounting unit using the preinstalled green ground screw. Next, connect the positive, negative and ground wires with the supplied wire nuts. Secure with electrical tape.

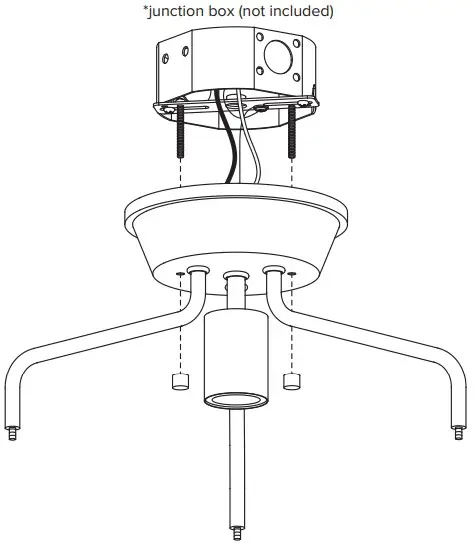

- STEP 4
Secure the fixture to the mounting unit with the ball nuts.

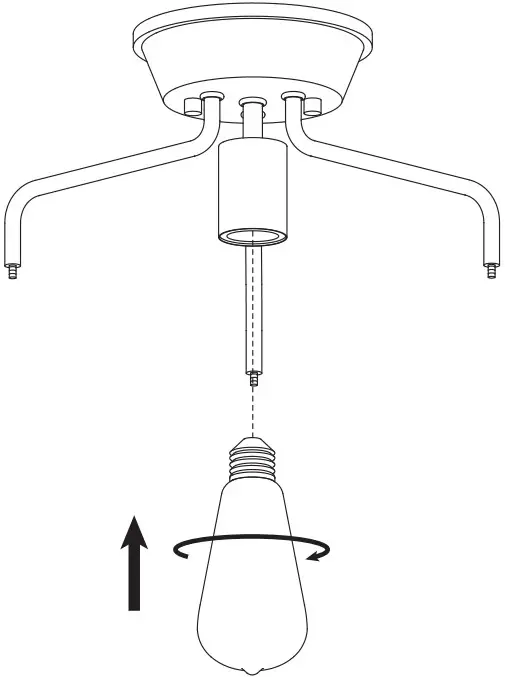

- STEP 5
Install bulb (not included)

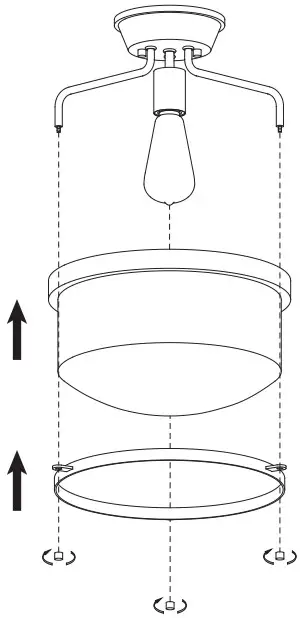

- STEP 6
Place the iron ring and glass shade onto the fixture, the secure with ball nuts.
