27.20 ·
Technical amendments reserved
Ceiling and wall luminaire
24 354
IP 65
24354K3 Ceiling and wall luminaire
Instructions for use
Application
Unshielded ceiling and wall luminaire with high protection class.
A luminaire made of aluminium alloy and crystal glass.
Product description
Luminaire made of aluminium alloy, aluminium and stainless steel BEGA Unidure ® coating technology

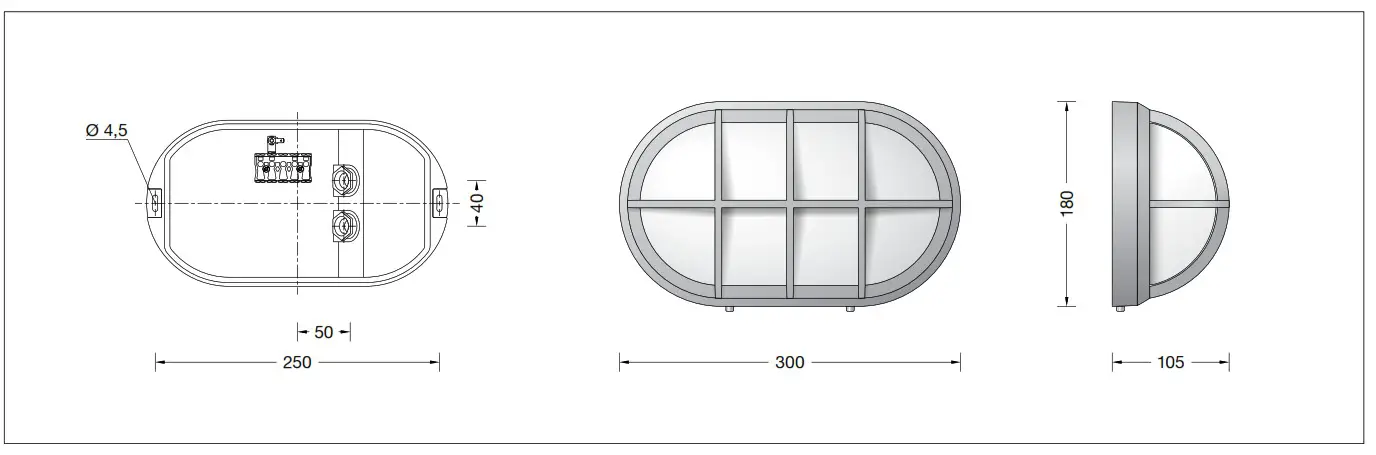

Crystal glass, white inside 2 mounting holes ø 4.5 mm
Distance apart 250 mm 2 screw cable glands with strain relief for through-wiring power connecting cable ø 7–12 mm 1 screw cable gland closed at the factory with a dummy plug Connecting terminal and earth conductor terminal 2.5@
LED power supply unit 220-240 V x 0/50-60 Hz
DC 176-280 V
DALI-controllable
Basic insulation is provided between the mains and control cables
BEGA Thermal Switch ®
Temporary thermal shutdown to protect temperature-sensitive components
Safety class I
Protection class IP 65
Dust-tight and protection against water jets
Impact strength IK07
Protection against mechanical
impacts < 2 joule– Safety mark
– Conformity mark
Weight: 2.4 kg
This product contains light sources of energy efficiency classes C, D
Safety
The installation and operation of this luminaire are subject to national safety regulations.
Installation and commissioning may only be carried out by a qualified electrician.
The manufacturer accepts no liability for damage caused by improper use or installation.
If subsequent modifications are made to the luminaire, the person responsible for these modifications shall be considered the manufacturer.
| Lamp | |
| Module connected wattage | 11.9 W |
| Luminaire connected wattage | 14 W |
| Rated temperature | ta = 25 °C |
| Ambient temperature | ta max = 30 °C |
| 24 354 K3 | |
| Module designation | LED-1093/830 |
| Colour temperature | 3000 K |
| Colour rendering index | CRI > 80 |
| Module luminous flux | 1990 lm |
| Luminaire luminous flux | 1152 lm |
| Luminaire luminous efficiency | 82,3 lm / W |
| 24 354 K4 | |
| Module designation | LED-1093/840 |
| Colour temperature | 4000 K |
| Colour rendering index | CRI > 80 |
| Module luminous flux | 2090 lm |
| Luminaire luminous flux | 1210 lm |
| Luminaire luminous efficiency | 86,4 lm / W |
Overvoltage protection
The electronic components installed in the luminaire are protected against overvoltage in accordance with DIN EN 61547.
To achieve an additional protection against e. g. transients, etc. we recommend separate overvoltage protection components. You can find them on our website at www.bega.com.
Installation
The luminaire can be installed in any burning position.
Undo hexagon socket head screws (wrench size 3 mm) through the opening in the luminaire housing up to the stop and lift luminaire top.
Disconnect the earth conductor connection from the plug connection.
Disconnect plug-connection of the LED connecting cable.
Lead the mains supply cable through the screw cable gland into the luminaire back housing.
The installed black gasket insert is intended for cables ø < 10 mm.
For cables ø 10-12 mm the enclosed grey gasket insert must be used.
In case of through-wiring replace the factory installed dummy plug with the enclosed corresponding gasket insert.

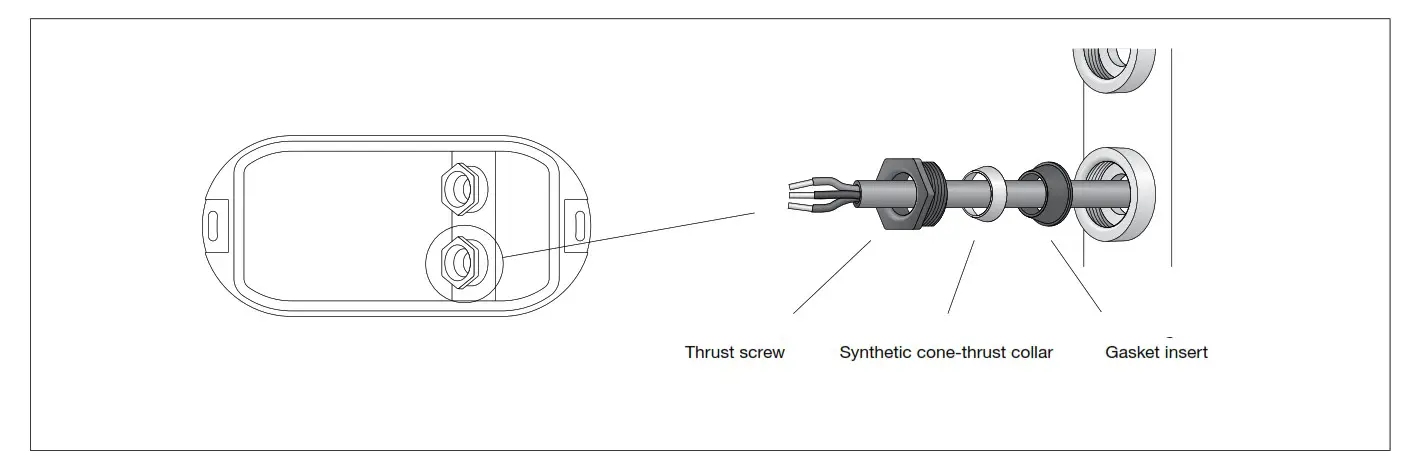

At the same time, use the enclosed synthetic cone-thrust collar between gasket insert and thrust screw (wrench size 22 mm) (see sketch).
Fix luminaire base with enclosed or any other suitable fixing material onto the mounting surface.
Tighten screw cable gland.
Make the earth conductor connection and the electrical connection.
For digital control please use the connecting terminal DA, DA.
In case this terminal is not used the luminaire will be operated at full light output.
In order to guarantee the maximum service life of the electrical components, the enclosed desiccant pouch must be placed in the luminaire.
Remove the desiccant pouch from the foil packaging and place it in the position marked by the red information label immediately before finally closing the luminaire.
Connect the LED connection cable by means of a plug connector.
Make earth conductor connection between luminaire top and luminaire base.
Push plug into coupler as far as it will go.
Make sure that gasket is positioned correctly.
Install the luminaire top, press-on and tighten screws evenly.
Cleaning · Maintenance
Clean luminaire regularly with solvent-free cleansers from dirt and deposits.
Do not use high pressure cleaners.
Replacing the LED module
The designation of the LED module is noted on a label in the luminaire.
The light colour and light output of BEGA replacement modules correspond to those of the modules originally fitted.
The module can be replaced by qualified persons using standard tools.
Disconnect the system and open the luminaire.
Please follow the installation instructions for the LED module.
Inspect and, if necessary, replace the luminaire gaskets.
Defective glass must be replaced.
Close the luminaire.
| Spares | |
| Spare glass | 11 003 532 B1 |
| LED power supply unit | DEV-0409/350 |
| LED module 3000 K | LED-1093/830 |
| LED module 4000 K | LED-1093/840 |
| Gasket glass | 83 002 011 |
| Gasket housing | 83 002 016 |
