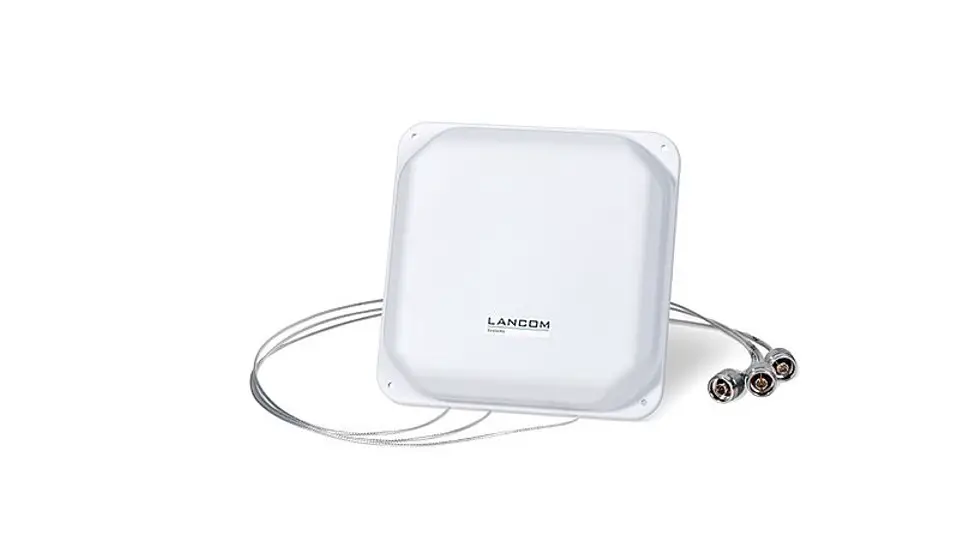

Mounting Instructions
LANCOM AirLancer
ON-T90ag
Mounting Instructions LANCOM AirLancer ON-T90ag
ON-T90ag AirLancer Systems GmbH
Preparation for wall mounting

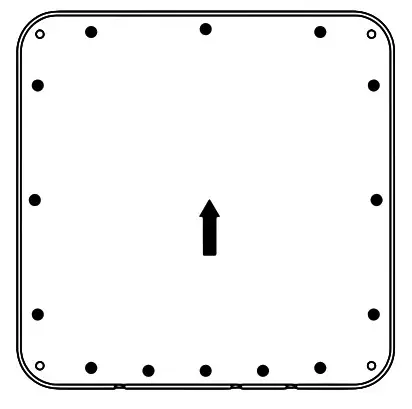

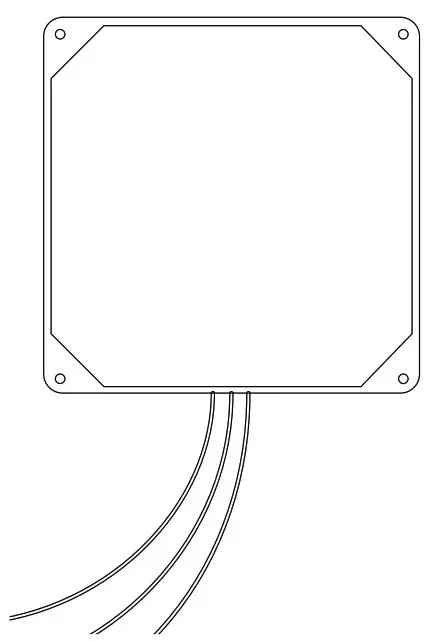

Use the antenna as a drilling template to mark out the drill holes for the wall mounting. The horizontal and vertical separation of the adjacent holes is 173.7 mm.
Size of the drill holes
Using the markings as a guide, drill the holes and insert dowels if appropriate. Depending on the surface material the required size of the holes may vary.
Mounting the antenna
Line-up the antenna with the holes and make sure that the connectors are pointing downwards. Then attach the antenna with the supplied screws.
Mounting the antenna with a free orientation can be achieved with the AirLancer Mount (ON) which is available optionally.
Operating mode 3×3 MIMO
In the 3×3 MIMO operating mode, all three antenna connectors are connected to the same Wi-Fi module of the access point.

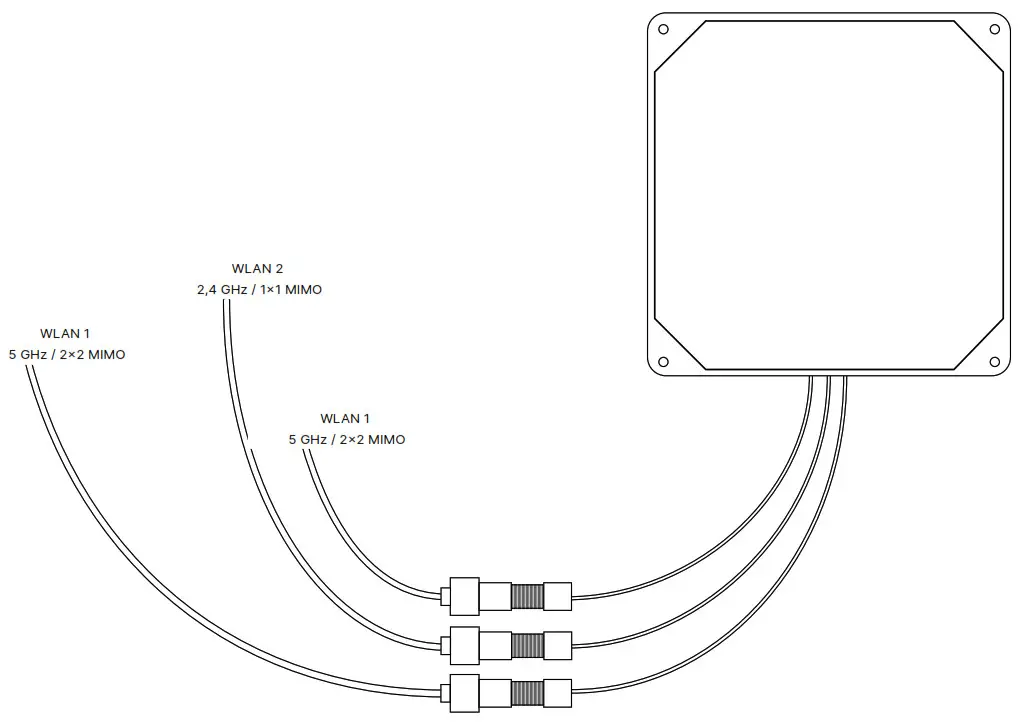

Operating mode 2×2 MIMO & 1×1 MIMO
Apart from its standard operation as a 3×3 MIMO antenna, this antenna can also be used by two different Wi-Fi modules. For this purpose the connectors marked with ‑45° and +45° are connected with the first Wi-Fi module, and the middle connector is connected to the second Wi-Fi module. The two Wi-Fi modules should not be operated in the same frequency band.
Please note that in this operating mode at least one antenna connector of the access point will be unused and has to be terminated.
Important information
Responsible handling of high frequency
In order to comply with the protection requirements of EU Directive 2014/53 and EN 62479 with regard to the basic restrictions for the safety of persons in electromagnetic fields and the „FCC Policy on Human Exposure to Radiofrequency Electromagnetic Fields“, it is necessary to configure the correct antenna gain in the WLAN router or WLAN access point.
Electrical and Electronic Equipment Act
Please do not dispose of electrical and electronic waste in household waste, where it cannot be recycled. Make sure that your electrical and electronic waste is disposed of in accordance with the currently valid guidelines of your country.
Correct handling of antenna cables
Antenna cables are sensitive RF cables. When laying them, it is therefore important to ensure that the cables are not kinked and are bent as little as possible, as this can result in losses in terms of antenna performance. Likewise, the antenna cables should not be wound into tight cable loops.
Antenna gain and termination of unused antenna ports on access points
Unused antenna connections on the access point must be terminated with an enclosed rod antenna. For indoor access points, the terminating resistor included with the AirLancer AN‑RPSMA‑NJ adapter can be used. In addition, the antenna gain must be specified in the configuration of the access point.
| Technical data | ON-T90ag |
| Frequency range | 2,400 ‑ 2,500 MHz, 4,900 ‑ 5,900 MHz |
| Antenna characteristics | |

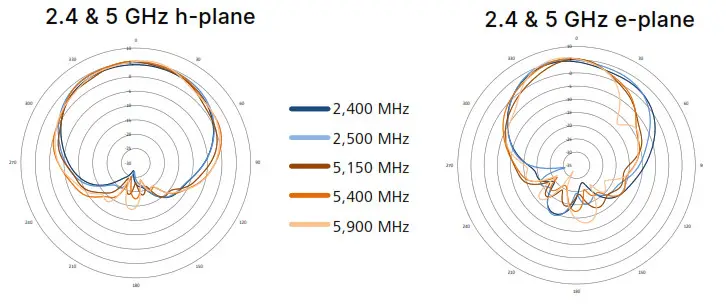

| Radiation patterns | horizontally 2.4 GHz: 100° vertically 2.4 GHz: 90° horizontally 5 GHz: 75° vertically 5 GHz: 60° |
| Recommended use | Point-to-Multipoint, Sector |
| VSWR | 1.5:1 typ. / 2.0:1 max. |
| Gain | 2.4 GHz: 6 dbi max. 5 GHz: 5 dbi max. |
| Mechanical Data | |
| Dimensions (mm) | 200 x 200 x 34 mm (Length x Width x Height) |
| Weight | 450 g (Antenna without mounting kit) |
| Operating temperature | ‑40 °C to 70 °C |
| Color | Light grey |
| Material | UV resistant plastic |
| Mounting options | Fixed wall mount, Alignable wall- and pole mount (with optionally available AirLancer Mount (ON)) |
| Cables & Connectors | 3x 81,2 cm UV resistant RG316 cable with N-male connector |
| Item | |
| Warranty | 2 years for AirLancer and accessories |
| Item no. | 61241 |
| Scope of delivery | Antenna, mounting material for fixed wall mount |
LANCOM, LANCOM Systems, LCOS, LANcommunity and Hyper Integration are registered trademarks. All other names or descriptions used may be trademarks or registered trademarks of their owners. This document contains statements relating to future products and their attributes. LANCOM Systems reserves the right to change these without notice. No liability for technical errors and/or omissions. 111745 11/22
