GS-1108 GmbH Systems
User Guide
Mounting & connecting

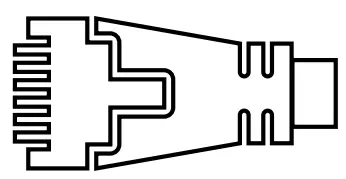

TP Ethernet ports
Connect one of the TP Ethernet ports 1-8 via an Ethernet cable to your end device or another LAN switch.
Power connector (on the back side of the device)

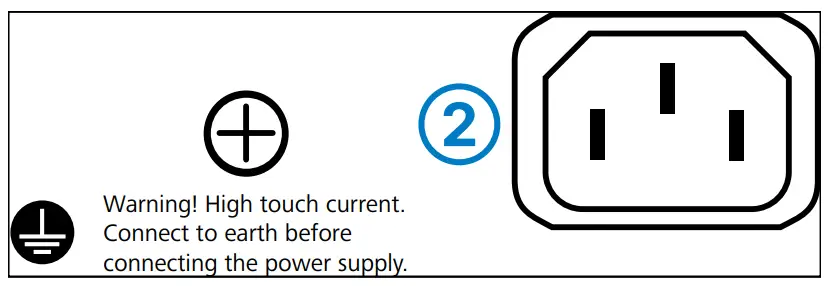

Supply power to the device via the power connector on the back. Please use the supplied IEC power cable.
Before initial startup, please make sure to take notice of the information regarding the intended use in the enclosed installation guide! Operate the device only with a professionally installed power supply at a nearby power socket that is freely accessible at all times. Before initial startup, please make sure to take notice of the information
regarding the intended use in the enclosed installation guide! Operate the device only with a professionally installed power supply at a nearby power socket that is freely accessible at all times.
Please observe the following when setting up the device
- The power plug of the device must be freely accessible.
- For devices to be operated on the desktop, please attach the adhesive rubber footpads
- Do not rest any objects on top of the device
- Keep all ventilation slots on the side of the device clear of obstruction
- Please note that support service for third-party accessories is excluded. Please observe the following when setting up the device
- The power plug of the device must be freely accessible.
- For devices to be operated on the desktop, please attach the adhesive rubber footpads
- Do not rest any objects on top of the device
- Keep all ventilation slots on the side of the device clear of obstruction
- Mount the device into a 19” unit in a server cabinet using the provided screws and mounting brackets.
- Please note that support service for third-party accessories is excluded.

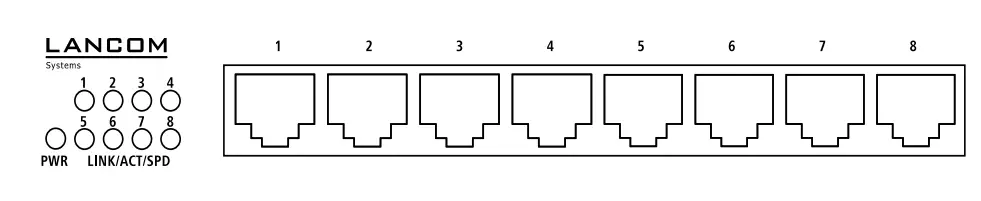

➀ PWR
| Off | Device switched off |
| Green | Device operational |
➁ LINK/ACT/SPD
| Green, permanently | Link 1000 Mbps, no data transmission |
| Green, flickering | Data transmission 1000 Mbps |
| Orange, permanently | Link 10 / 100 Mbps, no data transmission |
| Orange, flickering | Data transmission 10 / 100 Mbps |
Hardware
| Power supply | Internal power supply unit (110–230 V, 50-60 Hz) |
| Power consumption Environment | Max. 10 watts |
| Environment | Temperature range 0–40 °C; humidity 10–90 %; non-condensing |
| Housing | Robust metal housing 197,2 x 35,5 x 120 mm (W x H x D), network connectors on the front |
| Number of fans | None; fanless design without rotating parts, high MTBF |
Interfaces
| ETH | 8 TP Ethernet ports 10 / 100 / 1000 Mbps |
Package content
| Cable | 1 IEC power cord |
This product contains separate open-source software components which are subject to their own licenses, in particular the General Public License (GPL). The license information for the device firmware (LCOS) is available on the device‘s WEBconfig interface under “Extras > License information“. If the respective license demands, the source files for the corresponding software components will be made available on a download server upon request.
