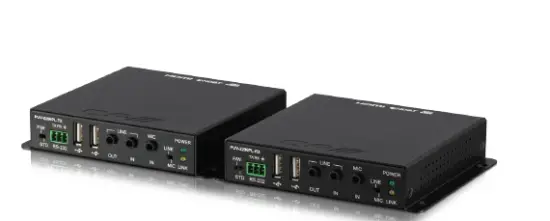

CYP- PUV-2200PL-TX-RX -HDBaseT -Transmitter- LOGO

CYP PUV-2200PL-TX-RX HDBaseT TransmitteCYP- PUV-2200PL-TX-RX -HDBaseT -Transmitter- PRODUCT

DISCLAIMERS

The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document. CYP (UK) Ltd also makes no commitment to update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document and/or product at any time and without notice.

COPYRIGHT NOTICE

No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or any of its part translated into any language or computer file, in any form or by any means—electronic, mechanical, magnetic,optical, chemical, manual, or otherwise—without express written permission and consent from CYP (UK) Ltd. © Copyright 2021 by CYP (UK) Ltd. All Rights Reserved. Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply Please keep the following in mind as you unpack and install this equipment:

  • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this product near water.
  • Never spill liquid of any kind on or into this product.
  • Never push an object of any kind into this product through any openings or empty slots in the unit, as you may damage parts inside the unit.
  • Do not attach the power supply cabling to building surfaces.
  • Use only the supplied power supply unit (PSU). Do not use the PSU if it is damaged.
  • Do not allow anything to rest on the power cabling or allow any weight to be placed upon it or any person walk on it.
  • To protect the unit from overheating, do not block any vents or openings in the unit housing that provide ventilation and allow for sufficient space for air to circulate around the unit.

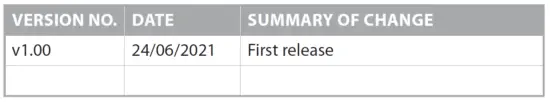

REVISION HISTORYCYP- PUV-2200PL-TX-RX -HDBaseT -Transmitter- 1

INTRODUCTION

This 4K UHD HDMI over HDBaseT transmitter and receiver pair uses HDBaseT 2.0 technology, and is the perfect solution for extending high bandwidth HDMI 4K@60Hz (4:2:0, 8-bit) video (10.2Gbps) with HD audio via a single run of Cat.6A/7 cable over distances of up to 40 metres. Multiple control and data signals may also be transmitted along with the HD audio and video, including bi-directional IR, RS-232, bi-directional analogue audio, and USB 2.0. When the transmitter and receiver are used together, the USB 2.0 Type-B port on the transmitter can connect a single USB host (such as a laptop or PC) to devices on up to 5 USB 2.0 (Type-A) ports (2 on the transmitter, 3 on the receiver) forming a highly powerful KVM extension configuration. Additionally, the receiver is powered by PoH (Power over HDBaseT) provided by the transmitter, allowing for greater flexibility within different installation scenarios. This transmitter and receiver pair is ideal for use in any video extension scenario, but they excel when latency-free, uncompressed, high resolution video

APPLICATIONS

  • Household entertainment sharing and control
  • Lecture hall/classroom display and control
  • Meeting room presentation and control

PACKAGE CONTENTS

Transmitter

  • 1× UHD HDMI/USB to HDBaseT Transmitter
  • 1× 24V/2.7A DC Power Adapter
  • 1× 3-pin Terminal Block
  • 1x 4-pin Terminal Block
  • 1× Operation Manual

Receiver

  • 1× UHD HDBaseT to HDMI/USB Receiver
  • 1× 3-pin Terminal Block
  • 1x 4-pin Terminal Block
  • 1× Operation Manual

SYSTEM REQUIREMENTS

  • HDMI source equipment such a media player, video game console, or set-top box.
  • HDMI receiving equipment such as an HDTV, monitor, or audio amplifier.
  • The use of Premium High Speed HDMI cables, and industry standard Cat.6A or Cat.7 Ethernet cable is highly recommended.

FEATURES

  • HDMI 2.0 and DVI 1.0 compatible
  • HDCP 2.2 and HDCP 1.x compliant
  • HDBaseT 2.0 compliant (Backwards compatible with 1.0)
  • 1 HDMI input and 1 HDBaseT output (Transmitter)
  • 1 HDMI output, and 1 HDBaseT input (Receiver)
  • Supports up to 4K UHD (10.2Gbps, 4K@60Hz 4:2:0, 8-bit) video input and output over both HDMI and HDBaseT
  • Supports Deep Colour input and output up to 12-bit
  • Supports CEC bypass
  • HDBaseT extends video, audio and data over a single Cat.6A/7 cable and can reach distances up to 40m/131ft
  • HDBaseT feature support: HD Video and Audio, PoH (Tx to Rx), Bi-directional audio (analogue), and Control (bi-directional USB/IR/RS-232 pass-through) 2 USB 2.0 Type-A device ports and 1 USB 2.0 Type-B host port (Transmitter)
  • 3 USB 2.0 Type-A device ports (Receiver)
  • Supports pass-through of digital audio formats including 8 channel LPCM, Bitstream and HD Bitstream
  • Selectable stereo/microphone analogue audio bypass functionality Transmitter can supply PoH to the connected receiver
  • Receiver is powered directly via PoH from the connected transmitter
    Note: A compatible PSE transmitter providing PoH is required to power this receiver. Transmitters from other brands may not be compatible.

OPERATION CONTROLS AND FUNCTIONS

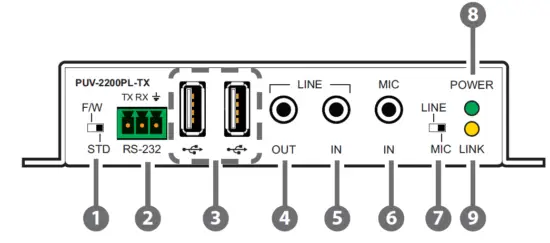

Front Panel (Transmitter)CYP- PUV-2200PL-TX-RX -HDBaseT -Transmitter- 2

  1. F/W & STD Switch: Move this switch to toggle the RS-232 port’s functionality between firmware update and RS-232 bypass mode. The default setting is “STD” (RS-232 Bypass).
  2. RS-232 3-pin Terminal Block: Connect to a PC, laptop, or serial controllable device with a 3-pin adapter cable for the extension of RS-232 signals between both ends of the HDBaseT connection.
  3. USB 2.0 Ports (Type-A): Connect directly to standard USB devices such as a mouse, keyboard, or flash drive to extend their USB functionality to the local USB (Type-B) host port.
  4. LINE OUT Port: Connect to powered speakers or an amplifier for analogue udio output. Audio is sourced from the analogue audio input on the connected compatible receiver.
  5. LINE IN Port: Connect to the analogue audio output of a device such as a media player or game console. Audio is sent to the analogue audio output on the connected compatible receiver.
  6. MIC IN Port: Connect to a standard unpowered microphone using a 3.5mm plug.
  7. LINE & MIC Switch: Move this switch to toggle the analogue audio source to send to the other end of the HDBaseT connection between LINE IN or MIC IN. The default setting is “LINE”.
  8. POWER LED: This LED will illuminate to indicate the unit is on and eceiving power.
  9. LINK LED: This LED will illuminate solidly when a live connection with a compatible receiver is active.

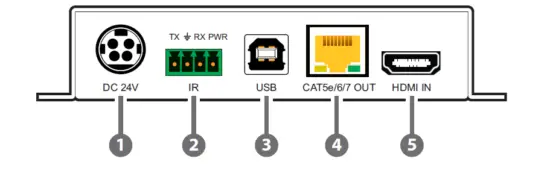

Rear Panel (Transmitter)CYP- PUV-2200PL-TX-RX -HDBaseT -Transmitter- 3

  1. DC 24V: Plug the 24V DC power adapter into this port and connect it to an AC wall outlet for power.
  2. IR 4-pin Terminal Block (In/Out): Connect to both an IR Blaster and Extender using a 4-pin Y-adapter cable to transmit and receive IR control signals and extend them to devices connected to the other end of the HDBaseT connection.
  3. USB 2.0 Port (Type-B): Connect directly to a standard USB host such as a PC or laptop to extend their USB functionality to all currently connected USB devices on both ends of the HDBaseT connection.
  4. CAT5e/6/7 OUT Port: Connect to a compatible HDBaseT receiver with a single Cat.6A/7 cable for extension of all data signals. PoH will also be supplied to a connected compatible PD receiver.
    Note: The PoH function is designed for powering compatible receiver units only. Non-PoH receivers will need their own power supply. Receivers from other brands may not be compatible.
  5. HDMI IN Port: Connect to HDMI source equipment such as a media player, game console, or set-top box.

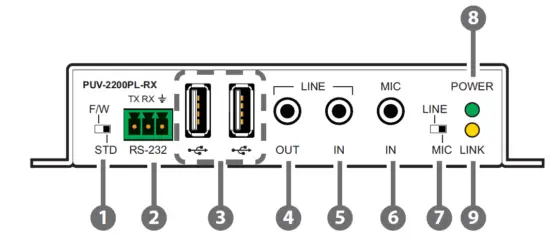

Front Panel (Receiver)CYP- PUV-2200PL-TX-RX -HDBaseT -Transmitter- 4

  1. F/W & STD Switch: Move this switch to toggle the RS-232 port’s functionality between firmware update and RS-232 bypass mode. The default setting is “STD” (RS-232 Bypass).
  2. RS-232 3-pin Terminal Block: Connect to a PC, laptop, or serial controllable device with a 3-pin adapter cable for the extension of RS-232 signals between both ends of the HDBaseT connection.
  3. USB 2.0 Ports (Type-A): Connect directly to standard USB devices such as a mouse, keyboard, or flash drive to extend their USB functionality to the USB (Type-B) host port on the connected transmitter.
  4. LINE IN Port: Connect to the analogue audio output of a device such as a media player or game console. Audio is sent to the analogue audio output on the connected compatible transmitter.
  5. LINE OUT Port: Connect to powered speakers or an amplifier for analogue audio output. Audio is sourced from the analogue audio input on the connected compatible transmitter.
  6. MIC IN Port: Connect to a standard unpowered microphone using a 3.5mm plug.
  7. LINE & MIC Switch: Move this switch to toggle the analogue audio source to send to the other end of the HDBaseT connection between LINE IN or MIC IN. The default setting is “LINE”.
  8. POWER LED: This LED will illuminate to indicate the unit is on and receiving power.
  9. LINK LED: This LED will illuminate solidly when a live connection with a compatible receiver is active.

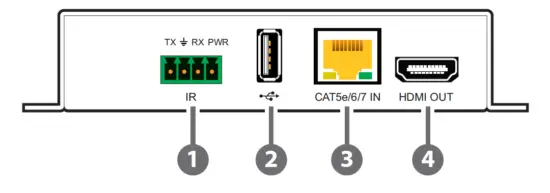

Rear Panel (Receiver)CYP- PUV-2200PL-TX-RX -HDBaseT -Transmitter- 5

  1. IR 4-pin Terminal Block (In/Out): Connect to both an IR Blaster and Extender using a 4-pin Y-adapter cable to transmit and receive IR control signals and extend them to devices connected to the other end of the HDBaseT connection.
  2. USB 2.0 Port (Type-A): Connect directly to a standard USB device such as a mouse, keyboard, or flash drive to extend their USB functionality to the USB (Type-B) host port on the connected transmitter.
  3. CAT5e/6/7 IN Port: Connect to a compatible HDBaseT transmitter with a single Cat.6A/7 cable for extension of all data signals. Power via PoH will also be supplied to this unit when connected to a compatible PSE transmitter.
    Note: A compatible PoH (PSE) transmitter is REQUIRED to power this receiver.
  4. HDMI OUT Port: Connect to an HDMI TV, monitor, or amplifier for digital video and audio output.

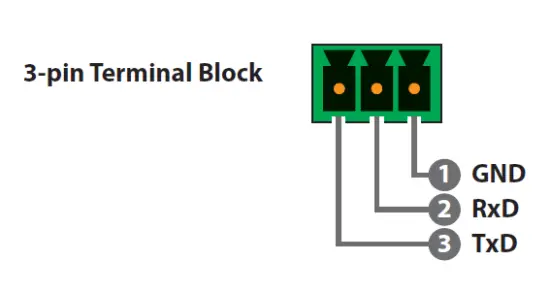

RS-232 PinoutCYP- PUV-2200PL-TX-RX -HDBaseT -Transmitter- 6

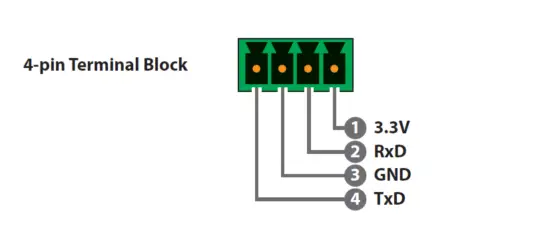

IR PinoutCYP- PUV-2200PL-TX-RX -HDBaseT -Transmitter- 7

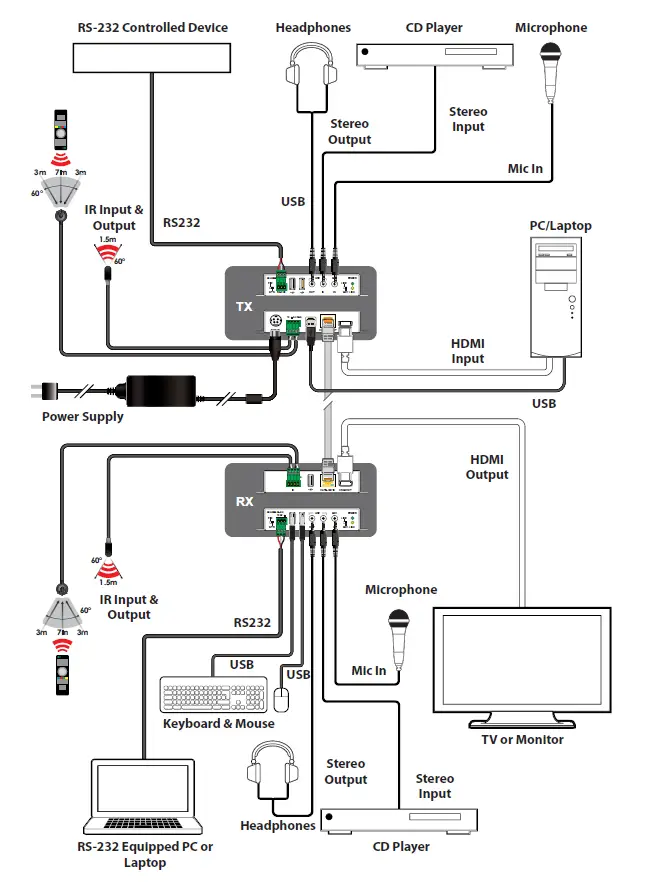

CONNECTION DIAGRAMCYP- PUV-2200PL-TX-RX -HDBaseT -Transmitter- 8

SPECIFICATIONS

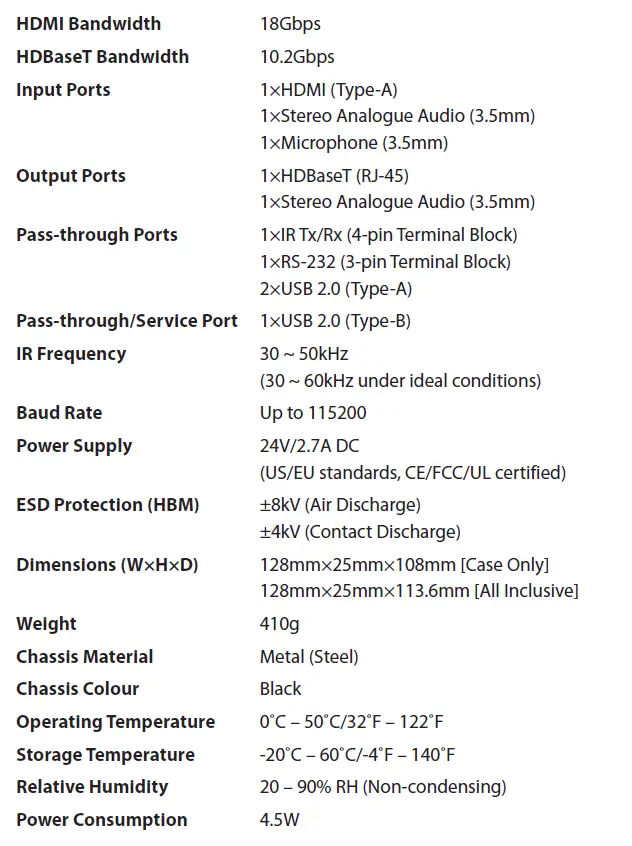

Technical Specifications (Transmitter)CYP- PUV-2200PL-TX-RX -HDBaseT -Transmitter- 9

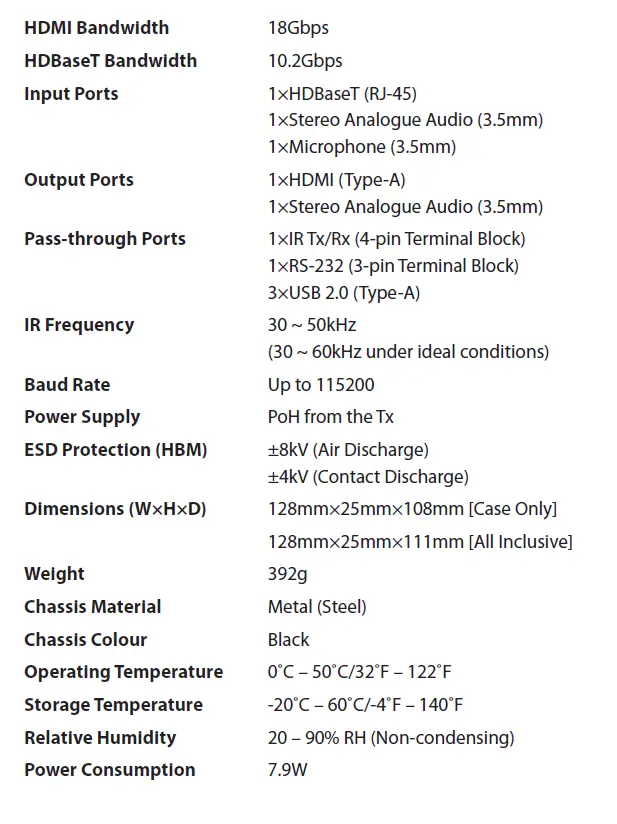

Technical Specifications (Receiver)CYP- PUV-2200PL-TX-RX -HDBaseT -Transmitter- 10

Video Specifications



Supported Resolutions (Hz)

InputOutput
HDMIHDBTHDMIHDBT
720×400p@70/85PPPP
640×480p@60/72/75/85PPPP
720×480i@60PPPP
720×480p@60PPPP
720×576i@50PPPP
720×576p@50PPPP
800×600p@56/60/72/75/85PPPP
848×480p@60PPPP
1024×768p@60/70/75/85PPPP
1152×864p@75PPPP
1280×720p@50/60PPPP
1280×768p@60/75/85PPPP
1280×800p@60/75/85PPPP
1280×960p@60/85PPPP
1280×1024p@60/75/85PPPP
1360×768p@60PPPP
1366×768p@60PPPP
1400×1050p@60PPPP
1440×900p@60/75PPPP
1600×900p@60RBPPPP
1600×1200p@60PPPP
1680×1050p@60PPPP
1920×1080i@50/60PPPP


Supported Resolutions (Hz)

InputOutput
HDMIHDBTHDMIHDBT
1920×1080p@24/25/30PPPP
1920×1080p@50/60PPPP
1920×1200p@60RBPPPP
2560×1440p@60RBPPPP
2560×1600p@60RBPPPP
2048×1080p@24/25/30PPPP
2048×1080p@50/60PPPP
3840×2160p@24/25/30PPPP
3840×2160p@50/60 (4:2:0)PPPP
3840×2160p@24, HDR10OOOO
3840×2160p@50/60 (4:2:0),HDR10

O



O



O



O

3840×2160p@50/60OOOO
4096×2160p@24/25/30PPPP
4096×2160p@50/60 (4:2:0)PPPP
4096×2160p@24, HDR10OOOO
4096×2160p@50/60 (4:2:0),HDR10

O



O



O



O

4096×2160p@50/60OOOO

Audio Specifications

Digital Audio

HDMI Input / Output
LPCM
Max Channels8 Channels
Sampling Rate (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192
Bitstream
Supported FormatsStandard & High-Definition

Analogue Audio

Analogue Input (Stereo)
Max Audio Level2Vrms
Impedance10kΩ
TypeUnbalanced
Analogue Input (Microphone)
Max Audio Level20Vrms
Impedance20kΩ
TypeUnbalanced
Analogue Output
Max Audio Level2Vrms
THD+N< −80dB@0dBFS 1kHz (A-wt)
SNR> 93dB@0dBFS
Frequency Response< ±0.5dB@20Hz~20kHz
Crosstalk< −71dB@10kHz
Impedance500Ω
TypeUnbalanced

Cable Specifications





Cable Length

1080p4K304K60


8-bit



12-bit

(4:4:4)

8-bit

(4:4:4)

8-bit

High Speed HDMI Cable
HDMI Input10m10m5mO
HDMI Output10m10m5mO
Ethernet Cable
Cat.5e/660m35mO
Cat.6A/770m40mO

Bandwidth Category Examples: 1080p (FHD Video)

  • Up to 1080p@60Hz, 12-bit colour
  • Data rates lower than 5.3Gbps or below 225MHz TMDS clock

4K30 (4K UHD Video)

  • 4K@24/25/30Hz & 4K@50/60Hz (4:2:0), 8-bit colour
  • Data rates higher than 5.3Gbps or above 225MHz TMDS clock but below 10.2Gbps

4K60 (4K UHD+ Video)

  • 4K@50/60Hz (4:4:4, 8-bit)
  • 4K@50/60Hz (4:2:0, 10-bit HDR)
  • Data rates higher than 10.2Gbps

HDBaseT Features

HDBaseT Feature SetTransmitter
Video & Audio ExtensionSupported
LAN ExtensionUnsupported
Send power to ReceiverSupported (PoH)
Accept power from ReceiverUnsupported
IR ExtensionSupported
RS-232 ExtensionSupported
USB 2.0 ExtensionSupported
HDBaseT Feature SetReceiver
Video & Audio ExtensionSupported
LAN ExtensionUnsupported
Send power to TransmitterUnsupported
Accept power from TransmitterSupported (PoH)
IR ExtensionSupported
RS-232 ExtensionSupported
USB 2.0 ExtensionSupported

ACRONYMS

ACRONYMCOMPLETE TERM
Cat.5eEnhanced Category 5 cable
Cat.6Category 6 cable
Cat.6AAugmented Category 6 cable
Cat.7Category 7 cable
CECConsumer Electronics Control
dBDecibel
DVIDigital Visual Interface
GbpsGigabits per second
HDBTHDBaseT
HDCPHigh-bandwidth Digital Content Protection
HDMIHigh-Definition Multimedia Interface
HDRHigh Dynamic Range
IPInternet Protocol
IRInfrared
kHzKilohertz
KVMKeyboard/Video/Mouse
LANLocal Area Network
LEDLight-Emitting Diode
LPCMLinear Pulse-Code Modulation
MHzMegahertz
PDPowered Device
PoHPower over HDBaseT
PSEPower Sourcing Equipment
SNRSignal-to-Noise Ratio
ACRONYMCOMPLETE TERM
TCPTransmission Control Protocol
THD+NTotal Harmonic Distortion plus Noise
TMDSTransition-Minimised Differential Signaling
4K UHD4K Ultra-High-Definition (10.2Gbps max)
4K UHD+4K Ultra-High-Definition (18Gbps max)
USBUniversal Serial Bus
VGAVideo Graphics Array
WUXGA (RB)Widescreen Ultra Extended Graphics Array (Reduced Blanking)
XGAExtended Graphics Array
ΩOhm
