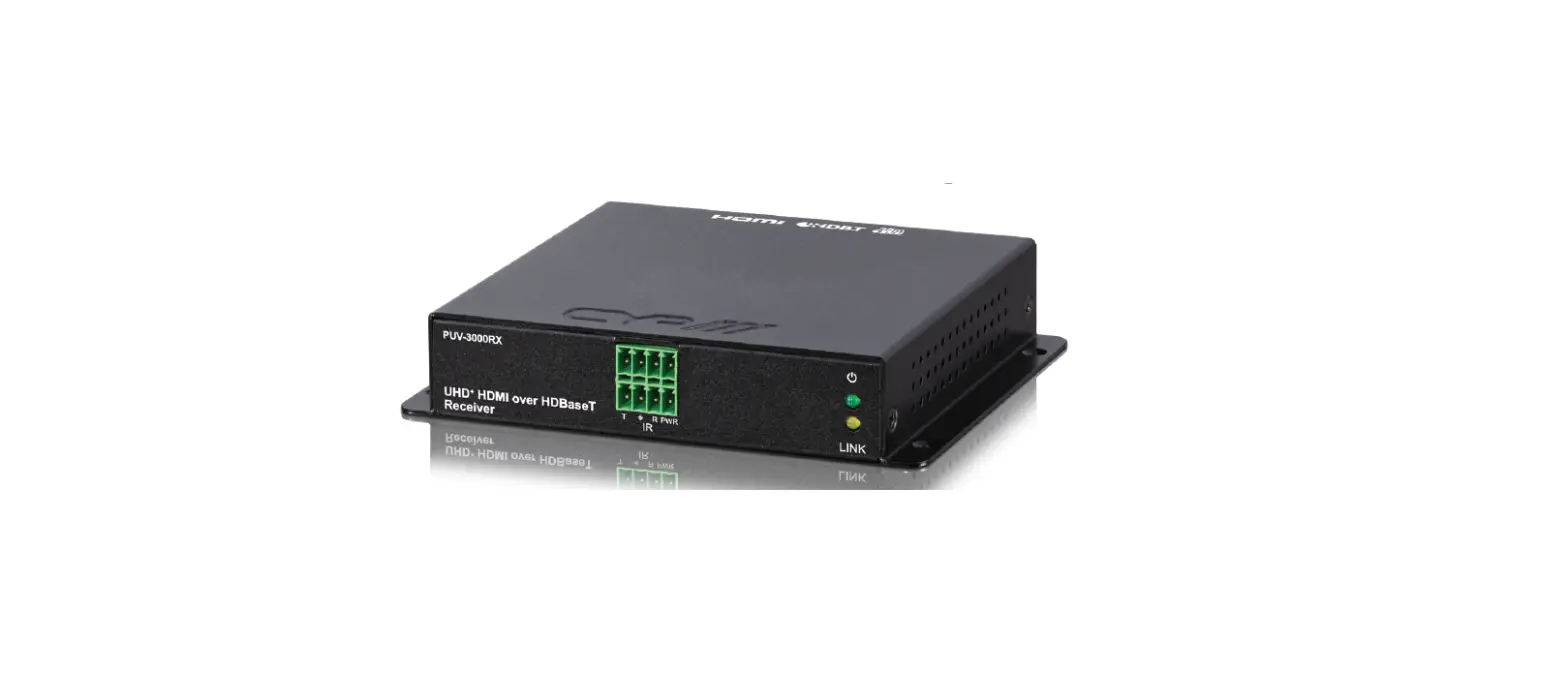

Cyp Puv-3000rx Uhd+ Hdmi Over Hdbaset 3.0 Receiver User Manual

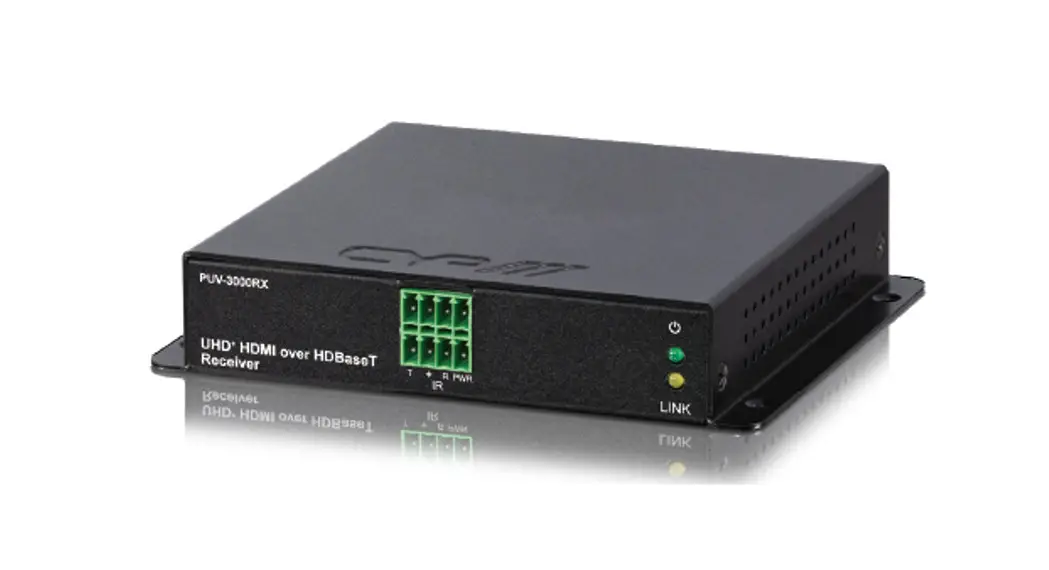

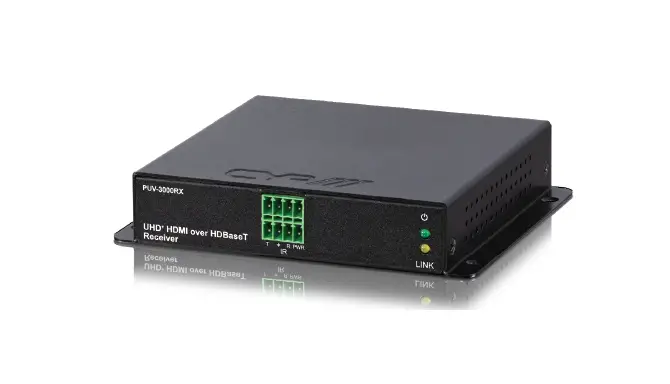

CYP PUV-3000RX UHD+ HDMI Over HDBaseT 3.0 Receiver

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment:

• Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any openings or empty slots in the unit, as you may damage parts inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if it is damaged.
• Do not allow anything to rest on the power cabling or allow any weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or openings in the unit housing that provide ventilation and allow for sufficient space for air to circulate around the unit.
• Please completely disconnect the power when the unit is not in use to avoid wasting electricity.

VERSION HISTORY

INTRODUCTION

This 4K UHD+ HDMI over HDBaseT receiver uses HDBaseT 3.0, the newest generation of HDBaseT technology, and when combined with a compatible transmitter is the perfect solution for extending full bandwidth (18Gbps) HDMI 2.0, 4K@60Hz (4:4:4, 8-bit) video with HD audio via a single run of Cat.6A/7 cable over distances of up to 40 meters. Multiple control and data signals may also be extended along with the audio and video, including bi-directional IR and RS-232. This receiver is ideal for use in any video extension scenario, but it excels when latency-free, uncompressed, high resolution video is critical, such as medical installations, live conferences, and education.

APPLICATIONS

Household entertainment sharing and control Lecture hall/classroom display and control Meeting room presentation and control

PACKAGE CONTENTS

• 1× UHD+ HDMI over HDBaseT Receiver
• 1× 8-pin Terminal Block
• 1× Operation Manual

SYSTEM REQUIREMENTS

• A compatible HDBaseT transmitter with PoH (PSE) support is required.
• HDMI receiving equipment such as an HDTV, monitor, or audio amplifier.
• The use of Premium High Speed HDMI cables, and industry-standard Cat.6A or Cat.7 Ethernet cable is highly recommended.

FEATURES

• HDMI 2.0 and DVI 1.0 compatible
• HDCP 2.2 and HDCP 1.x compliant
• HDBaseT 3.0 compliant (Backwards compatible with HDBaseT 2.0/1.0) 1 HDMI input, 1 HDMI output, and 1 HDBaseT input
• Supports up to 4K UHD+ (18Gbps, 4K@60Hz 4:4:4, 8-bit) video input and output over both HDMI and HDBaseT
• Supports Deep Colour input and output up to 12-bit
• Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output Supports CEC bypass
• HDBaseT extends video, audio and data over a single Cat.6A/7 cable and can reach distances up to 40m/131ft
• HDBaseT feature support: HD Video and Audio, PoH (PD), and Control (bi-directional IR/RS-232 pass-through)
• Powered directly via PoH from the connected transmitter

OPERATION CONTROLS AND FUNCTIONS

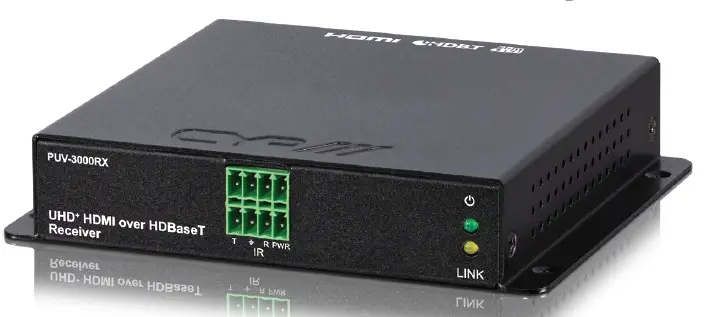

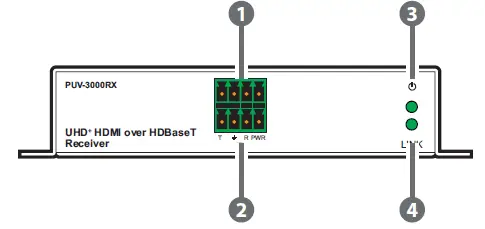

Front Panel

1. RS-232 4-pin Terminal Block: Connect to a PC, laptop, or serial 1 RS-232 4-pin Terminal Block: Connect to a PC, laptop, or serial
2. IR 4-pin Terminal Block (In/Out): Connect to both an IR Blaster and Extender using a 4-pin Y-adapter cable to transmit and receive IR control signals and extend them to devices connected to the other end of the HDBaseT connection.
3. Power LED: This LED will illuminate to indicate the unit is on and receiving power.
4. LINK LED: This LED will illuminate solidly when a live connection with a compatible receiver is active.

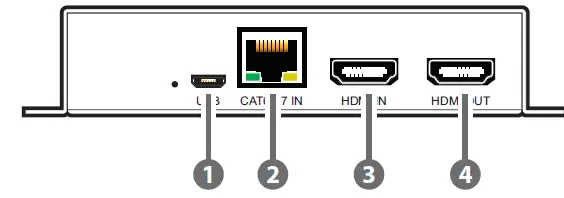

Rear Panel

1. USB Port (Micro-B): This port is reserved for firmware update use only.
2. CAT6A/7 IN Port: Connect to a compatible HDBaseT transmitter with a single Cat.6A/7 cable for extension of all data signals. Power via PoH will also be supplied to this unit when connected to a compatible PSE transmitter.
   Note: A compatible PoH (PSE) transmitter is REQUIRED to power this receiver. Transmitters from other brands may not be compatible.
3. HDMI IN Port: Connect to HDMI source equipment such as a media player, game console, or set-top box.
   Note: If this HDMI input is connected, its video will automatically be output over the local HDMI output, overriding any current HDBaseT video source.
4. HDMI OUT port: Connect to an HDMI TV, monitor, or amplifier for digital video and audio output.

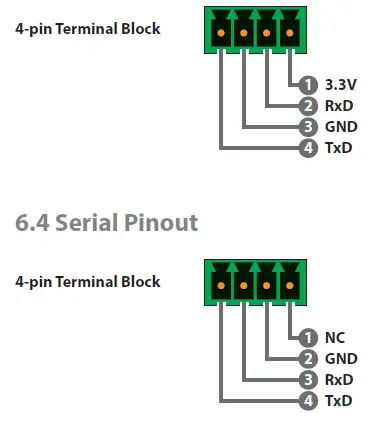

IR Cable Pinouts

CONNECTION DIAGRAM

SPECIFICATIONS

Technical Specifications

• HDMI Bandwidth 18Gbps
• HDBaseT Bandwidth 18Gbps
• Input Ports 1×HDBaseT (RJ-45) 1×HDMI (Type-A)
• Output Ports 1×HDMI (Type-A)
• Pass-through Ports 1×IR In/Out (4-pin Terminal Block) 1×RS-232 (4-pin Terminal Block)
• Pass-through/Service Port 1×USB 2.0 (Micro-B)
• IR Frequency 30 ~ 50kHz (30 ~ 60kHz under ideal conditions)
• Baud Rate Up to 115200
• Power Supply PoH (from Tx)
• ESD Protection (HBM) ±8kV (Air Discharge) ±4kV (Contact Discharge)
• Dimensions (W×H×D) 128mm×25mm×108mm [Case Only]
• 128mm×25mm×109.5mm [All Inclusive]
• Weight 390g
• Chassis Material Metal (Steel)
• Chassis Colour Black
• Operating Temperature 0˚C – 50˚C/32˚F – 122˚F
• Storage Temperature -20˚C – 60˚C/-4˚F – 140˚F
• Relative Humidity 20 – 90% RH (Non-condensing)
• Power Consumption 14W

Video Specifications

Audio Specifications
Digital Audio

Cable Specifications

Bandwidth Category Examples: 1080p (FHD Video)

• Up to 1080p@60Hz, 12-bit colour
• Data rates lower than 5.3Gbps or below 225MHz TMDS clock
  4K30 (4K UHD Video)
• 4K@24/25/30Hz & 4K@50/60Hz (4:2:0), 8-bit colour
• Data rates higher than 5.3Gbps or above 225MHz TMDS clock but below 10.2Gbps
  4K60 (4K UHD+ Video)
• 4K@50/60Hz (4:4:4, 8-bit)
• 4K@50/60Hz (4:2:0, 10-bit HDR)
• Data rates higher than 10.2Gbps

HDBaseT Features

ACRONYMS
