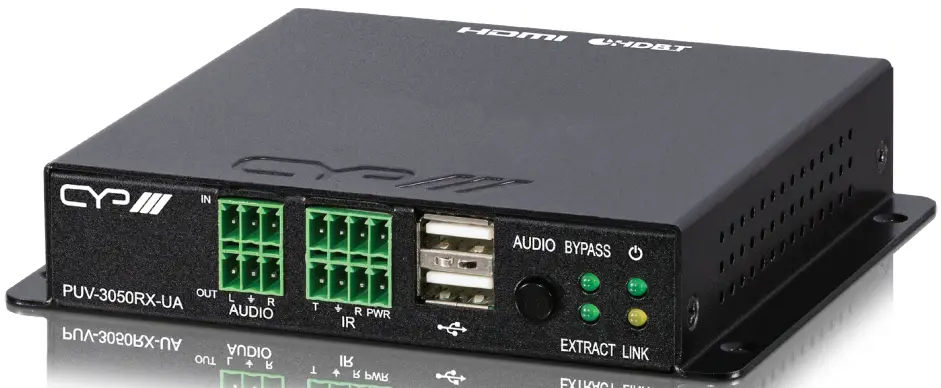

CYP III PUV-3050RX-UA UHDplus HDMI HDBaseT3 Receiver with Analogue Audio and USB Instruction Manual

INTRODUCTION

This 4K UHD+ HDMI over HDBaseT receiver uses HDBaseT 3.0, the newest generation of HDBaseT technology, and is the perfect solution for extending full bandwidth (18Gbps) HDMI 2.0, 4K@60Hz (4:4:4, 8-bit) video with HD audio via a single run of Cat.6A/7 cable over distances of up to 40 meters. Multiple control and data signals may also be transmitted along with the audio and video, including IR, RS-232, and USB 2.0. This receiver is ideal for use in any video extension scenario, especially when latencyfree, uncompressed, high resolution video is critical, such as medical installations, live conferences, and education.
When used with its matched transmitter, 2 micro USB host connections are available (1 on the transmitter, 1 on the receiver) for connecting a single USB host (such as a laptop or PC) to devices on up to 4 USB 2.0 (Type-A) ports (2 on the transmitter, 2 on the receiver) forming a highly flexible KVM extension configuration.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment:

• Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any openings or empty slots in the unit, as you may damage parts inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if it is damaged.
• Do not allow anything to rest on the power cabling or allow any weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or openings in the unit housing that provide ventilation and allow for sufficient space for air to circulate around the unit.
• Please completely disconnect the power when the unit is not in use to avoid wasting electricity

VERSION HISTORY

APPLICATIONS

• Household entertainment sharing and control
• Lecture hall/classroom display and control
• Meeting room presentation and control

PACKAGE CONTENTS

• 1× UHD+ HDMI over HD BaseT Receiver with USB KVM
• 2× 3-pin Terminal Block
• 1× 8-pin Terminal Block
• 1× Operation Manual

SYSTEM REQUIREMENTS

• A compatible HD BaseT transmitter with PoH (PSE) support is required.
• HDMI receiving equipment such as an HDTV, monitor, or audio amplifier.
• The use of Premium High Speed HDMI cables, and industry standard Cat.6A or Cat.7 Ethernet cable is highly recommended.

FEATURES

• HDMI 2.0 and DVI 1.0 compatible
• HDCP 2.2 and HDCP 1.x compliant
• HDBaseT 3.0 compliant (Backwards compatible with HDBaseT 2.0/1.0)
• 1 HDMI input, 1 HDMI output, and 1 HDBaseT input
• Supports up to 4K UHD+ (18Gbps, 4K@60Hz 4:4:4, 8-bit) video input and output over both HDMI and HDBaseT
• Supports Deep Colour input and output up to 12-bit
• Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output
• Supports CEC bypass/extract
• HD Base T extends video, audio and data over a single Cat.6A/7 cable and can reach distances up to 40m/131ft
• HD Base T feature support: HD Video and Audio, PoH (PD), Bi-directional audio (analogue), and Control (bi-directional
• USB/IR/RS-232 passthrough)
• 2 USB 2.0 Type-A device ports and 1 Micro USB host port
• Selectable HDMI audio extraction/analogue audio bypass functionality when paired with a compatible transmitter
• Powered directly via PoH from the connected transmitter.

OPERATION CONTROLS AND FUNCTIONS

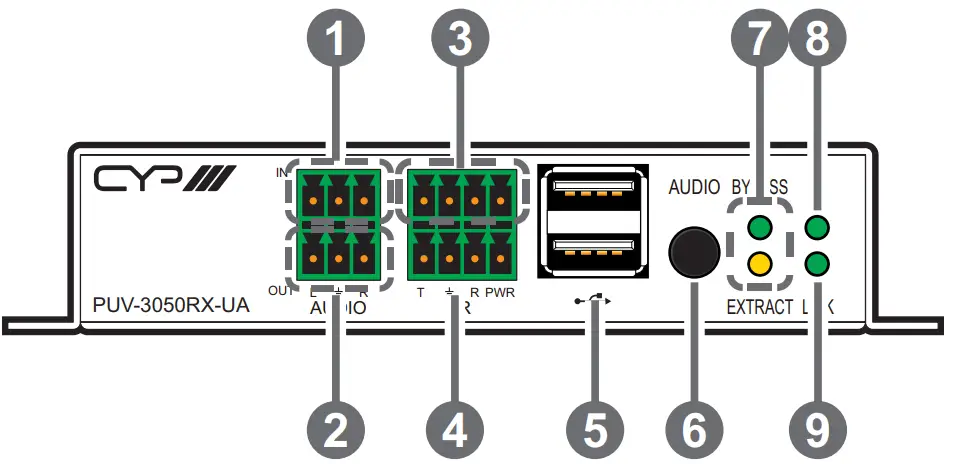

Front Panel

1. AUDIO IN 3-pin Terminal Block: Connect to the analogue audio output of a device such as a media player or game console using a 3-pin adapter cable. Audio is sent to the analogue audio output on the connected compatible receiver.
2. AUDIO OUT 3-pin Terminal Block: Connect to powered speakers or an amplifier for analogue audio output using a 3-pin adapter cable. Audio is sourced from the analogue audio input on the connected compatible receiver.
3. RS-232 4-pin Terminal Block: Connect to a PC, laptop, or serial controllable device with a 4-pin adapter cable for the extension of RS-232 signals between both ends of the HDBaseT connection.
4. IR 4-pin Terminal Block (In/Out): Connect to both an IR Blaster and Extender using a 4-pin Y-adapter cable to transmit and receive IR control signals and extend them to devices connected to the other end of the HDBaseT connection.
5. USB 2.0 Ports (Type-A): Connect directly to standard USB devices such as a mouse, keyboard, or flash drive to extend their USB functionality to the currently active Micro-USB host port.
6. AUDIO Button: Press this button to toggle the connected transmitter’s analogue audio stream source between the analogue
   audio input (bypass) and the HDMI input’s audio (extract).
   Note: HDMI audio extraction is only available with LPCM 2.0 sources. This feature requires connection to a fully compatible transmitter.
7. BYPASS & EXTRACT LEDs: These LEDs will illuminate to indicate if the unit is in audio bypass or extract mode.
8. POWER LED: This LED will illuminate to indicate the unit is on and receiving power.
9. LINK LED: This LED will illuminate solidly when a live connection with a compatible transmitter is active.

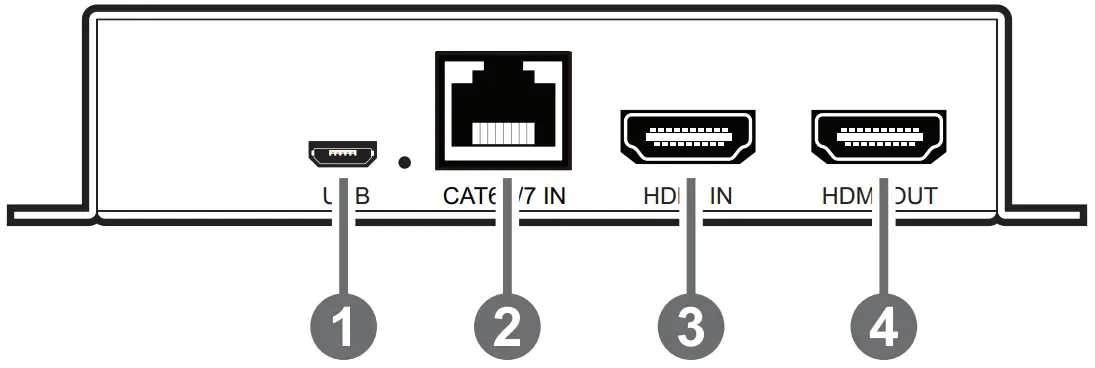

Rear Panel

1. USB 2.0 Port (Micro-B) & LED: Connect directly to a standard USB host such as a PC or laptop to extend their USB functionality to all currently connected USB devices on both ends of the HD BaseT connection. The LED will illuminate solidly to indicate when the USB port is active.
   Note: If USB hosts are connected to both the transmitter and receiver at the same time, only the most recently connected host will be active.
2. CAT6A/7 IN Port: Connect to a compatible HDBaseT transmitter with a single Cat.6A/7 cable for extension of all data signals. Power via PoH will also be supplied to this unit when connected to a compatible PSE transmitter.
   Note: A compatible PoH (PSE) transmitter is REQUIRED to power this receiver.
3. HDMI IN Port: Connect to HDMI source equipment such as a media player, game console, or set-top box.
   Note: If this HDMI input is connected, its video will automatically be output over the local HDMI output, overriding any current HD Base T video source.
   4 HDMI OUT port: Connect to an HDMI TV, monitor, or amplifier for digital video and audio output.

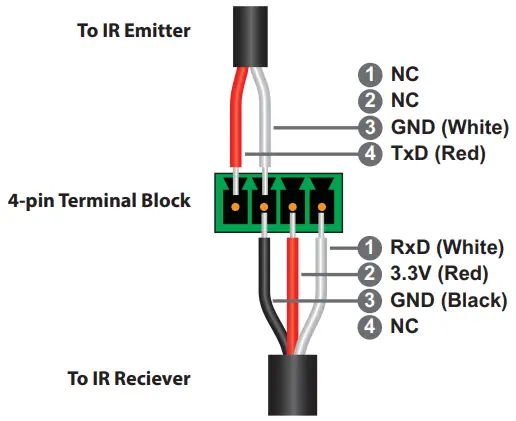

IR Cable Pinouts

IR Blaster + IR Extender

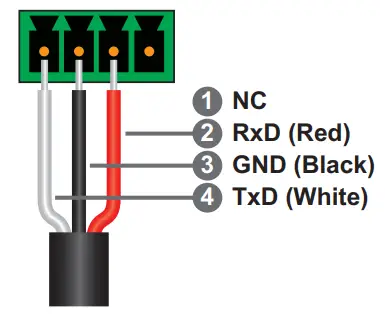

Serial Pinout

Audio Pinouts

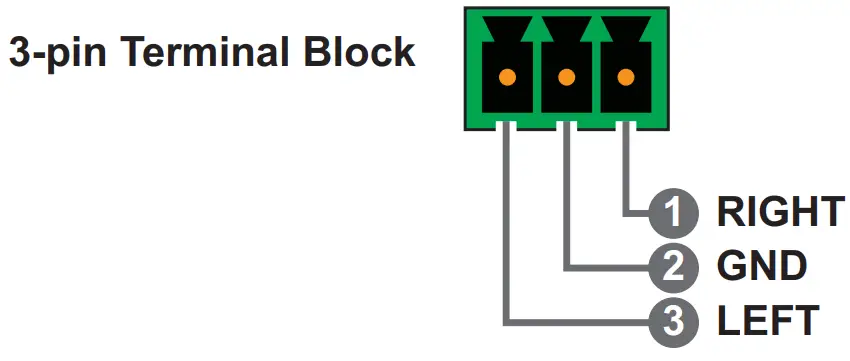

Stereo Audio Input

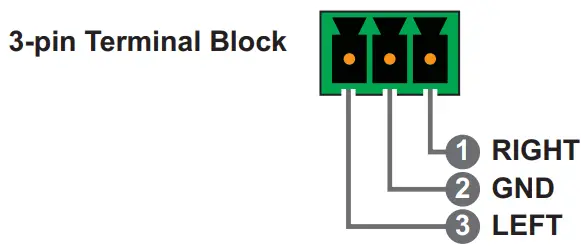

Stereo Audio Output

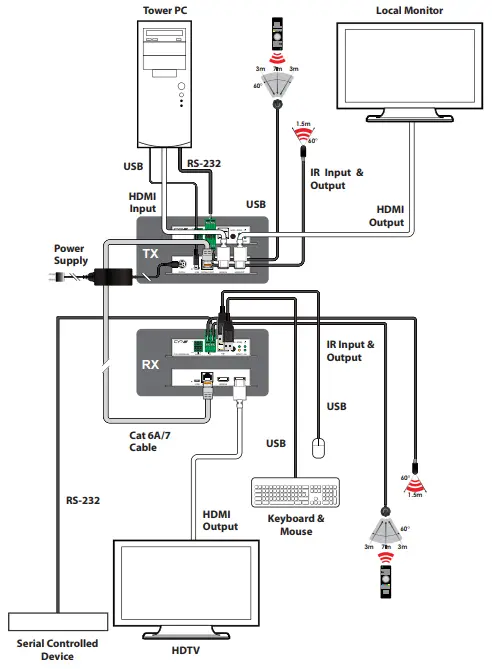

CONNECTION DIAGRAM

SPECIFICATIONS

Technical Specifications

• HD MI Bandwidth: 18Gbps
• HD Base T Bandwidth: 18Gbps
• Input Ports: 1×HDBaseT (RJ-45) 1×HDMI (Type-A) 1×Analogue Stereo (3-pin Terminal Block)
• Output Ports: 1×HDMI (Type-A) 1×Analogue Stereo (3-pin Terminal Block)
• Pass-through Ports: 1×IR In/Out (4-pin Terminal Block) 1×RS-232 (4-pin Terminal Block) 2×USB 2.0 (Type-A)
• Pass-through/Service Port: 1×USB 2.0 (Micro-B)
• IR Frequency: 30 ~ 50kHz (30 ~ 60kHz under ideal conditions)
• Baud Rate: Up to 115200
• Power Supply: PoH (from Tx)
• ESD Protection (HBM): ±8kV (Air Discharge) ±4kV (Contact Discharge)
• Dimensions (W×H×D): 128mm×25mm×108mm [Case Only] 128mm×25mm×109.5mm [All Inclusive]
• Weight: 390g
• Chassis Material: Metal (Steel)
• Chassis Colour: Black
• Operating Temperature: 0˚C – 50˚C/32˚F – 122˚F
• Storage Temperature: -20˚C – 60˚C/-4˚F – 140˚F
• Relative Humidity: 20 – 90% RH (Non-condensing)
• Power Consumption: 14W

Video Specifications

Supported Resolutions (Hz)	Input		Output
	HDMI	HDBT	HDMI
720×400p@70/85
640×480p@60/72/75/85
720×480i@60
720×480p@60
720×576i@50
720×576p@50
800×600p@56/60/72/75/85
848×480p@60
1024×768p@60/70/75/85
1152×864p@75
1280×720p@50/60
1280×768p@60/75/85
1280×800p@60/75/85
1280×960p@60/85
1280×1024p@60/75/85
1360×768p@60
1366×768p@60
1400×1050p@60
1440×900p@60/75
1600×900p@60RB
1600×1200p@60
1680×1050p@60
1920×1080i@50/60

1920×1080p@24/25/30
1920×1080p@50/60
1920×1200p@60RB
2560×1440p@60RB
2560×1600p@60RB
2048×1080p@24/25/30
2048×1080p@50/60
3840×2160p@24/25/30
3840×2160p@50/60 (4:2:0)
3840×2160p@24, HDR10
3840×2160p@50/60 (4:2:0), HDR1
3840×2160p@50/60
4096×2160p@24/25/30
4096×2160p@50/60 (4:2:0)
4096×2160p@24, HDR10
4096×2160p@50/60 (4:2:0), HDR10
4096×2160p@50/60

Audio Specifications

Digital Audio

Analogue Audio

Cable Specifications

Bandwidth Category Examples:

• Up to 1080p@60Hz, 12-bit colour
• Data rates lower than 5.3Gbps or below 225MHz TMDS clock

4K30 (4K UHD Video)

• 4K@24/25/30Hz & 4K@50/60Hz (4:2:0), 8-bit colour
• Data rates higher than 5.3Gbps or above 225MHz TMDS clock but below 10.2Gbps

4K60 (4K UHD+ Video)

• 4K@50/60Hz (4:4:4, 8-bit)
• 4K@50/60Hz (4:2:0, 10-bit HDR)
• Data rates higher than 10.2Gbps

HD Base T Features

ACRONYMS

DISCLAIMERS

The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document. CYP (UK) Ltd also makes no commitment to update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document and/or product at any time and without notice.

COPYRIGHT NOTICE

No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or any of its part translated into any language or computer file, in any form or by any means—electronic, mechanical, magnetic, optical, chemical, manual, or otherwise—without express written permission and consent from CYP (UK) Ltd.
© Copyright 2021 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be trademarks of the companies with which they are associated.

CUSTOMER SUPPORT

CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue,
Shepperton, Middlesex, TW17 8BA
Tel: +44 (0) 20 3137 9180
Fax: +44 (0) 20 3137 6279
Email: [email protected]
www.cypeurope.com
RDV1.1
