CYP PUV-3000TX UHD+ HDMI over HDBaseT 3.0 Transmitter User Manual

DISCLAIMERS
The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document. CYP (UK) Ltd also makes no commitment to update or to keep current the information contained in this document. CYP (UK) Ltd reserves the right to make improvements to this document and/or product at any time and without notice.

COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or any of its part translated into any language or computer file, in any form or by any means—electronic, mechanical, magnetic, optical, chemical, manual, or otherwise—without express written permission and consent from CYP (UK) Ltd.
© Copyright 2021 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1

TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment:

• Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this product near water.
•  Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any openings or empty slots in the unit, as you may damage parts inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if it is damaged.
• Do not allow anything to rest on the power cabling or allow any weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or openings in the unit housing that provide ventilation and allow for sufficient space for air to circulate around the unit.
• Please completely disconnect the power when the unit is not in use to avoid wasting electricity.

VERSION HISTORY

INTRODUCTION
This 4K UHD+ HDMI over HD Baset transmitter uses HD Baset 3.0, the newest generation of HD Baset  technology, and when combined with a compatible receiver is the perfect solution for extending full bandwidth (18Gbps) HDMI 2.0, 4K@60Hz (4:4:4, 8-bit) video with HD audio via a single run of Cat.6A/7 cable over distances of up to 40 meters. Multiple control and data signals may also be transmitted along with the audio and video, including bi-directional IR and RS-232.This transmitter is ideal for use in any video extension scenario, but it excels when latency-free, uncompressed, high resolution video is critical, such as medical installations, live conferences, and education.

APPLICATIONS

• Household entertainment sharing and control
• Lecture hall/classroom display and control
• Meeting room presentation and control

PACKAGE CONTENTS

• 1× UHD+ HDMI over HDBaseT Transmitter 1× 24V/2.7A DC Power Adapter
• 1× 8-pin Terminal Block
• 1× Operation Manual

SYSTEM REQUIREMENTS

• HDMI source equipment such a media player, video game console, or set-top box.
• HDMI receiving equipment such as an HDTV, monitor, or audio amplifier.
• A compatible HDBaseT receiver with PoH (PD) support is recommended.
• The use of Premium High Speed HDMI cables, and industry standard Cat.6A or Cat.7 Ethernet cable is highly recommended.

FEATURES

• HDMI 2.0 and DVI 1.0 compatible
• HDCP 2.2 and HDCP 1.x compliant
• HDBaseT 3.0 compliant (Backwards compatible with HDBaseT 2.0/1.0) 1 HDMI input, 1 HDMI output, and 1 HDBaseT output
• Supports up to 4K UHD+ (18Gbps, 4K@60Hz 4:4:4, 8-bit) video input and output over both HDMI and HDBaseT
• Supports Deep input and output up to 12-bit
• Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output Supports CEC bypass
• HDBaseT extends video, audio and data over a single Cat.6A/7 cable and can reach distances up to 40m/131ft
• HDBaseT feature support: HD Video and Audio, PoH (PSE), and Control (bi-directional IR/RS-232 pass-through)
• HDMI output functions as a local monitor
• Supplies PoH to the connected receiver

OPERATION CONTROLS AND FUNCTIONS

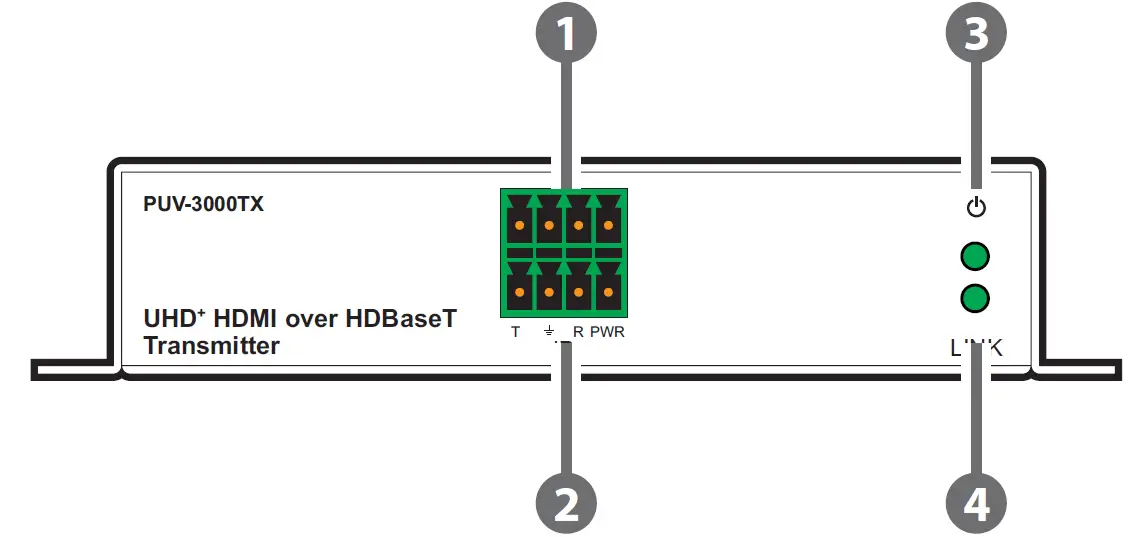

 Front Panel

1. RS-232 4-pin Terminal Block: Connect to a PC, laptop, or serial controllable device with a 4-pin adapter cable for the extension of RS-232 signals between both ends of the HDBaseT connection.
2. IR 4-pin Terminal Block (In/Out): Connect to both an IR Blaster and Extender using a 4-pin Y-adapter cable to transmit and receive IR
   control signals and extend them to devices connected to the other end of the HDBaseT connection.
3. Power LED: This LED will illuminate to indicate the unit is on and receiving power.
4. LINK LED: This LED will illuminate solidly when a live connection with a compatible receiver is active.

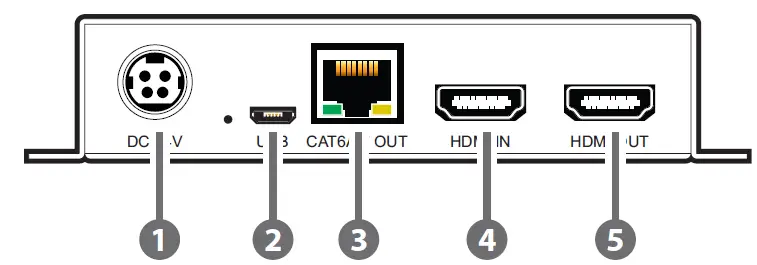

Rear Panel

1.  DC 24V Port: Plug the 24V DC power adapter into this port and connect it to an AC wall outlet for power.
2.  USB Port (Micro-B): This port is reserved for firmware update use only.
3.  CAT6A/7 OUT Port: Connect to a compatible HDBaseT receiver with a single Cat.6A/7 cable for extension of all data signals. PoH will also be
   supplied to a connected compatible PD receiver.
   • Note: The PoH function is designed for powering compatible receiver units only. Non-PoH receivers will need their own power supply. Receivers from other brands may not be compatible.
4.  HDMI IN Port: Connect to HDMI source equipment such as a media player, game console, or set-top box.
5. HDMI OUT port: Connect to an HDMI TV, monitor, or amplifier for digital video and audio output.

IR Cable Pinouts
IR Blaster + IR Extender
4-pin Terminal Block

Serial Pinout
4-pin Terminal Block

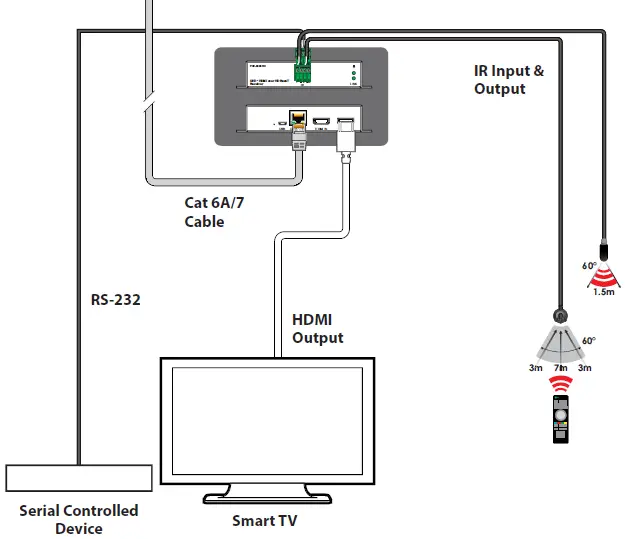

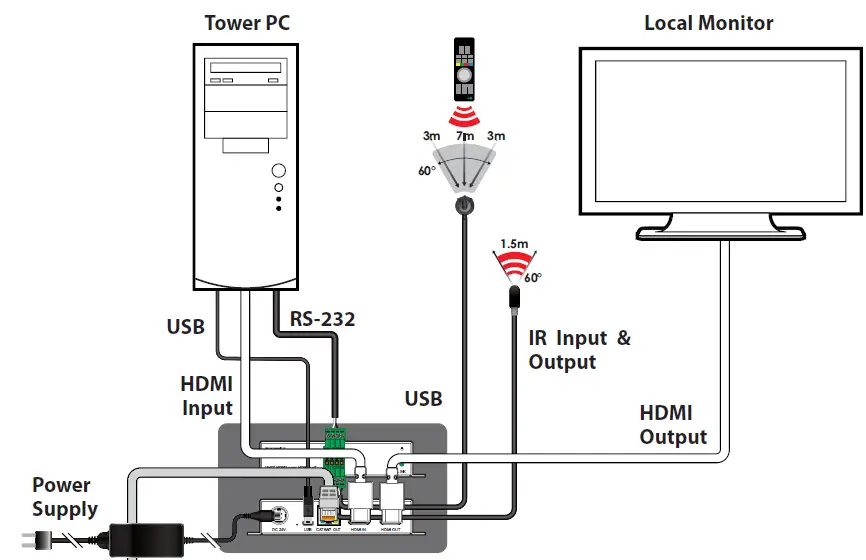

CONNECTION DIAGRAM

SPECIFICATIONS

Technical Specifications

• HDMI Bandwidth            18Gbps
• HDBaseT Bandwidth       18Gbps
• Input Ports                       1×HDMI (Type-A)
• Output Ports                    1×HDBaseT (RJ-45) 1×HDMI (Type-A)
• Pass-through Ports           1×IR In/Out (4-pin Terminal Block) 1×RS-232 (4-pin Terminal Block)
• Pass-through/Service Port    1×USB 2.0 (Micro-B)
• IR Frequency                       30 ~ 50kHz (30 ~ 60kHz under ideal conditions)
• Baud Rate                             Up to 115200
• Power Supply                       24V/2.7A DC
• (US/EU standards,             CE/FCC/UL certified)
• ESD Protection (HBM)        ±8kV (Air Discharge), ±4kV (Contact Discharge)
• Dimensions (W×H×D)      128mm×25mm×108mm [Case Only], 128mm×25mm×112.5mm [All Inclusive]
• Weight                                400g
• Chassis Material                 Metal (Steel)
• Chassis Color                   Black
• Operating Temperature      0˚C – 50˚C/32˚F – 122˚F
• Storage Temperature        -20˚C – 60˚C/-4˚F – 140˚F
• Relative Humidity             20 – 90% RH (Non-condensing)
• Power Consumption         12

Video Specifications

Audio Specifications

Digital Audio

Cable Specifications

Bandwidth Category Examples:
1080p (FHD Video)

• Up to 1080p@60Hz, 12-bit color
• Data rates lower than 5.3Gbps or below 225MHz TMDS clock 4K30 (4K UHD Video)
•  4K@24/25/30Hz & 4K@50/60Hz (4:2:0), 8-bit color
•  Data rates higher than 5.3Gbps or above 225MHz TMDS clock but below 10.2Gbps 4K60 (4K UHD+ Video)
• 4K@50/60Hz (4:4:4, 8-bit)
• 4K@50/60Hz (4:2:0, 10-bit HDR)
•  Data rates higher than 10.2Gbps

HDBaseT Features

ACRONYMS
