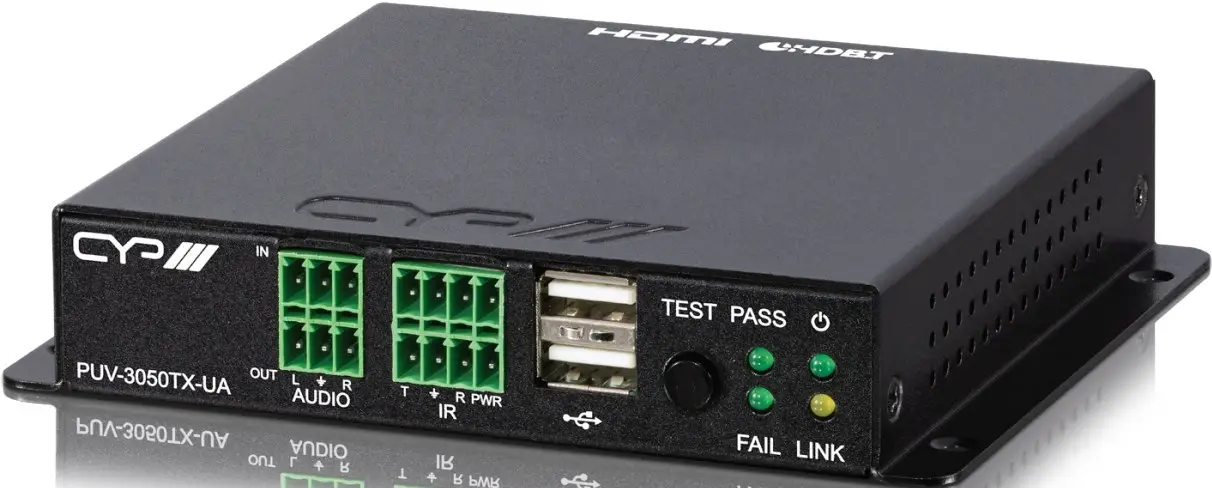

CYP PUV-3050TX-UA UHD+ HDMI over HDBaseT3 Transmitter with Analogue Audio I/O and USB 2.0 User Manual

INTRODUCTION

This 4K UHD+ HDMI over HDBaseT transmitter uses HDBaseT 3.0, the newest generation of HDBaseT technology, and is the perfect solution for extending full bandwidth (18Gbps) HDMI 2.0, 4K@60Hz (4:4:4, 8-bit) video with HD audio via a single run of Cat.6A/7 cable over distances of up to 40 meters. Multiple control and data signals may also be transmitted along with the audio and video, including IR, RS-232, USB 2.0. This transmitter is ideal for use in any video extension scenario, especially when latencyfree, uncompressed, high resolution video is critical, such as medical installations, live conferences, and education. When used with its matched receiver, 2 micro USB host connections are available (1 on the transmitter, 1 on the receiver) for connecting a single USB host (such as a laptop or PC) to devices on up to 4 USB 2.0 (Type-A) ports (2 on the transmitter, 2 on the receiver) forming a highly flexible KVM extension configuration.

APPLICATIONS

• Household entertainment sharing and control
• Lecture hall/classroom display and control
• Meeting room presentation and contro

PACKAGE CONTENTS

• 1× UHD+ HDMI over HDBaseT Transmitter with USB KVM
• 1× 24V/2.7A DC Power Adapter
• 2× 3-pin Terminal Block
• 1× 8-pin Terminal Block
• 1× Operation Manual

SYSTEM REQUIREMENTS

• HDMI source equipment such as media player, video game console, or set-top box.
• HDMI receiving equipment such as an HDTV, monitor, or audio amplifier.
• A compatible HDBaseT receiver with PoH (PD) support is recommended.
• The use of Premium High Speed HDMI cables, and industry standard Cat.6A or Cat.7 Ethernet cable is highly recommended.

FEATURES

• HDMI 2.0 and DVI 1.0 compatible
• HDCP 2.2 and HDCP 1.x compliant
• HDBaseT 3.0 compliant (Backwards compatible with HDBaseT 2.0/1.0)
• 1 HDMI input, 1 HDMI output, and 1 HDBaseT output
• Supports up to 4K UHD+ (18Gbps, 4K@60Hz 4:4:4, 8-bit) video input and output over both HDMI and HDBaseT
• Supports Deep Colour input and output up to 12-bit
• Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output
• Supports CEC bypass
• HDBaseT extends video, audio and data over a single Cat.6A/7 cable and can reach distances up to 40m/131ft
• HDBaseT feature support: HD Video and Audio, PoH (PSE), Bidirectional audio (analogue), and Control (bi-directional USB/IR/RS 232 pass-through)
• 2 USB 2.0 Type-A device ports and 1 Micro USB host port
• Selectable HDMI audio extraction/analogue audio bypass functionality when paired with a compatible receiver
• HDMI output functions as a local monitor
• Supplies PoH to the connected receiver

OPERATION CONTROLS AND FUNCTIONS

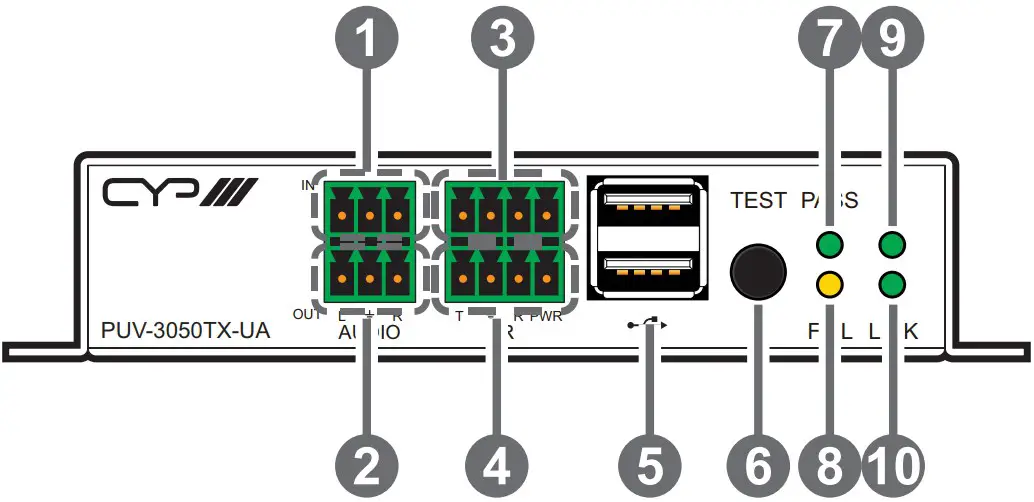

Front Panel

1. AUDIO IN 3-pin Terminal Block: Connect to the analogue audio
   output of a device such as a media player or game console using a
   3-pin adapter cable. Audio is sent to the analogue audio output on the connected compatible receiver.
2. AUDIO OUT 3-pin Terminal Block: Connect to powered speakers or an amplifier for analogue audio output using a 3-pin adapter cable.
   Audio is sourced from the analogue audio input on the connected compatible receiver.
3. RS-232 4-pin Terminal Block: Connect to a PC, laptop, or serial controllable device with a 4-pin adapter cable for the extension of RS-232 signals between both ends of the HDBaseT connection.
4. IR 4-pin Terminal Block (In/Out): Connect to both an IR Blaster and Extender using a 4-pin Y-adapter cable to transmit and receive IR control signals and extend them to devices connected to the other end of the HDBaseT connection.
5. USB 2.0 Ports (Type-A): Connect directly to standard USB devices such as a mouse, keyboard, or flash drive to extend their USB functionality to the currently active Micro-USB host port.
6. TEST Button: Press this button to initiate a simple HDBaseT cable quality test. While the test is in process, both the TEST and FAIL LEDs will blink.
   Note: This feature requires connection to a compatible receiver. This function will not provide a result if no receiver is connected.
7. PASS LED: This LED will illuminate solidly to indicate that the most recent cable test result was successfully passed.
8. FAIL LED: This LED will illuminate solidly to indicate that the most recent cable test resulted in a failure with too many detected errors.
9. POWER LED: This LED will illuminate to indicate the unit is on and receiving power.
10. LINK LED: This LED will illuminate solidly when a live connection with a compatible receiver is active.

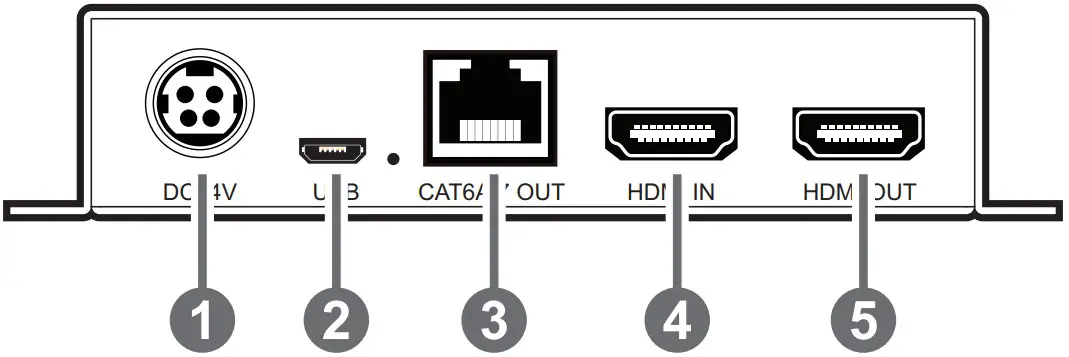

Rear Panel

1. DC 24V/2.7A Port: Plug the 24V/2.7A DC power adapter into this port and connect it to an AC wall outlet for power.
2. USB 2.0 Port (Micro-B) & LED: Connect directly to a standard USB host such as a PC or laptop to extend their USB functionality to all currently connected USB devices on both ends of the HDBaseT connection. The LED will illuminate solidly to indicate when the USB port is active.
   Note: If USB hosts are connected to both the transmitter and receiver at the same time, only the most recently connected host will be active.
3. CAT6A/7 OUT Port: Connect to a compatible HDBaseT receiver with a single Cat.6A/7 cable for extension of all data signals. PoH will also be supplied to a connected compatible PD receiver.
   Note: The PoH function is designed for powering compatible receiver units only. Non-PoH receivers will need their own power supply. Receivers from other brands may not be compatible.
4. HDMI IN Port: Connect to HDMI source equipment such as a media player, game console, or set-top box.
5. HDMI OUT port: Connect to an HDMI TV, monitor, or amplifier for digital video and audio output.

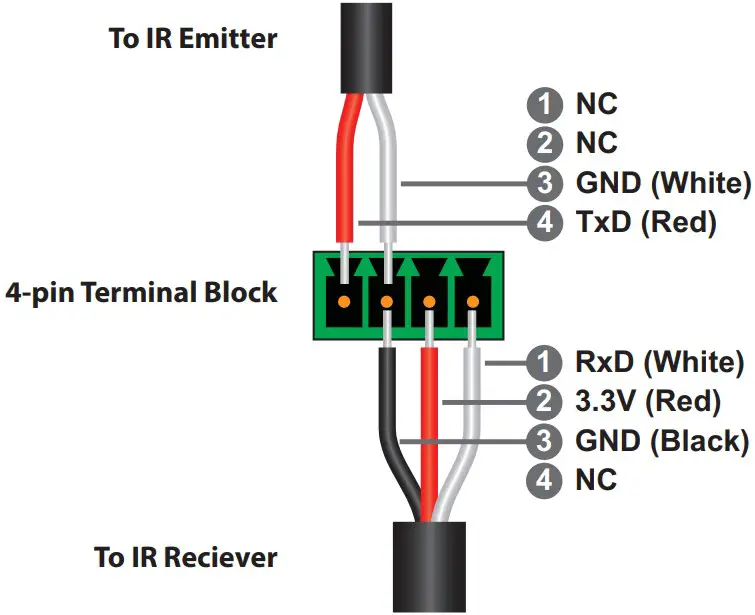

IR Cable Pinouts

IR Blaster + IR Extender

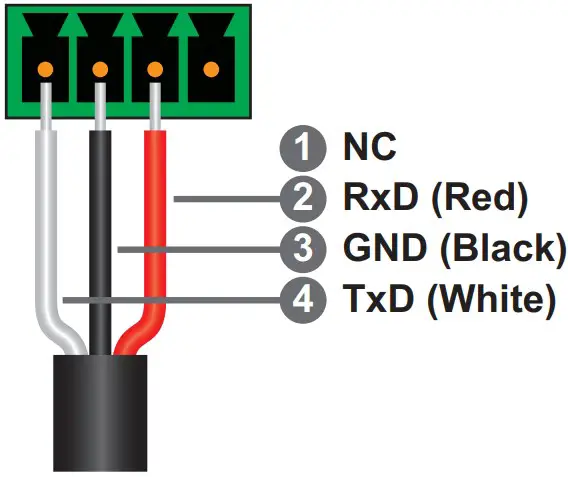

Serial Pinout

Audio Pinouts

Stereo Audio Input

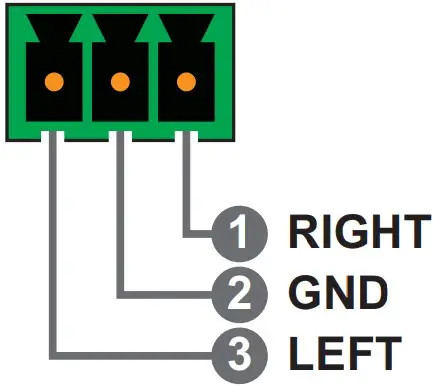

Stereo Audio Output

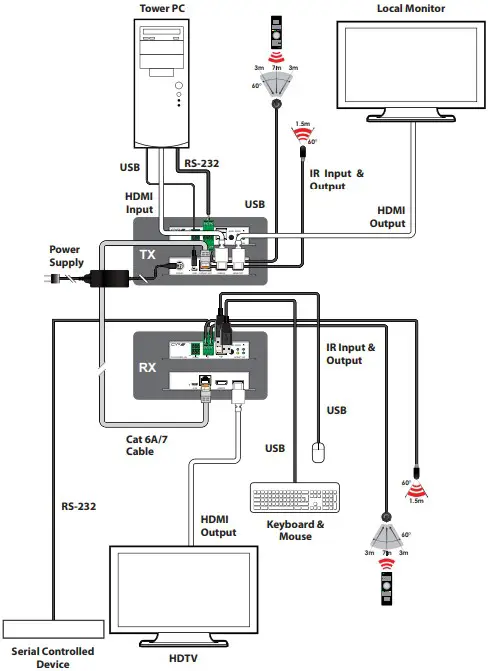

CONNECTION DIAGRAM

SPECIFICATIONS

Technical Specifications

HDMI Bandwidth 18Gbps
HDBaseT Bandwidth 18Gbps
Input Ports 1×HDMI (Type-A) 1×Analogue Stereo (3-pin Terminal Block)
Output Ports 1×HDBaseT (RJ-45) 1×HDMI (Type-A) 1×Analogue Stereo (3-pin Terminal Block)
Pass-through Ports 1×IR In/Out (4-pin Terminal Block) 1×RS-232 (4-pin Terminal Block) 2×USB 2.0 (Type-A)
Pass-through/Service Port 1×USB 2.0 (Micro-B)
IR Frequency 30 ~ 50kHz (30 ~ 60kHz under ideal conditions)
Baud Rate Up to 115200
Power Supply 24V/2.7A DC (US/EU standards, CE/FCC/UL certified)
ESD Protection (HBM) ±8kV (Air Discharge) ±4kV (Contact Discharge)
Dimensions (W×H×D) 128mm×25mm×108mm [Case Only] 128mm×25mm×112.5mm [All Inclusive]
Weight 400g
Chassis Material Metal (Steel)
Chassis Colour Black
Operating Temperature 0˚C – 50˚C/32˚F – 122˚F
StorageTemperature -20˚C – 60˚C/-4˚F – 140˚F
Relative Humidity 20 – 90% RH (Non-condensing)
Power Consumption 12W

Video Specifications

Audio Specifications

Digital Audio
Analogue Audio

Cable Specifications

Bandwidth Category Examples:

1080p (FHD Video)

• Up to 1080p@60Hz, 12-bit colour
• Data rates lower than 5.3Gbps or below 225MHz TMDS clock

4K30 (4K UHD Video)

• 4K@24/25/30Hz & 4K@50/60Hz (4:2:0), 8-bit colour
• Data rates higher than 5.3Gbps or above 225MHz TMDS clock but below 10.2Gbps

4K60 (4K UHD+ Video)

• 4K@50/60Hz (4:4:4, 8-bit)
• 4K@50/60Hz (4:2:0, 10-bit HDR)
• Data rates higher than 10.2Gbps

HDBaseT Features

ACRONYMS

SUPPORT
CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue,
Shepperton, Middlesex, TW17 8BA
Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279
Email: [email protected]
www.cypeurope.com
RDV1.1
