THERMOSTATIC MIXING VALVES
Get The Peace Of Mind That Comes From
Improved Safety, Protection, And Comfort.
RESIDEO BRAUKMANN THERMOSTATIC MIXING VALVES
Provide Increased Protection And Comfort For Your Family

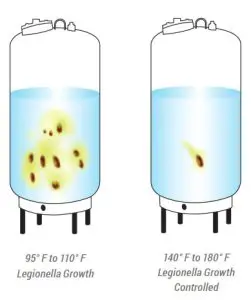

PROTECTION
Mixing Valves Help To Prevent Bacteria Growth
When a water heater’s temperature is set too low, deadly Legionella bacteria can grow. The growth of Legionella is reduced when the water is heated to 140° F. A Resideo Braukmann mixing valve allows you to set your water heater at a higher temperature to ill bacteria while eliminating concerns about water being too hot at the tap.
Resideo Braukmann mixing valves are designed to prevent the growth of bacteria by allowing you to set your water heater at 140° F.
SAFETY
Mixing Valves Help To Prevent Scalding*
Mixing valves also help prevent burns and injuries due to scalding. As the chart below shows, burns from hot water can occur in just seconds — even less for small children. A mixing valve reduces the temperature at either the water heater or the faucet, so our family can use the sink, shower, or tub without fear of scalding.
*when used as directed
| TEMPERATURE | ADULTS | CHILDREN 0-5 YEARS 2 |
| Skin thickness of 2.5 mm | Skin thickness of 0.56 mm | |
| 160° F | 1 second | .05 seconds |
| 155° F | 1.5 seconds | 1 second |
| 150° F | 2 seconds | 1.5 seconds |
| 145° F | 3 seconds | 2 seconds |
| 140° F | 5 seconds | 3 seconds |
| 135° F | 15 seconds | 4 seconds |
| 130° F | 35 seconds | 10 seconds |
| 125° F | 3 minutes | 2 minutes |
| 120° F | 10 minutes | 5 minutes |
| 100° F | Safest Water Temperature for Bathing | |
Burns can occur quickly, but Resideo mixing valves help prevent scalding. In fact, Resideo Braukmann mixing valves meet the ost stringent safety standards in the industry.
COMFORT

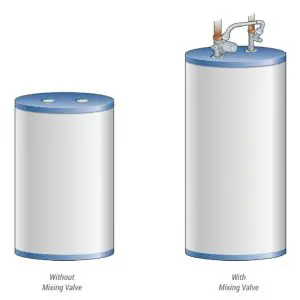

COMFORTEnjoy More Available Hot Water
The demands of today’s busy families can often be a strain on the hot water supply, but not with a Resideo Braukmann mixing alve. By raising the stored water temperature to 140˚ F or higher, less hot water is required to mix with the cold water to reach a comfortable temperature. The mixing action gives you up to 60-gallon performance from a 40-gallon tank.
The mixing action of a Resideo Braukmann mixing valve can give you up to 60-gallon performance from a 40-gallon tank — it’s ike adding a larger water heater without taking up the space.

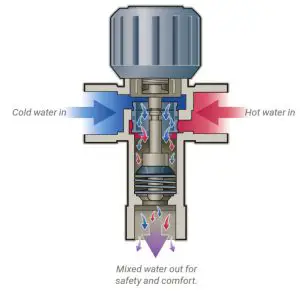

HOW MIXING VALVES WORK
Cold Water Is Mixed With Hot Water To Provide Safety And Comfort At The Faucet.
A Resideo Braukmann mixing valve allows you to set your water ater to a higher temperature to reduce the threat of bacteria growth, yet the mixing action helps prevent scalding. Plus, you’ll increase your available hot water supply by mixing hot water with cold.

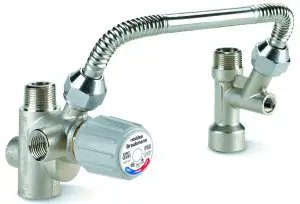

RESIDEO BRAUKMANN MIXING VALVES
One little addition that helps improve your family’s safety, health and comfort. Ask your contractor which mixing valve is right for you.
Sources
Legionella. Legionella 2003. An updated and statement by the Association of Water Technologies. June 2003. http://www.awt.org/Legionella03.pdf
Information gathered from: Hot water burn and scalding graph. (2004)
Retrieved June 20, 005, from Hot Water Burn Prevention and Consumer Safety Web site: http://www.accuratebuilding.com/services/legal/charts/hot-water-burn-scalding-graph.html.
