Jcv24saed Venetian Blind Motor User Manual

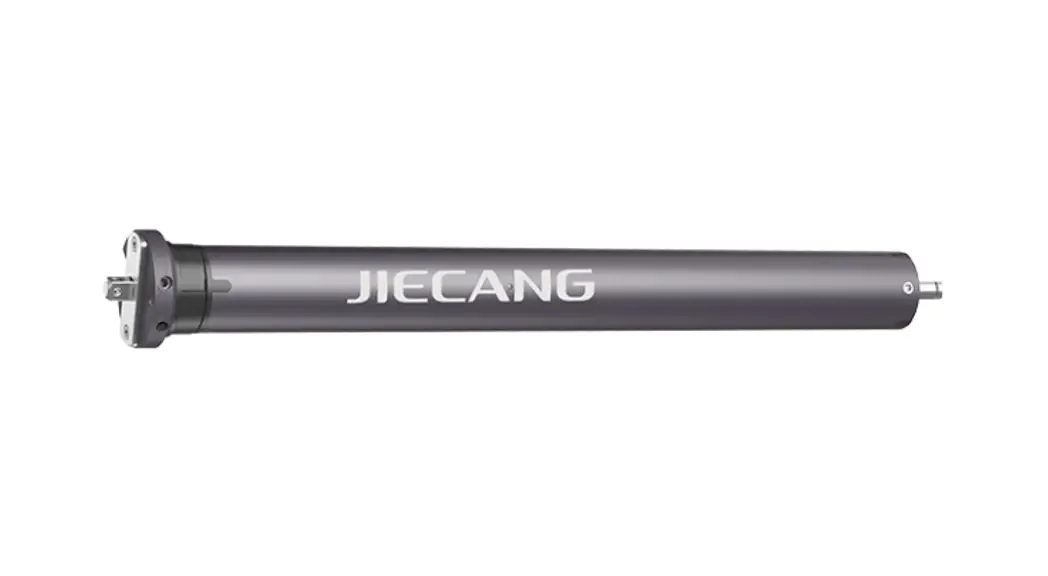

JCV24SAED Venetian Blind Motor

Venetian Blind Motor User Manual

01 Product Info

– Paring Button

03 Power Options

– Pairing Motor with Controller Power on, add a new
controller

– After motor is powered on for more than 10s, press the Paring
Button

– Adapter: 12V/1A

– Power box: 12V/1A

04 Caution!

– JCV AC Motor

– Size: 24:25mm

– S: Standard

– AE: with adapter supply

– Single driving Torque: 0.6N.m

– External Wi-Fi/Zigbee optional

– Speed: 30Rpm

02 Installation

05 Instructions

Control the UP/STOP/DOWN of the Shade:

– RF Control Inactive

Reset:

– Hold Pairing button for 6s, jog twice to show the motor RF
control is inactive

– Hold Pairing button for 2s, the RF control is active again

Note: Pairing cannot be done under group channel or 0
channel.

Direction Reverse:

– Upper & Lower Limits Setting

– Adjusting Upper & Lower Limits

One-touch/Constant-touch Mode:

– Setting and Cancelling Favorite Position

Hot key to the Fav. Position:

– Note: The Fav.position setting can only be done after upper
& lower limits are set.

– Adjust Lower limit

Adjusting Motor Speed:

– Note: If the motor doesn’t jog, the max/min speed has already
been reached. There are 3 speeds adjustable.

Removing Controllers:

– Remove a single controller

– Remove controller B via pre-existing controller A

– Controller B removed

Note: All the settings are saved even when controllers are
removed (limits set are saved). Controller A/B are already paired
to the motor.

Cancelling Limits:

– Limits cancelled

Note: It is forbidden to run the motor if installed into the
shade without limits. Limits should be set immediately to protect
the shade.

06 Troubleshooting

1. Add controller
2. Poke Pairing button for 2s to activate motor

Venetian Blind Motor User Manual
01 Product Info
Paring Button

03 Power Options

a.Pairing Motor with Controller Power on, add a new controller
After motor is powered on for more than 10s Paring Button

04 Caution!
adapter 12V/1A,power box 12V/1A.

JCV
AC Motor

24
24:25mm

S
S: Standard

AE

S

06

AE:with adapter supply

Single driving Torque:0.6N.m

(External Wi-Fi/Zigbee optional)

30
Speed: 30Rpm

02 Installation

05 Instructions
Control the UP/STOP/ DOWN of the Shade
RF Control Inactive
Reset

Hold Pairing button for 6s, jog twice to show the motor RF control is inactive; Hold Pairing button for 2s, the RF control is active again.

Note: Pairing can not be done under group channel or 0 channel. b.Direction Reverse

c.Upper&Lower Limits Setting

g.Adjusting Upper & Lower Limits

d.One-touch/Constant-touch Mode
e.Setting and Cancelling Favorite Position
f.Hot key to the Fav. Position Note: The Fav.position setting only can be done after upper&lower limits set.

Adjust Lower limit
h.Adjusting Motor Speed
Note: If motor doesn’t jog, the max/min speed has already been reached. There are 3 speeds adjustable.
i.Removing Controllers Remove a single controller
Paring Button Remove controller B via pre-existing controller A
Controller B removed

Note: All the settings are saved even controllers removed(limits set are saved). Controller A/B are already paired to motor.
j.Cancelling Limits

Limits cancelled
Note: It is forbidden to run the motor if installed into the shade without limits. Limits should be set immediately to protect the shade.

06 Troubleshooting

1.Add controller 2.Poke Pairing button x2s to activate motor
