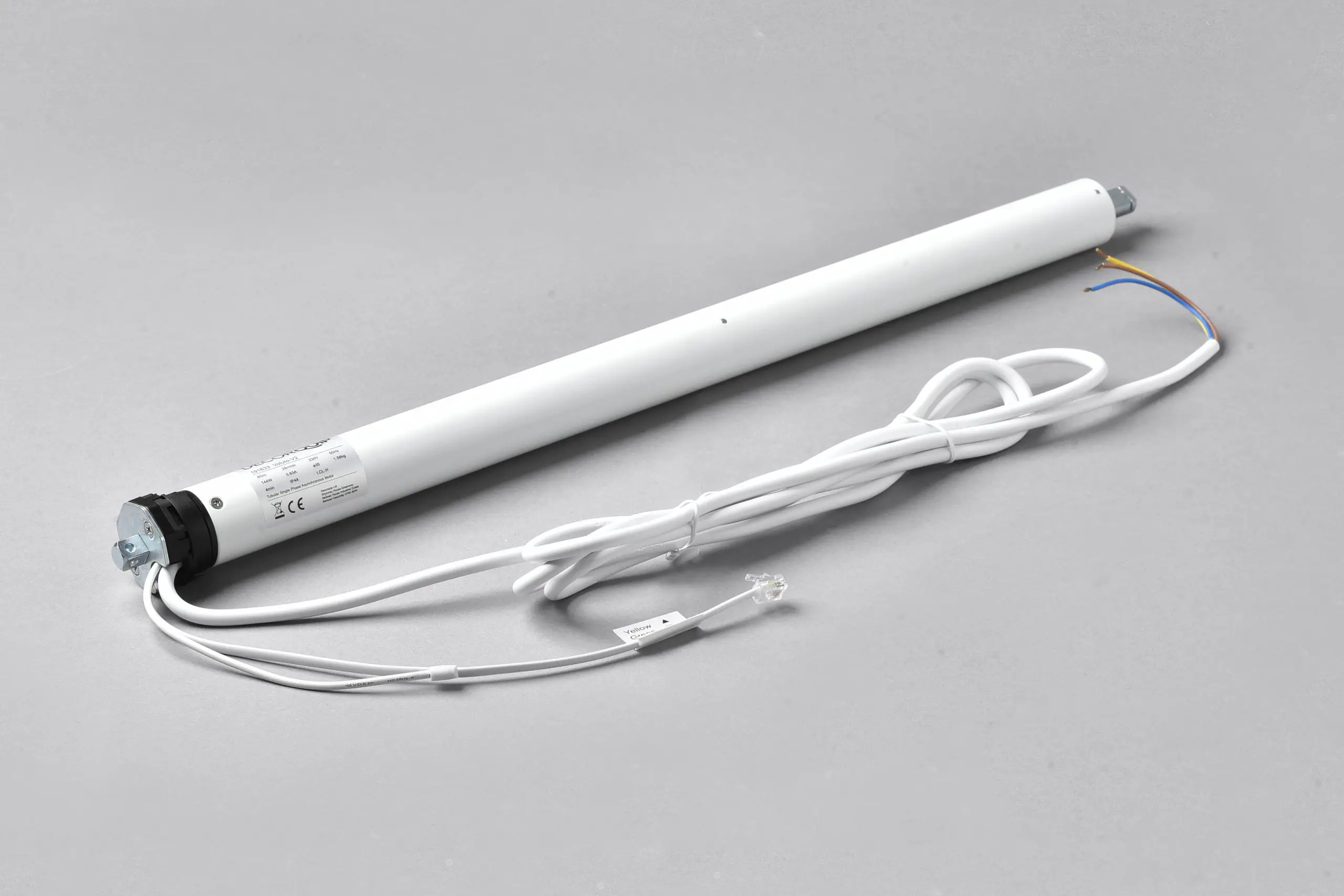

DECORQUIP 191633 Roller Blind Motors
TECHNICAL SPECIFICATION
| CONTROL TYPE | RADIO | RATED VOLTAGE | 230 V | IP RATING | IP44 |
| LIMITS | ELECTRONIC (set remotely) | RATED POWER | 121 W | LIFTING CAPACITY | 26.7 Kg |
| OUTPUT SPEED | 28 rmp | RATED CURRENT | 0.53 A | MIN. BLIND WIDTH | 640 mm |
| RATED TORQUE | 6 N.m | RADIO FREQUENCY | 433.92 MHz | MOTOR LENGTH | 580 mm |
FUNCTIONAL FEATURES
- Bi-Directional Functionality
- Electronic Limit Setting
- Jog Mode
- Program / Operation Button (P1)
- Internally Stored Settings
- Pair with up to 10 Control Devices
- Switch Direction
- Built-in Radio Receiver
- Favourite Stop Position

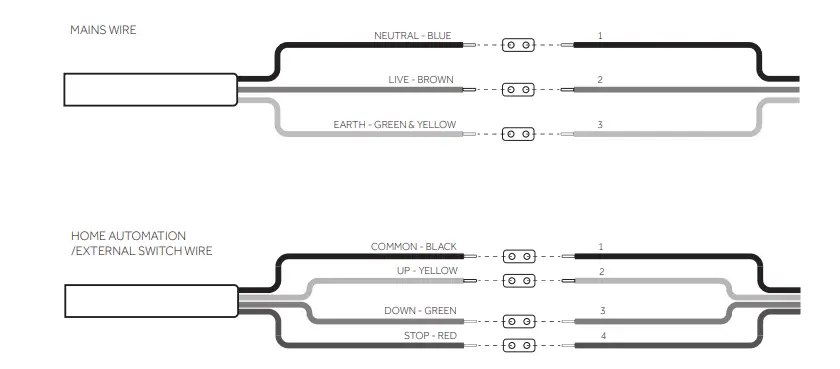

WIRING

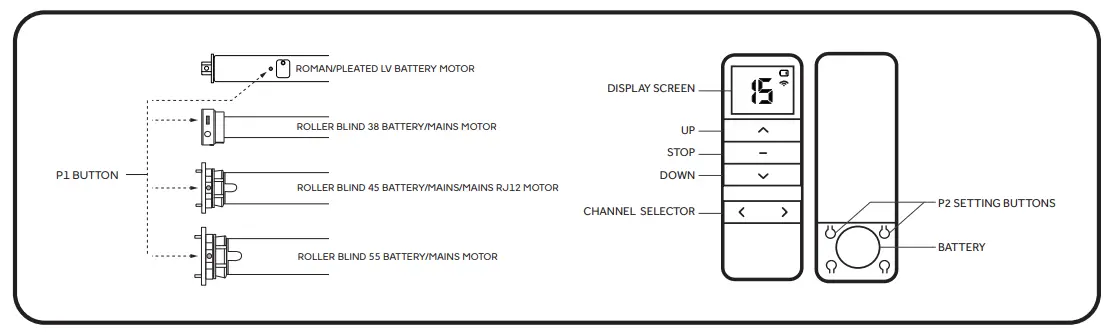

BUTTON SPECIFICATION
- BUTTON SETTINGS

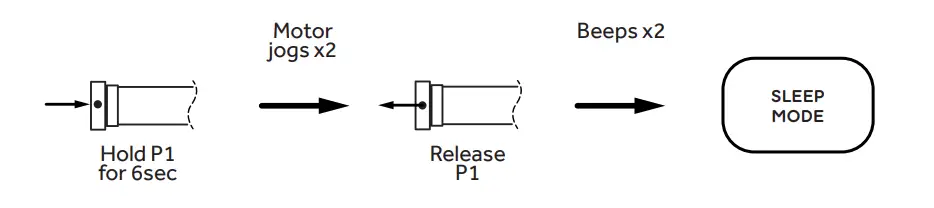

SLEEP MODE

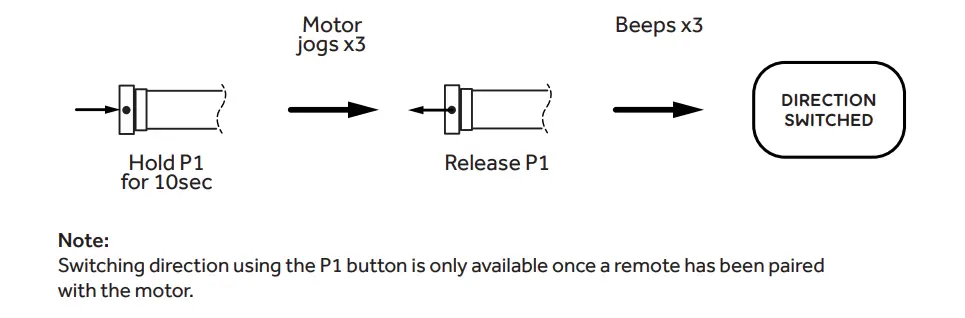

SWITCHING DIRECTION

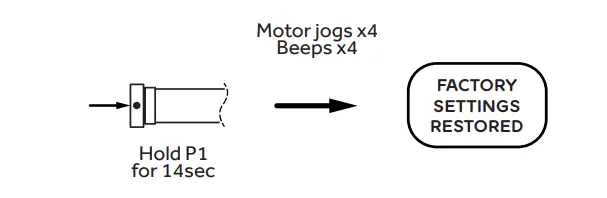

RESTORING FACTORY
PAIRING A REMOTE AND INITIAL SETTINGS

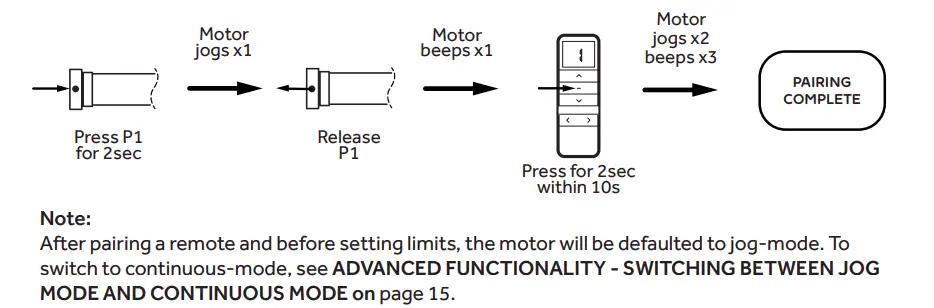

- PAIRING A REMOTE WITH A MOTOR

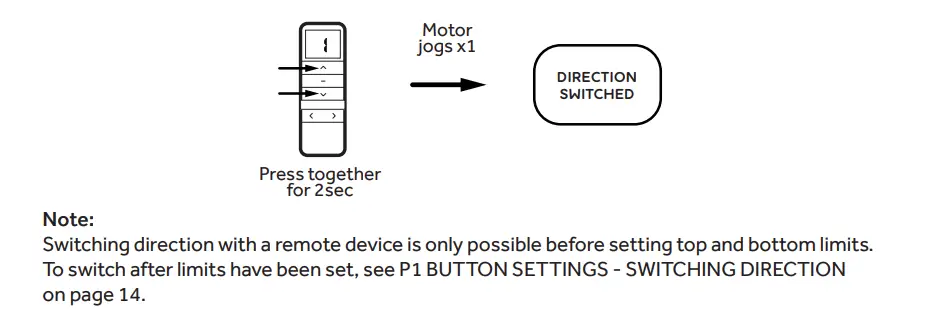

SWITCHING DIRECTION

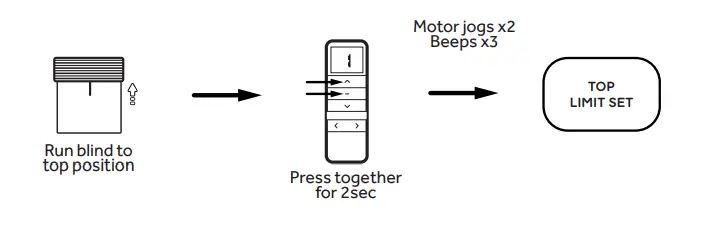

SETTING THE TOP LIMIT

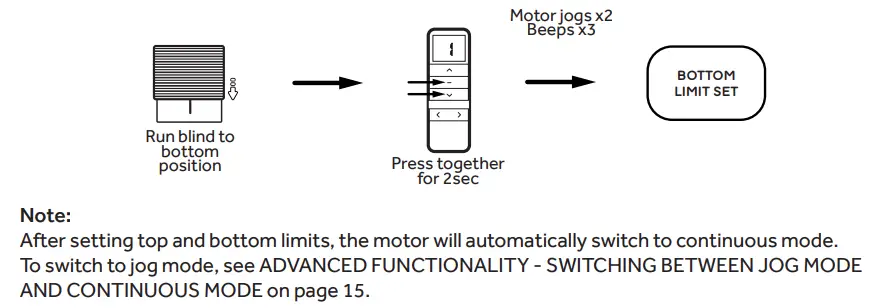

SETTING THE BOTTOM LIMIT
ADVANCED SETTINGS

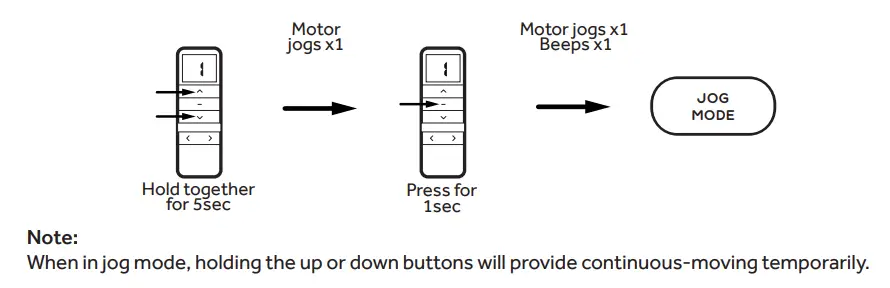

SWITCHING FROM CONTINUOUS MODE TO JOG MODE

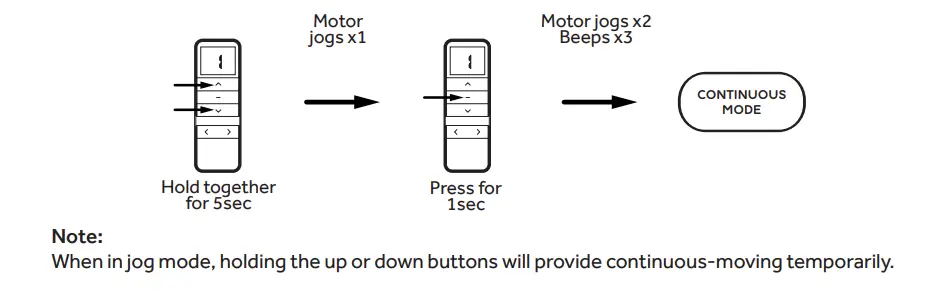

SWITCHING FROM JOG MODE TO CONTINUOUS MODE
- BATTERY MOTORS ONLY

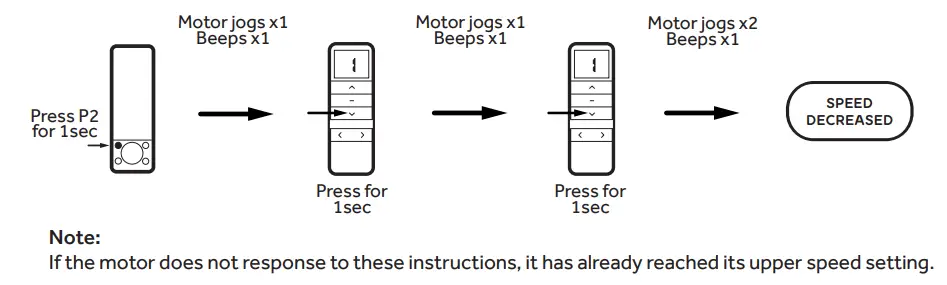

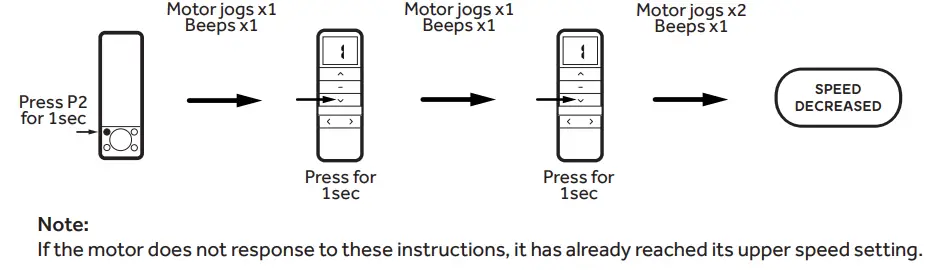

DECREASING MOTOR SPEED
CLEARING A FAVOURITE STOP POSITION

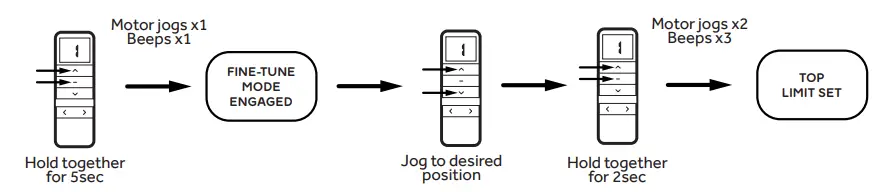

FINE-TUNING A TOP LIMIT

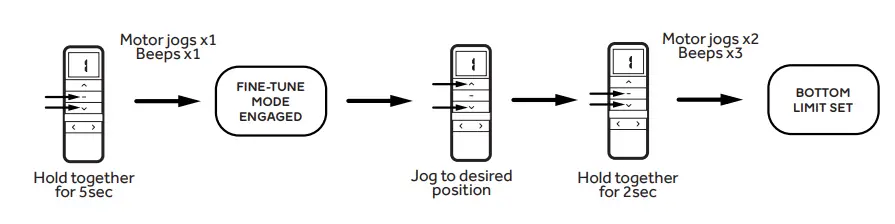

FINE-TUNING A BOTTOM LIMIT
ADDING/REMOVING AN EXTRA REMOTE
Damaged/unused electrical products and batteries are not be disposed with regular household waste. Dispose of this device in compliance with your authorities waste regulations. Alternatively, return your motors to Decorquip Ltd.
Decorquip Ltd
Rhymney House, Unit 8, Bedwas House Industrial Estate, Bedwas, Caerphilly, CF83 8DW. T: 029 2088 0811
WATCH THE VIDEO
DREAM RANGE PROGRAMMING INSTRUCTIONS -ADVANCED FUNCTIONALITY
