TownSteel

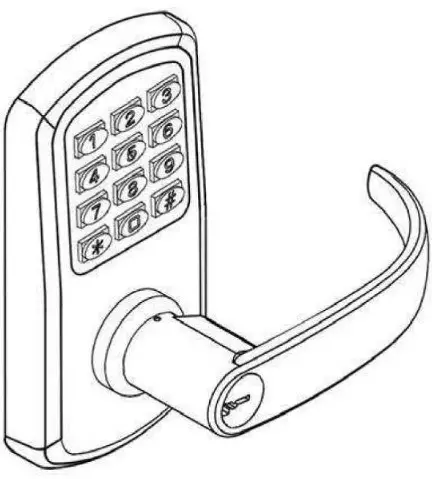

E-Elite 3200
Installation Guide
Package Content
Parts in the box
Getting Started Torn
Tools needed for lock installation
| Phillips Screw Driver (Not included) |  |
| Lever Removal Tool |  |
| Torx Wrench |  |
Note: Do not use a power drill for the installation of the lock – it can damage the lock.
Handing Information

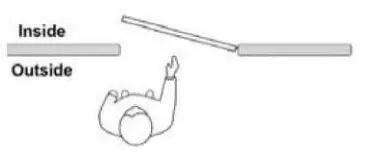

If hinges are on the right, and the door opens inward, it is a right-hand door (RH)

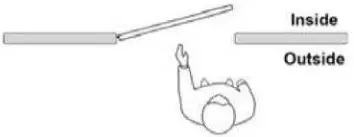

If hinges are on the left, and the door opens inward, it is a left-hand door (LH)

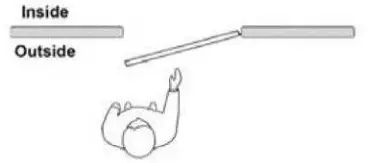

If hinges are on the right, and the door opens outward, it is a right-hand reverse door (RHR)

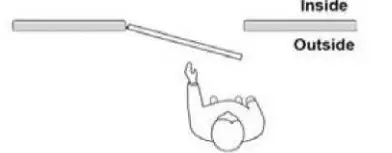

If hinges are on the left, and the door opens outward, it is a left-hand reverse door (LHR)

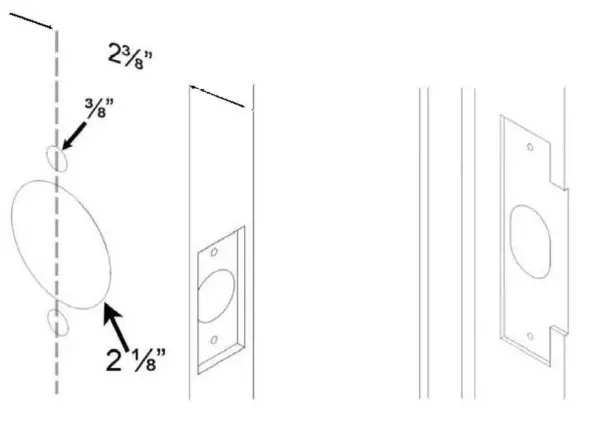

Door Preparation
Prepare door and jamb per template provided. The backset is the dimension from the edge of the door to the centerline of the lock.
Important: Doorstop is where the door will stop when normally operated. The stop includes any gasket, smoke seal, or bumpers. The position of strikes are to be measured taking this into account.

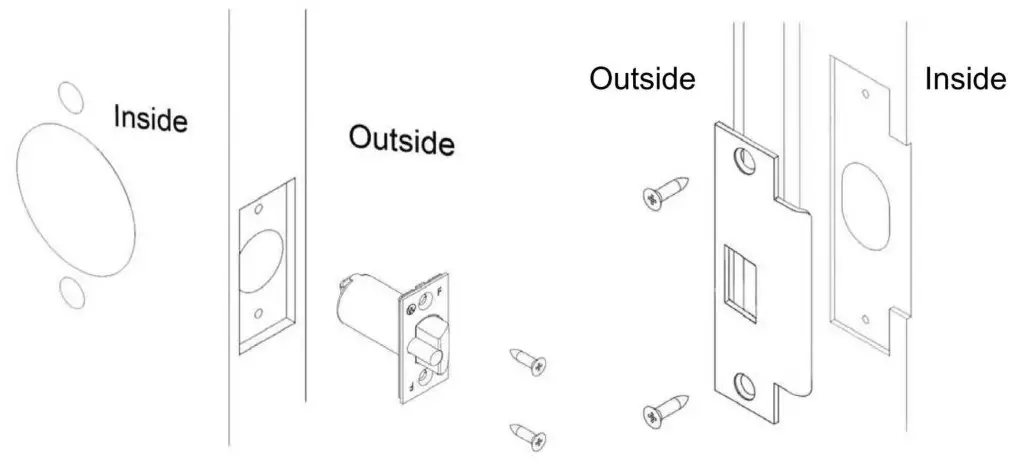

Step 1
Install the latch bolt and secure it with 2 screws. Install strike and secure with 2 screws.
Note: A right hand (RH) lock will be depicted in the following guide – for left hand (LH) install opposite. During installation keep the door open. Do not use power tools for assembly or you can potentially damage the door.

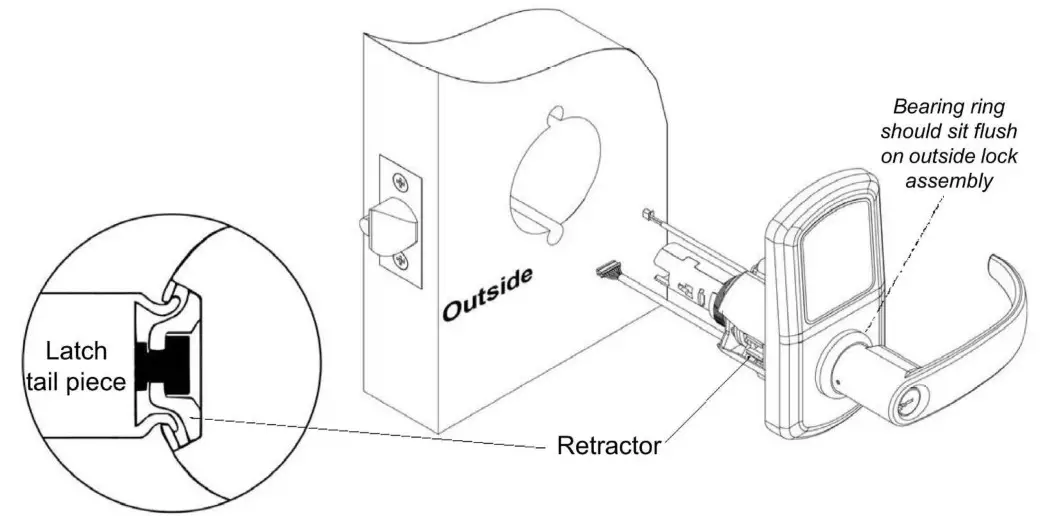

Step 2
Install the outside lock assembly in the cutout. Guide the wire harnesses through the cutout. Line up the retractor on the lock body with the latch tailpiece. Tighten the latch screws.
Note: Do not pull or pinch the wire harnesses.

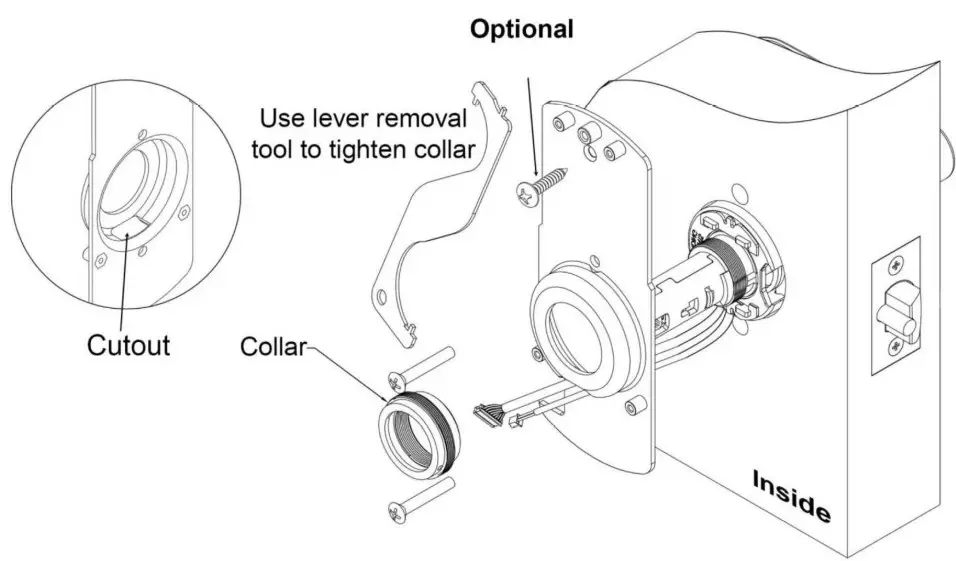

Step 3
Install the backplate on the inside. Make sure to route the wire harnesses through the cutout shown. Secure the backplate with the 2 backplate screws and the collar.
Note: Do not pinch wires.
Step 4
Plugin the wire harnesses where indicated on the inside assembly.
Step 5

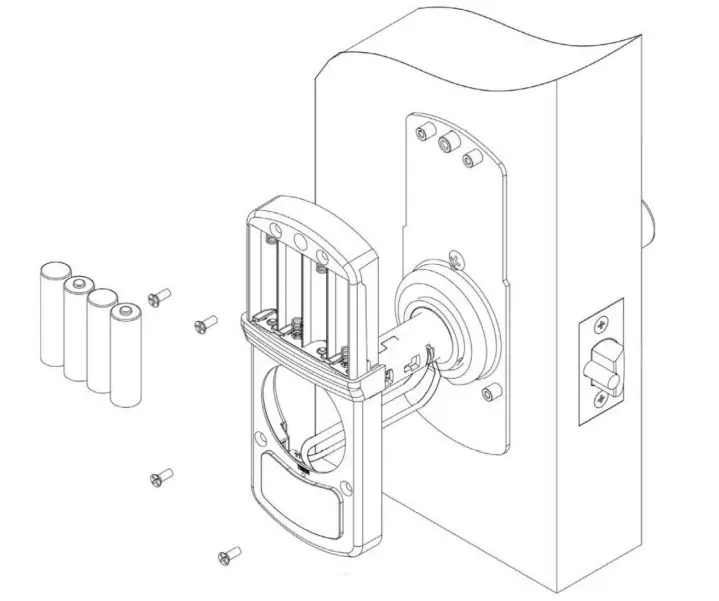

Install inside assembly with 4 screws. Do not pinch wires. Install the 4 AA alkaline batteries provided. The keypad will light up green and the motor will run.
Step 6
Install inside lower cover first. Tighten the bearing ring to hold the cover in place. Install the inside upper cover – slide down from the top -secure with a screw using the wrench provided.

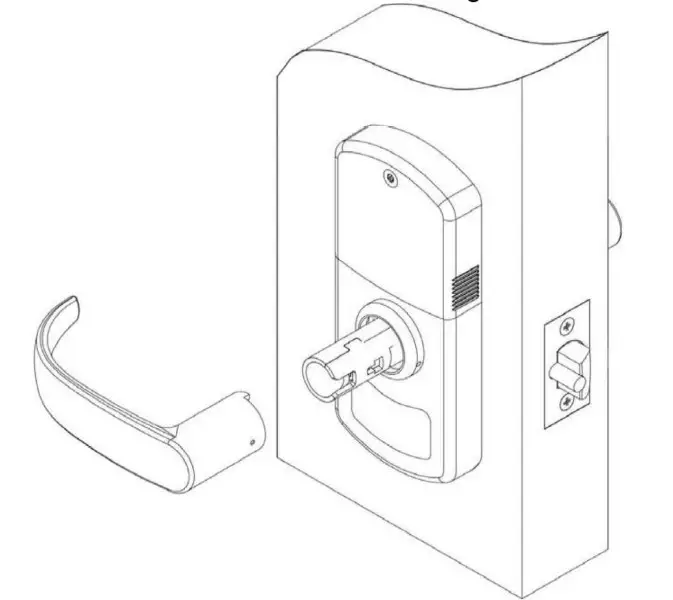

Step 7 Install the inside lever – ensure the lever is seated and is locked in place. The lever catch is on the side of the lever and it should snap into place.
Note: Check the lock for correct operation before closing the door. See the programming guide for help.
Addendum

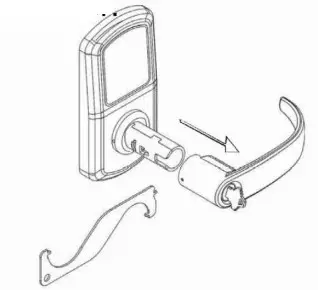

- Removing outer lever Ensure the unit is locked, rotate key approximately 70°.

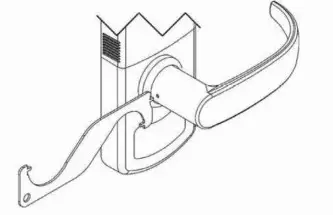

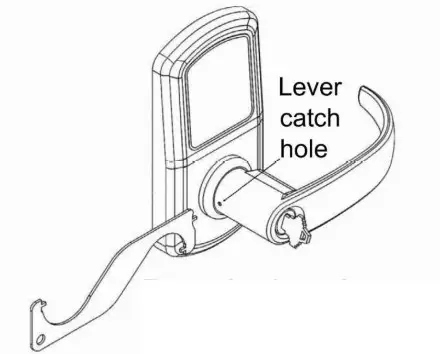

- Insert the lever removal tool into the lever catch hole and push back the lever catch.
- Remove lever.
Removing inner lever insert tool into lever catch holt & push back the lever catch, remove the lever.

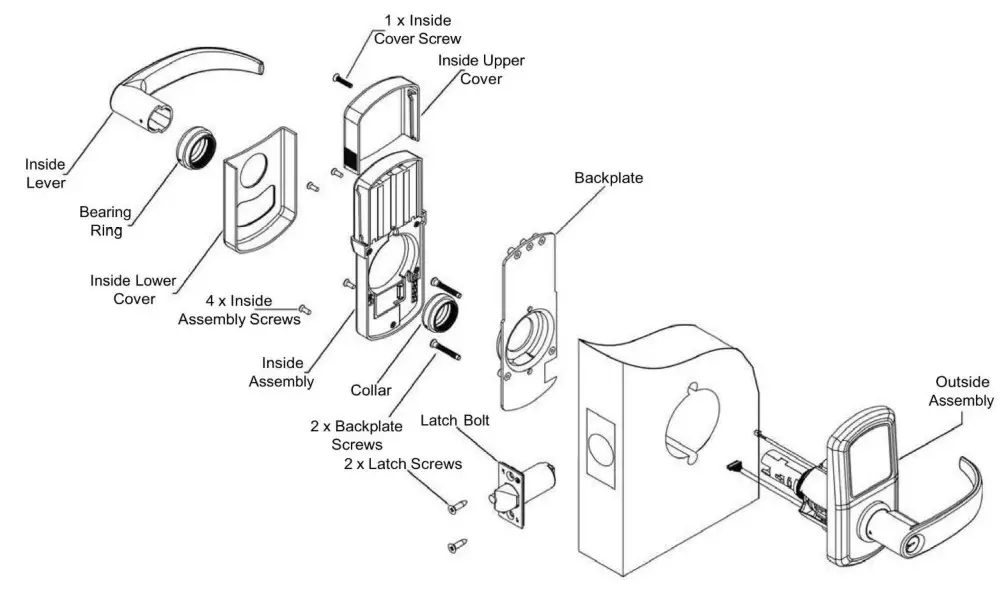

Exploded View
Troubleshoot
| Problem | Cause | Solution |
| The keypad does not light up. Issues retracting latch. The keypad lights up but the motor does not respond. | Batteries are dead. The keypad is locked out due to the number of incorrect codes Not fully plugged in wires or pinched wires. The latch tailpiece did not fully engage the lock body retractor. The motor wire is not fully plugged in or has been pinched. The motor wire was plugged into the wrong plug. | Replace batteries by removing the back cover. Wait 60 seconds and try again. Check wire connection. See Step 2. Undo the back cover and inside the assembly. Inspect the motor wire. See Step 4. |
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/ TV technician for help.
