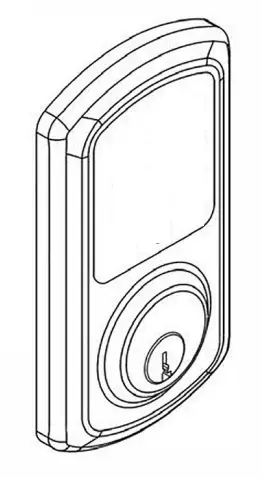

Townsteel E-smart 6000 Series Motorized Cylindrical Lock Installation Guide (+ PDF)

Outside Assembly	Backplate	Inside Assembly	Inside Cover
Deadbolt	Deadbolt Strike	Deadbolt Armor Plate	Dust Box
Screw Packs	Screw Packs	Deadbolt & Strike Screws	Additional Parts Included

Getting Started

Tools needed for lock installation

Phillips Screwdriver (Not included)
Flat-Head Screwdriver (Not included)

Note:
Do not use a power drill for installation of lock – it can damage the lock.

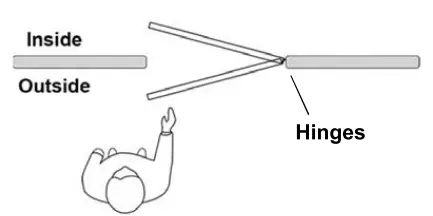

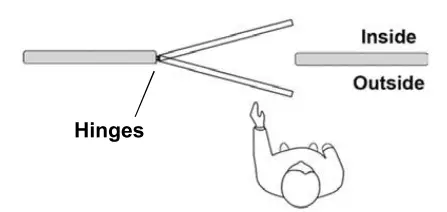

Handing Information

If hinges are on the right, and the door opens inward or outward it is a right hand door (RH)

If hinges are on the left, and the door opens inward or outward it is a left hand door (LH)

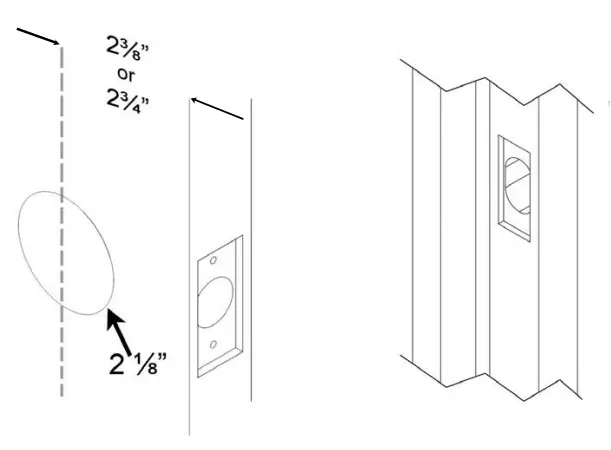

Door Preparation

Prepare door and jamb per template provided. The backset is the dimension from the edge of the door to the centerline of the lock.

Important:
Door stop is where the door will stop when normally operated. The stop includes any gasket, smoke seal, or bumpers. bumpers. The position of strikes are to be measured taking this into account.

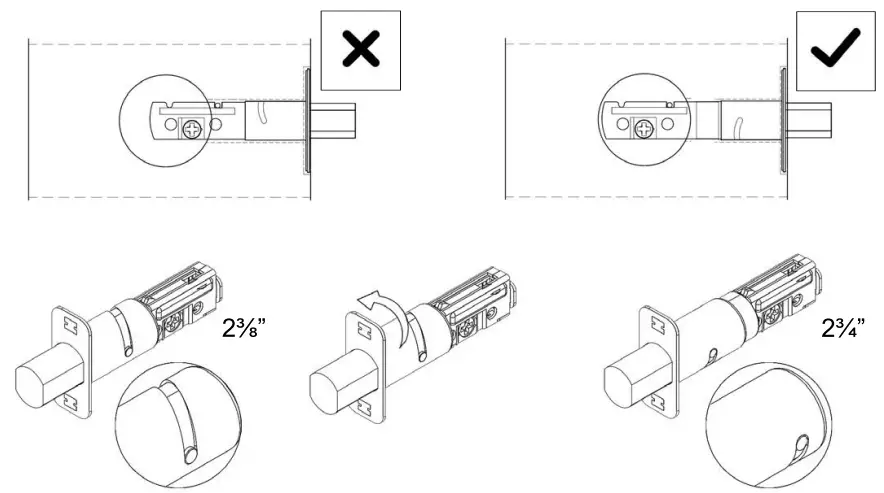

Step 1 – Adjusting Deadbolt

Place the deadbolt in the door frame cutout and make sure the cross shaped hub is centered. Otherwise, look below on how to adjust the deadbolt by rotating the deadbolt face.

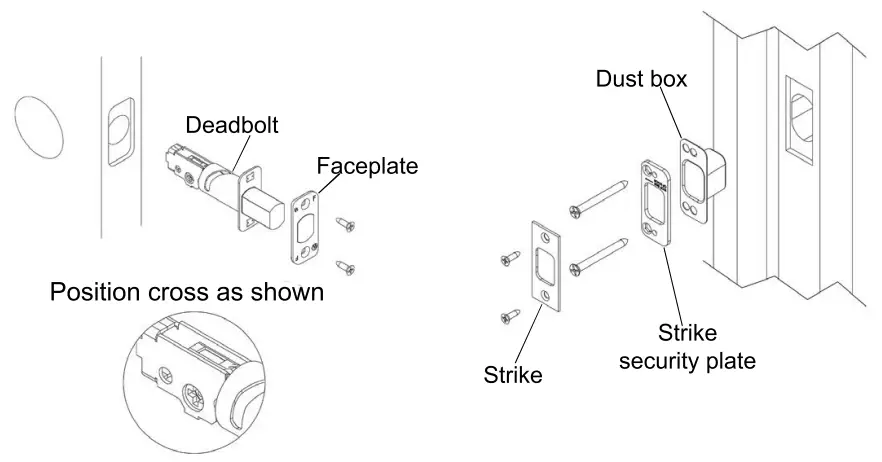

Step 2 – Installing Deadbolt & Strike

Install the deadbolt and faceplate and secure with 2 screws. Install strike, strike security plate, and dust box. Secure with 4 screws.

Note: During installation keep the door open. Do not use power tools for assembly or you can potentially damage the door.\

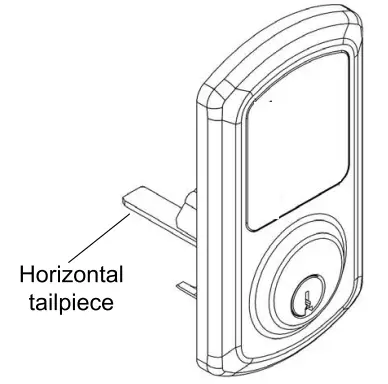

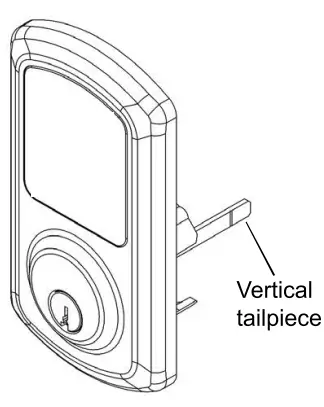

Step 3 – Setting Tail Piece

Set the handing on the outside assembly

Left hand (LH)

Right hand (RH)

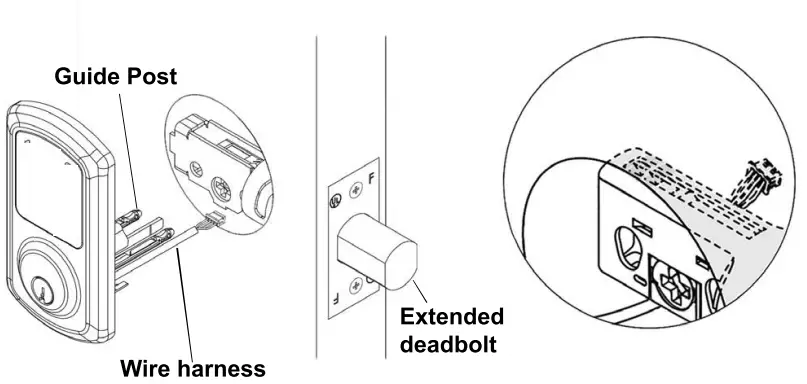

Step 4 – Installing Outside Step 4 – Installing Outside Assembly

Install the outside assembly. Route the wire under the deadbolt and the tail piece through the cross. The two plastic guide posts should go through the holes on both sides of the cross.

Note: A left hand (LH) lock will be depicted in the following guide. For right hand install opposite. Make sure the deadbolt is extended.

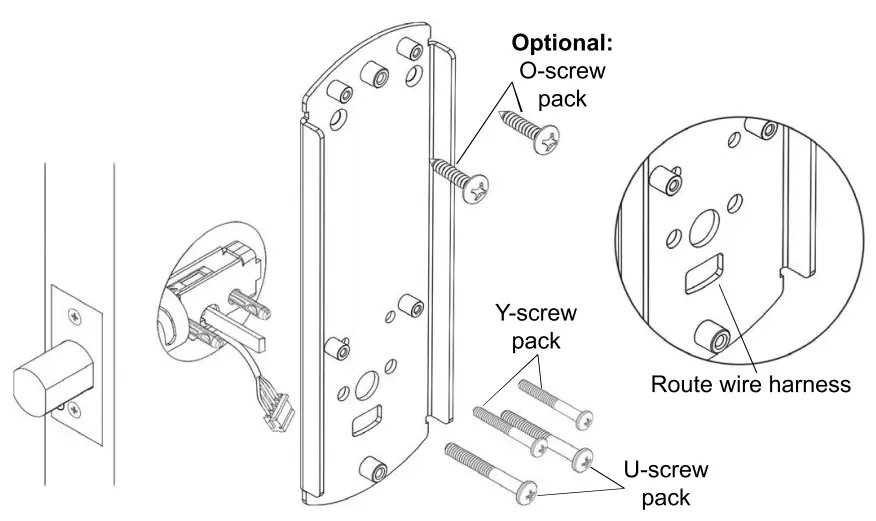

Step 5 – Installing Backplate

Install the backplate using the Y and U screw packs. Route the wire harness through the lower cutout. Secure with the 2 Y screws on the top two holes. Remove the two guide posts and secure with the 2 U screws.

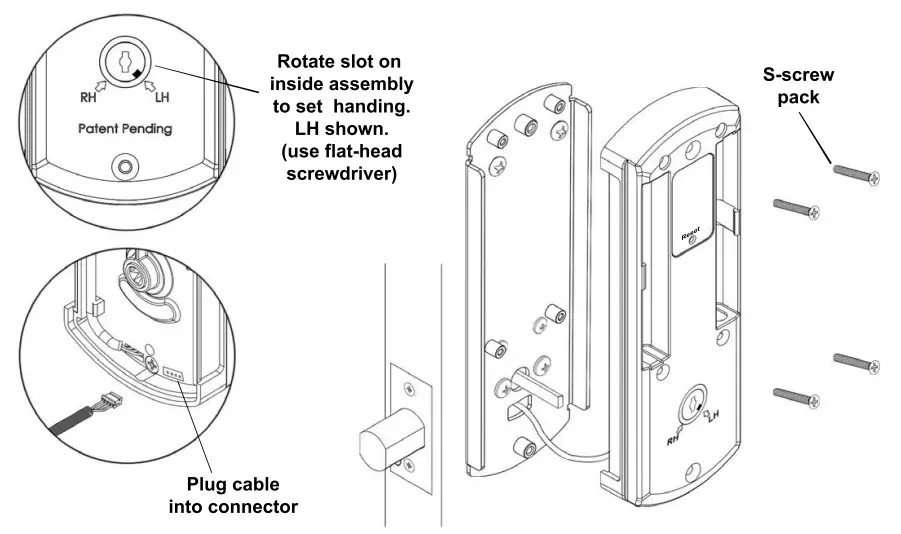

Step 6 – Installing Inside Assembly

Set the handing on the inside assembly. Plug the wire into the connector. Install the inside assembly using the S-screw pack.

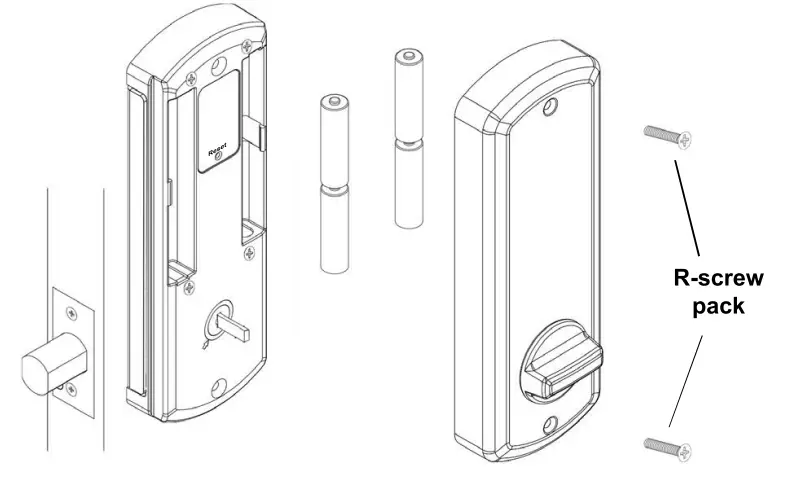

Step 7 – Installing Inside Cover

IMPORTANT- After adding batteries, see programming manual on SETTING THE HANDING before operating the keypad. Once the handing has been set, install inside cover using the R-screw pack.

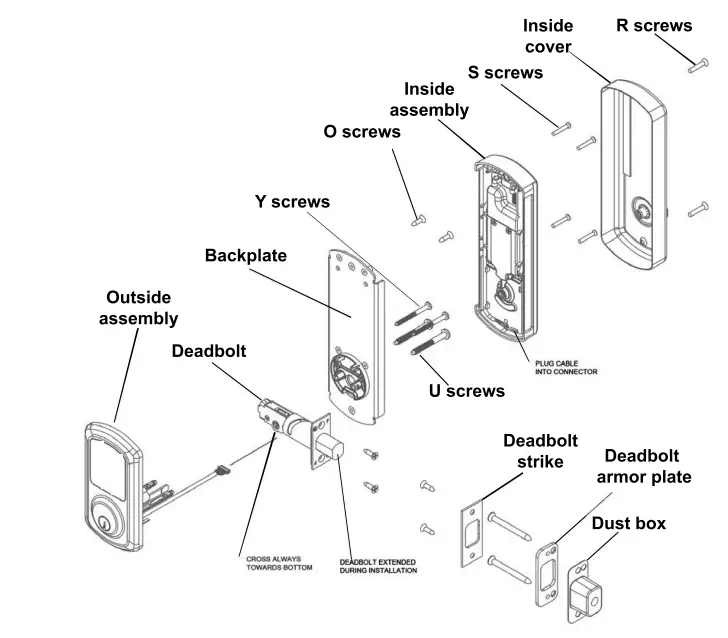

Exploded view

Troubleshoot

Problem	Cause	Solution
Keypad does not light up.	Batteries are dead	Replace batteries by removing back cover.
	Keypad is locked out due to amount of incorrect codes	Wait 60 seconds and try again.
	Not fully plugged in wires or pinched wires.	Check wire connection.
Deadbolt does not fully extend.	Strikes are not aligned.	Adjust strikes. (See door template)
Deadbolt is jammed and does not extend or retract.	Handing was not set correctly on outside assembly.	Set handing correctly on outside assembly. (See Step 3)
Deadbolt is jammed and does not extend or retract.	Deadbolt was not extended during installation.	Take lock off door and re-install with deadbolt extended. (See Step 4)
Keypad lights up but deadbolt does not respond.	Handing has not been set on the keypad	With deadbolt extended
