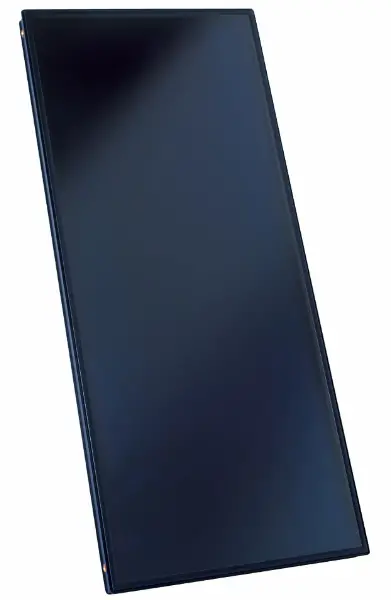

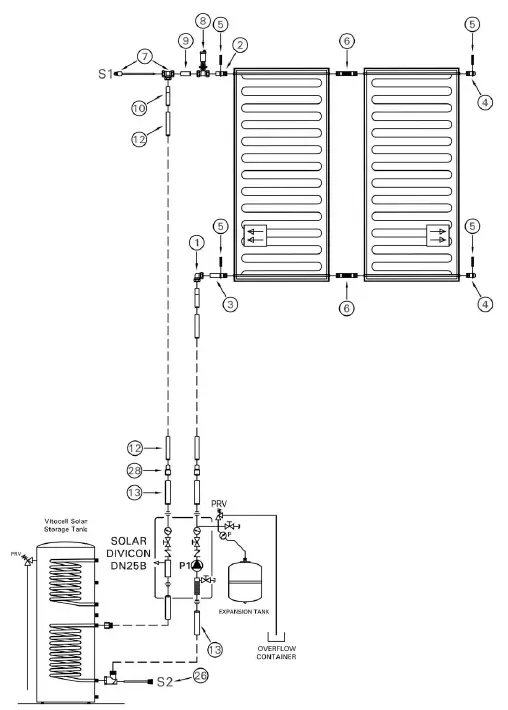

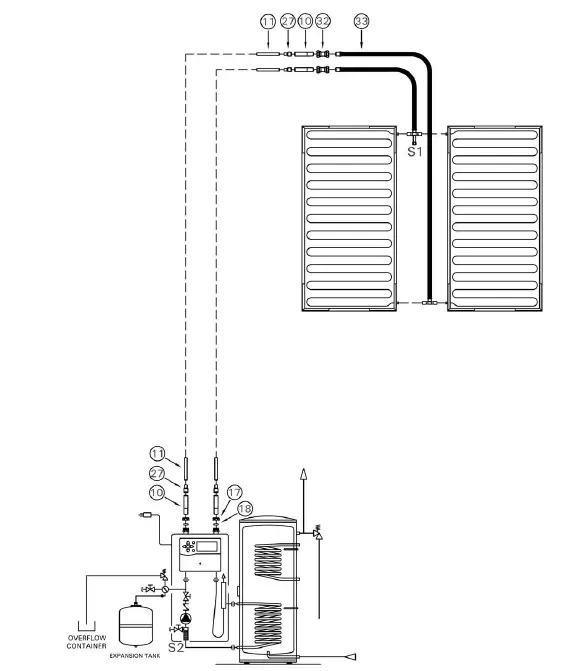

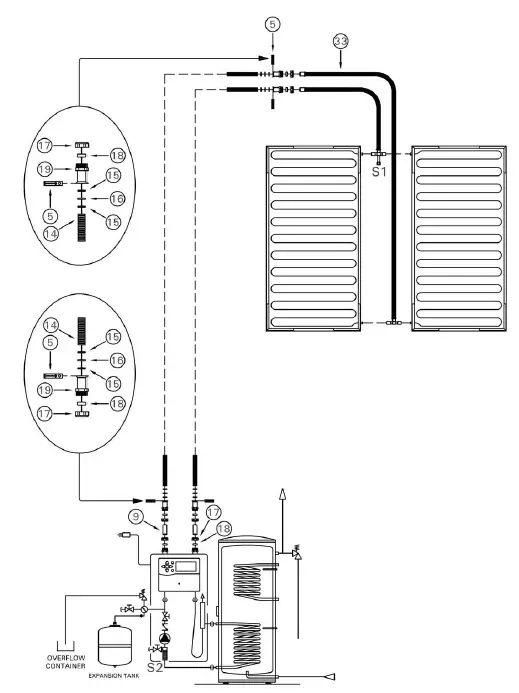

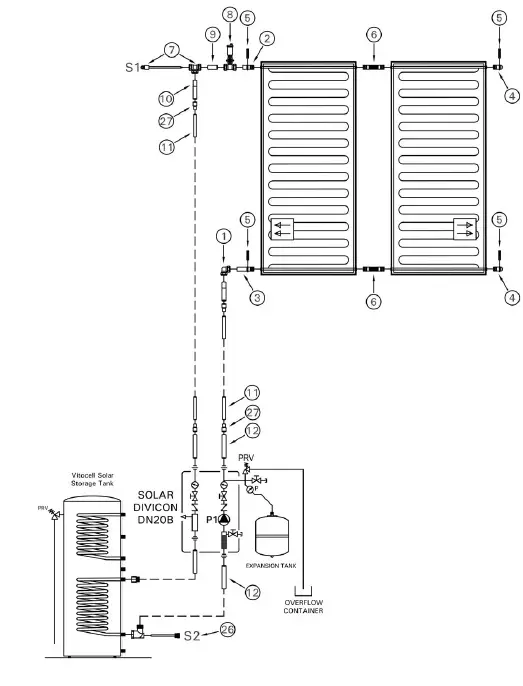

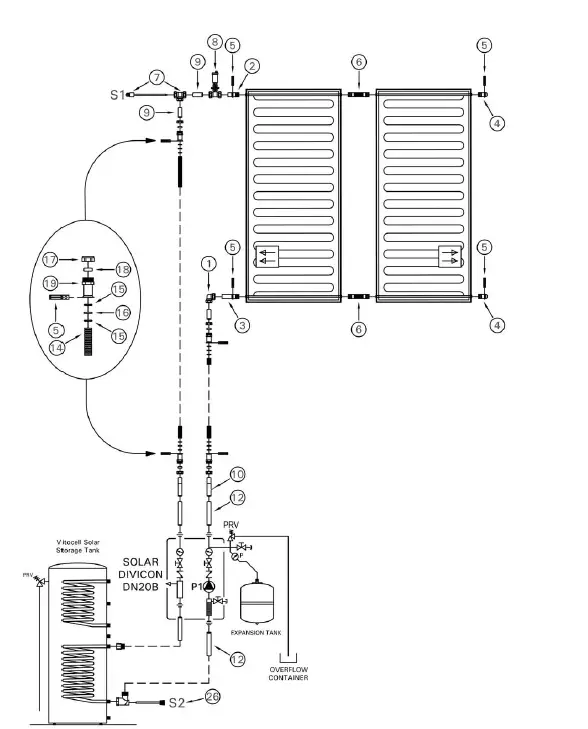

Viessmann Vitosol 200-fm Flat Plate Solar Collector Installation Guide

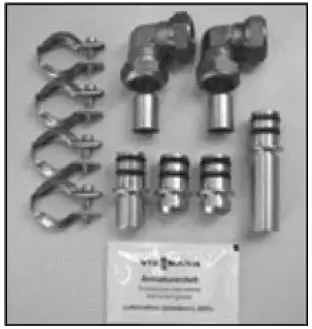

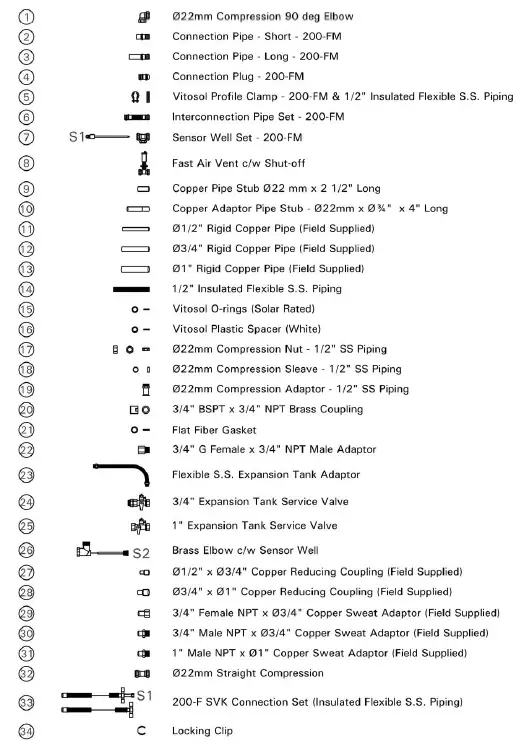

Contents:

H 2 x brass connecting pipe (one long, one short)

H 2 x brass plugs

H 4 x stainless steel profile clamp

H 2 x 22 mm 90º compression elbow

H 1 x package of O-ring silicone assembly grease

H 2 x copper tube support inserts

7248240

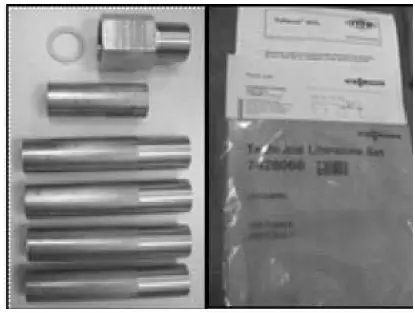

Contents:

H 4 x copper pipe adaptors – 22 mm dia to ¾” dia x 4” long

H 1 x copper pipe stub – 22 mm dia x 2.4” long H 1 x ¾” BSPT Female x ¾” NPT male adaptor   H 1 x gasket

H 1 x package of technical literature

Contents:

H 2 x interconnection pipes

H 1 x package of O-ring silicone assembly grease

7248239

One is required per system. Installed in top collector outlet piping.

Contents:

H 1 x 22 mm compression tee H 1 x immersion  sensor  well H 1 x sensor wire strain relief H 1 x insulation cover

H 1 x copper tube support insert

7174993

Built in shut-off valve for 100% isolation after system is totally vented 22 mm brass compression couplings.

Note: If ordered individually, requires 2 x PN 9543380 – copper adaptors – 22 mm x ¾” x 4”.

7316789

Manual key vent, 22 mm brass compression couplings.

Note: If ordered individually, requires 2 x PN 9543380 – copper adaptors – 22 mm x ¾” x 4”.

7316263

Wire mesh micro-bubble separator, with built-in shut-off valve 22 mm brass compression couplings.

Note: If ordered individually, requires 2 x PN 9543380 – copper adaptors – 22 mm x ¾” x 4”.

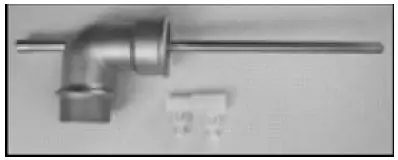

Note: Must be ordered separately for all other tanks.

– for tanks with NPT threads

– for tanks with NPT threads

– for tanks with NPT threads

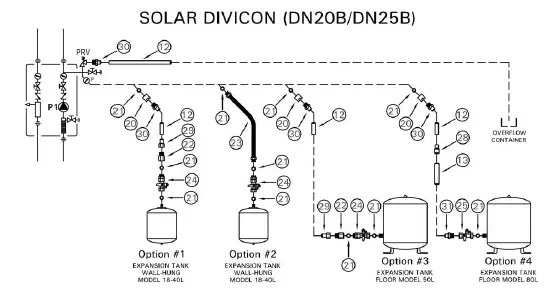

Used to connect expansion tank to Solar-Divicon DN20B / DN25B. Compression fitting with gasket.

Note: Only for use with the following tank models: 18L, 25L, 40L

Used to connect standard NPT copper to all Vitosol fitting with compression couplings (eg. Supply/Return piping to 90º compression elbow.

Copper adaptor pipe stub – 22 mm dia x ¾” Copper x 4” long.

9543380

Used to connect two items together that both have 22 mm compression couplings (eg. Air vent and sensor well).

Copper pipe stub – 22 mm dia x 2.4” long.

5276590

Used for Vitosol 200-FM to attach brass connection pipes and plugs to the collector header pipe.

7317074

Used for Vitosol 200-FM to connect piping to the collector header pipe.

7827514

Used for Vitosol 200-FM. To connect piping to the collector header pipe.

7827515

Used for Vitosol 200-FM to plug the collector header pipe.

7827516

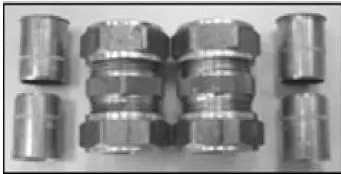

Used for a straight connection between two 22 mm pipes:

– To bring S/R piping straight out of the collector instead of using 90º compression elbow.

To extend pipe between two collectors that have to span an obstruction.

Spare parts are used for all collector fittings.

7819604

Included with the General Connection Set (see page 3) and with the Interconnection Pipe Set (see page 4). This can be ordered individually.

Used for lubricating O-rings on all collector fittings.

Included with the Solar Division fittings, but can be ordered individually.

Used to connect NPT piping to the expansion tank connection on all Solar Division.

Included with the Installation Fittings Set (see page 4), but can be ordered individually.

Used to connect NPT piping to the service valve on the expansion tank.

Expansion Tanks 9635592

Used with solar division expansion tank adaptor, expansion tank service valve adaptor, solar expansion tank service valve & flexible tank adaptor. This can be ordered individually.
