PORTABLE SOLAR KITS
GP-PSK-200 / GP-PSK-130 / GP-PSK-90
SUPPLEMENT AN EXISTING SOLAR KIT / SYSTEM OR USE IT AS AN INDIVIDUAL, INSTALLATION-FREE BATTERY CHARGER.
The rugged durability of our solar panels guarantees you’ll generate solar power everywhere you go. Our Portable Solar Kits allow you to park in the shade while your kit sits in the sun to charge your batteries.
The Portable Solar Kits are ideal for campers, pop-up trailers, and boats and will connect to an SAE-style solar port pre-wired on an RV.

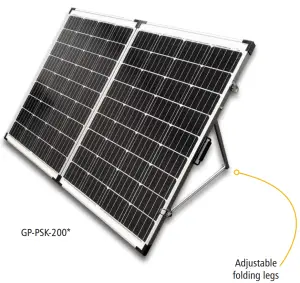

Each kit features adjustable folding legs, 12’ of cable, battery clamps, quick connect cable, and a heavy-duty carrying case.
- Sets up in minutes – simply unfold and connect battery clamps to the battery
- Place in the sun, park in the shade, includes 12‘ of cable
- Built-in PWM lithium capable Solar Controller prevents batteries from overcharging (*30A Single Bank PWM lithium capable Solar Controller is included with the PSK 200)
- Maintenance-free and no installation or mounting required
- Folds into carrying case for easy transport
- 25-year solar panel warranty

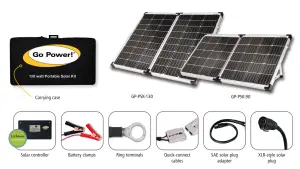

INCLUDED IN PORTABLE KITS
PORTABLE SOLAR KIT SPECIFICATIONS
SOLAR PANELS
| SPECIFICATIONS* | GP-PSK-200 | GP-PSK-130 | GP-PSK-90 |
| Output Power | 200W | 130W | 90W |
| Rated Current | 11.4A | 6.9A | 4.7A |
| Rated Voltage | 21.1V | 18V | 18V |
| Dimensions of panel folded closed (inches) | 40 x 27.2 x 3.4 | 32.5 x 19.9 x 2.8 | 21.7 x 19.9 x 2.5 |
| Dimensions of panel open (inches) | 40 x 53.9 x 3.4 | 32.5 x 39.8 x 1.4 | 21.7 x 39.8 x 1.3 |
| Weight of kit | 23 kg (51 lbs) | 15 kg (33 lbs) | 9 kg (19.8 lbs) |
| Rating | IP52 | IP52 | IP52 |
*Specifications subject to change without notice.
*Specifications and dimensions may vary slightly based on country of origin.
DIGITAL SOLAR CONTROLLER
| SPECIFICATIONS* | GP-PWM-10-FM | GP-PWM-30-SB |
| Nominal System Voltage | 12V | 12V |
| Max Solar Array Range | 10A | 30A |
| Battery Voltage Range | 6V – 15.5V | 6V – 15.5V |
| Max Solar Panel Input Voltage | 28V | 28V |
| Operating Consumption | 6mA | 10mA |
| Operating Temperature | – 40 to 185ºF / – 40 to 85ºC | – 40 to 185ºF / – 40 to 85ºC |
| Rating | IP50 | IP50 |

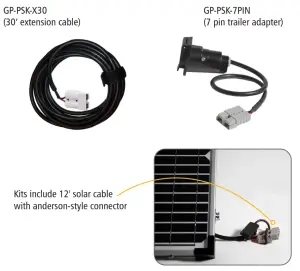

ACCESSORIES
(sold separately)

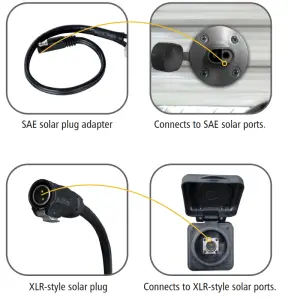

CONNECTIVITY
gpelectric.com
© 2021 Go Power! Doc:
SPEC_GP_PSK90-130-200_RevA_DOMGP
