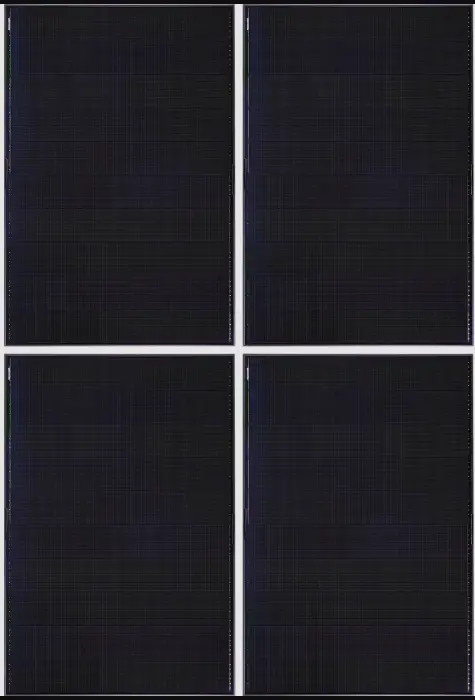

VIESSMANN M400WK Vitovolt 300 Photovoltaic Module Instruction Manual
Safety instructions
Please follow these safety instructions closely to prevent accidents and material losses
Safety instructions explained
Note Details identified by the word “Note” contain additional information.
Installation, commissioning, inspection, maintenance and repairs must only be carried out by an authorised, competent person (heating engineer/installation contractor).
Before working on the appliance/heating system, isolate it from the power supply (e.g. by removing a separate mains fuse or by means of a mains isolator) and safeguard against unauthorised reconnection.
Wear suitable personal protective equipment when carrying out any work.
Repairing components that fulfil a safety function can compromise the safe operation of the system. For replacements, use only original spare parts supplied or approved by Viessmann. Install the components with new gaskets.
Dimensions
Fig: 1
A Junction box
B Connecting cables
C 4 drilled holes 9 x 14 mm
D 4 holes for equipotential bonding, 7 6 mm
| a | mm | 1719 |
| b | mm | 1140 |
| c | mm | 1100 |
| d | mm | 1031 |
| f | mm | 30 |
| g | mm | 30 |
Mounting guidelines
fig:2
| Clamping area | Max. load due to | |
| pressure | suction | |
| A | 5400 Pa(551 kg/m2) | 2400 Pa(245 kg/m2) |
| B | 1800 Pa(184 kg/m2) | 1600 Pa(163 kg/m2) |
| C | 2400 Pa(245 kg/m2) | 2400 Pa(245 kg/m2) |
| D | If using A and D together | |
| 12000 Pa(1224 kg/m2) | 3200 Pa(326 kg/m2) | |
Note
Clamping area D only if secured with 3 rails
Specification
Performance data under STC (standard test conditions)
| Vitovolt 300 | Type | M400WK | M405WK | M410WK | M415WK | M420WK |
| Rated output Pmax. | WP | 400 | 405 | 410 | 415 | 420 |
| Output tolerance | W | 0/+5 | 0/+5 | 0/+5 | 0/+5 | 0/+5 |
| MPP voltage Umpp | V | 38.6 | 38.7 | 38.8 | 38.9 | 39.0 |
| MPP current Impp | A | 10.36 | 10.47 | 10.57 | 10.67 | 10.77 |
| Open circuit voltage Uoc | V | 46.4 | 46.5 | 46.6 | 46.7 | 46.8 |
| Short circuit current Isc | A | 10.97 | 11.02 | 11.07 | 11.12 | 11.17 |
| Module efficiency | % | 20.41 | 20.66 | 20.92 | 21.17 | 21.43 |
For measuring tolerances, see datasheet
- Standard test conditions (STC):
- Insolation: 1000 W/m3
- Cell temperature: 25 °C
- Air mass: AM 1.5
Commissioning
“Vitovolt” installation and service instructions
