G11127930 Linear Compact Switch and High Output
Instruction Manual

Contents hide

1 LINEAR COMPACT SWITCH

2 LINEAR COMPACT HIGH OUTPUT

3 Documents / Resources

3.1 References

4 Related Posts

LINEAR COMPACT SWITCH

	EAN	l x w x h [mm]	W	lm	lm/W	K	IP	IK	ON OFF
LN COMP SWITCH 300 4W/3000K	4058075106079	313 x 28 x 36	4	400	100	3000	20	03
LN COMP SWITCH 300 4W/4000K	4058075106093	313 x 28 x 36	4	450	110	4000	20	03
LN COMP SWITCH 600 8W/3000K	4058075106116	573 x 28 x 36	8	800	100	3000	20	03
LN COMP SWITCH 600 8W/4000K	4058075106130	573 x 28 x 36	8	800	100	4000	20	03
LN COMP SWITCH 900 12W/3000K	4058075106192	873 x 28 x 36	12	1200	100	3000	20	03
LN COMP SWITCH 900 12W/4000K	4058075106215	873 x 28 x 36	12	1200	100	4000	20	03
LN COMP SWITCH 1200 14W/3000K	4058075106154	1173 x 28 x 36	14	1400	100	3000	20	03
LN COMP SWITCH 1200 14W/4000K	4058075106178	1173 x 28 x 36	14	1500	100	4000	20	03
LN COMP SWITCH 1500 17W/3000K	4058075683341	1473 x 28 x 36	17	1800	106	3000	20	03
LN COMP SWITCH 1500 17W/4000K	4058075683365	1473 x 28 x 36	17	1900	112	4000	20	03

LINEAR COMPACT HIGH OUTPUT

	EAN	l x w x h [mm]	W	lm	lm/W	K	IP	IK	ON OFF
LN COMP HO 600 10W/3000K	4058075106277	573 x 24 x 36	10	1000	100	3000	20	03	–
LN COMP HO 600 10W/4000K	4058075106291	573 x 24 x 36	10	1000	100	4000	20	03	–
LN COMP HO 900 15W/3000K	4058075106239	873 x 24 x 36	15	1500	100	3000	20	03	–
LN COMP HO 900 15W/4000K	4058075106253	873 x 24 x 36	15	1500	100	4000	20	03	–
LN COMP HO 1200 20W/3000K	4058075106314	1173 x 24 x 36	20	2000	100	3000	20	03	–
LN COMP HO 1200 20W/4000K	4058075106338	1173 x 24 x 36	20	2000	100	4000	20	03	–
LN COMP HO 1500 25W/3000K	4058075106352	1473 x 24 x 36	25	2500	100	3000	20	03	–
LN COMP HO 1500 25W/4000K	4058075106376	1473 x 24 x 36	25	2500	100	4000	20	03	–

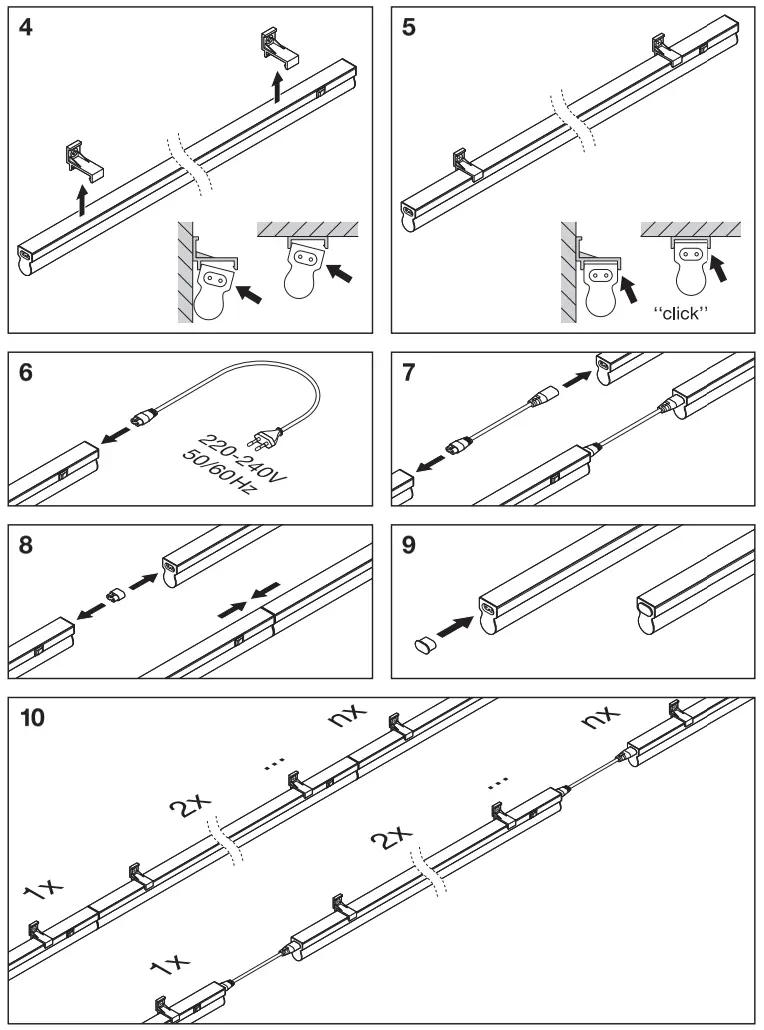

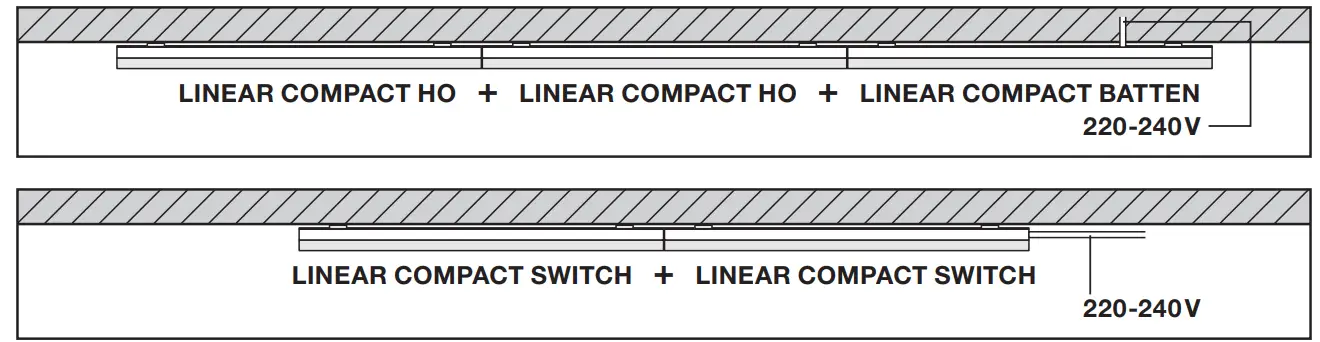

LINEAR COMPACT SWITCH / HIGH OUTPUT

	n
LINEAR COMPACT SWITCH 300	10
LINEAR COMPACT SWITCH / HO 600	10
LINEAR COMPACT SWITCH / HO 900	10
LINEAR COMPACT SWITCH / HO 1200	10
LINEAR COMPACT SWITCH / HO 1500	10

	EAN	(°C)	VAC	Hz	PF		Ra
LN COMP SWITCH 300 4W/3000K	4058075106079	-20…+40	220-240 V	50/60 Hz	> 0.5	140°	> 80	0.1 kg
LN COMP SWITCH 300 4W/4000K	4058075106093	-20…+40	220-240 V	50/60 Hz	> 0.5	140°	> 80	0.1 kg
LN COMP SWITCH 600 8W/3000K	4058075106116	-20…+40	220-240 V	50/60 Hz	> 0.5	140°	> 80	0.2 kg
LN COMP SWITCH 600 8W/4000K	4058075106130	-20…+40	220-240 V	50/60 Hz	> 0.5	140°	> 80	0.2 kg
LN COMP SWITCH 900 12W/3000K	4058075106192	-20…+40	220-240V	50/60 Hz	> 0.5	140°	> 80	0.3 kg
LN COMP SWITCH 900 12W/4000K	4058075106215	-20…+40	220-240V	50/60 Hz	> 0.5	140°	> 80	0.3 kg
LN COMP SWITCH 1200 14W/3000K	4058075106154	-20…+40	220-240 V	50/60 Hz	> 0.5	140°	> 80	0.4 kg
LN COMP SWITCH 1200 14W/4000K	4058075106178	-20…+40	220-240 V	50/60 Hz	> 0.5	140°	> 80	0.4 kg
LN COMP SWITCH 1500 17W/3000K	4058075683341	-20…+40	220-240 V	50/60 Hz	> 0.5	140°	> 80	0.5 kg
LN COMP SWITCH 1500 17W/4000K	4058075683365	-20…+40	220-240 V	50/60 Hz	> 0.5	140°	> 80	0.5 kg

	EAN	(°C)	VAC	Hz	PF		Ra
LN COMP HO 600 10W/3000K	4058075106277	-20…+40	220-240 V	50/60 Hz	> 0.5	140°	> 80	0.2 kg
LN COMP HO 600 10W/4000K	4058075106291	-20…+40	220-240 V	50/60 Hz	> 0.5	140°	> 80	0.2 kg
LN COMP HO 900 15W/3000K	4058075106239	-20…+40	220-240V	50/60 Hz	> 0.5	140°	> 80	0.3 kg
LN COMP HO 900 15W/4000K	4058075106253	-20…+40	220-240V	50/60 Hz	> 0.5	140°	> 80	0.3 kg
LN COMP HO 1200 20W/3000K	4058075106314	-20…+40	220-240 V	50/60 Hz	> 0.5	140°	> 80	0.4 kg
LN COMP HO 1200 20W/4000K	4058075106338	-20…+40	220-240 V	50/60 Hz	> 0.5	140°	> 80	0.4 kg
LN COMP HO 1500 25W/3000K	4058075106352	-20…+40	220-240 V	50/60 Hz	> 0.9	140°	> 80	0.6 kg
LN COMP HO 1500 25W/4000K	4058075106376	-20…+40	220-240 V	50/60 Hz	> 0.9	140°	> 80	0.6 kg

G11127930 C10449057
01.09.21
LEDVANCE GmbH
Steinerne Furt 62
86167 Augsburg, Germany
www.ledvance.com
LEDVANCE Ltd, Aquila House,
Delta Crescent, Westbrook,
Warrington, WA5 7NR,
United Kingdom
