Karlik IWP-1 Illuminating LED Module For Switches Instruction Manual
Characteristics of the module
Illuminating module LED is intended for installation by the customer himself in switches of ICON serie of the following types: IWP-1, IWP-2, IWP-3, IWP-3.1, IWP-4, IWP-5, IWP-6, IWP-6.1, IWP-9, IWP-10.1, IWP10.11, IWP-4.1, IWP-44.1, IWPUS-1, IWPUS-2, IWPUS-3, IWPUS-3.1, IWPUS-4, IWPUS-5, IWPUS-6, IWPUS-6.1, IWPUS-9, IWPUS-10.1, IWPUS-10.11, IWPUS-4.1, IWPUS-44.1 and their colour variants
Note! Do not use with switches of the following types: IWP-7, IWP-8, IWP-8.1, IWP-44.2, IWP-66, IWP-66.1, IWP-88, IWP-88.1, IWP-33, IWP-33.1, IWP-10.2, IWP-10.21, IWPUS-8, IWPUS-44.2, IWPUS-33, IWPUS-33.1, IWPUS-10.2, IWPUS-10.21
Way of connection
Illuminating module LED shall be set parallelly in a slot in the switch box (according to the picture). Next, prior to installation of button/buttons, the external frame shall be installed.
Note! Assembly shall be held by a suitably qualified person with deactivated voltage and shall meet the national safety standards.

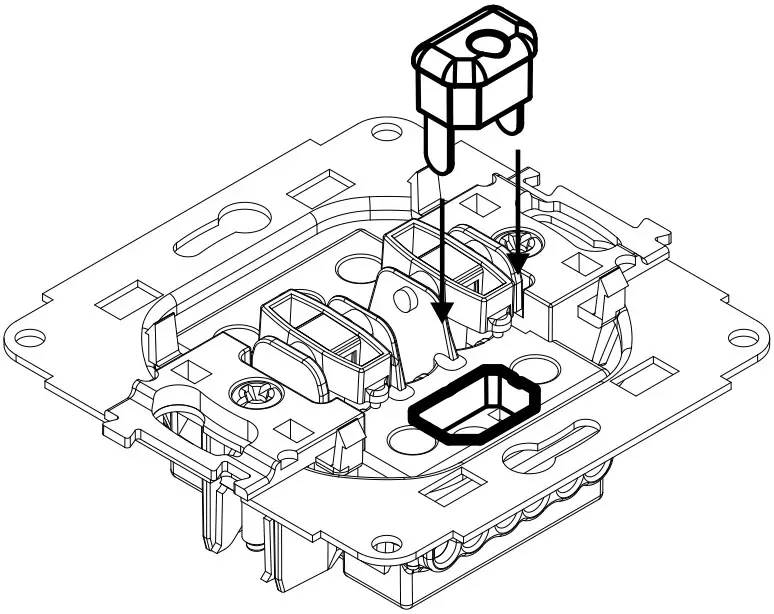

The way of setting is presented on the schema below
Colours available for the illuminating module LED
