X-LED-LINE
flexible LED-Light module system
SAFETY INSTRUCTIONS
Devices must be installed by qualified personnel in compliance with all pertaining regulations.
- Always refer to the technical parameters in the data sheet. All items are subject to technical modification.
- Before installing this product, please visit the product page at www.x-led.de for the latest version of the installation instructions.
- Refer to the attached User Manual as a basis for correct use.
- Consult circuit diagram for correct wiring.
- Note! Before attempting any work, make sure device is separated from main power (230 V). Protect device from moisture.
- Make sure protection against line voltage shock is provided during installation. We recommend securing the installation by RCD circuit breakers.
- Note that adjacent parts or devices must be temperature-proof up to 90°C.
- Do not operate electronic devices with inductive consumers (fluorescent lamps, gas discharge lamps, ventilators, etc.) in the same electric circuit. Activation of inductive consumers can cause damage to the operating device.
- Do not place heat insulation material on the device.
- Mind the operating temperatures of the device according to the technical data sheet.
- Before drilling the mounting holes or cutting the lamp cutout, take precautions not to harm or damage any power lines underneath.
- Do not solder cable strands. Use cable strand sleeves instead.
- Note and mind voltage label on the device.
- Make sure flawless electrical connectivity is provided.
- Do not cross primary and secondary lines.
- Do not interconnect secondary lines of power supply blocks.
- The device must only be powered up with lamp connected! Connecting the lamp to the powered-up device can cause damage to the lamp! (voids product warranty!)
- No modification allowed. No liability will be assumed in case of damage incurred by alteration, improper use or faulty installation.

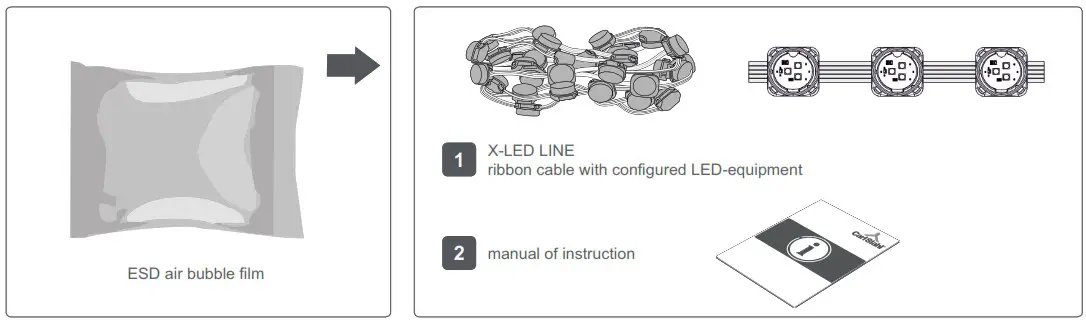

SCOPE OF SUPPLY
Check completeness of supplied device as shown immediately after receipt.

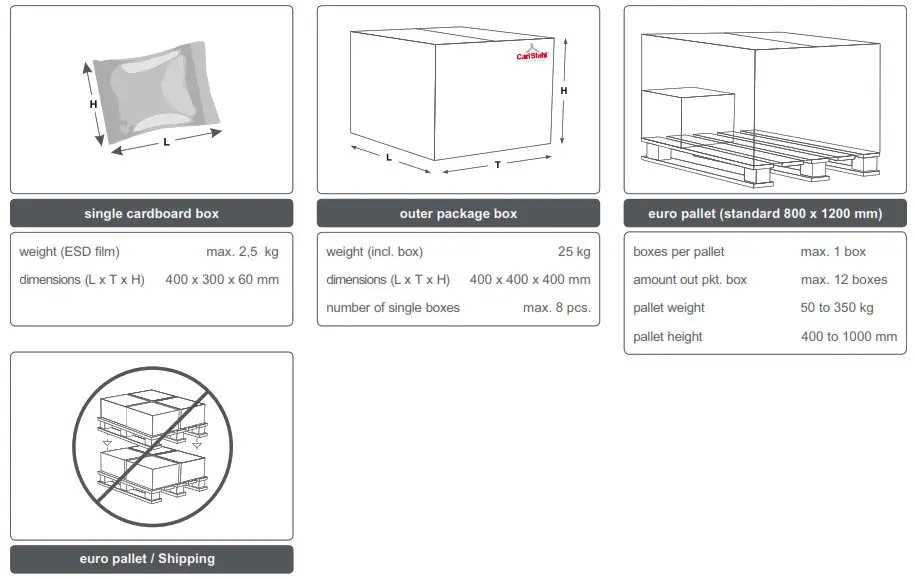

TRANSPORT AND SHIPPING
Our products are shipped in the following formats Keep dry and protect from damage!
TECHNICAL SPECIFICATION
| color resolution | 8 BIT |
| color range | R, G, B, (W) |
| control protocol | DMX512-A (DIN-Norm: DIN 56930 | USITT-Standard) |
| programming | Standard DMX-Adr.: 1, 169, 337 |
| operating voltage | 17 – 22 VDC |
| power consumption | max. 1,0 W / Pixel (RGB) max. 1,3 W / Pixel (RGBW) |
| beam angle | 120° (all directions) / 60° (all directions) |
| light output | 11 cd/Pixel – 42 cd/Pixel |
| color temperature | 4000 K |
| color range | white |
| control protocol | DMX512-A (DIN-Norm: DIN 56930 | USITT-Standard) |
| programming | Standard DMX-Adr.: 1, 169, 337 |
| operating voltage | 17 – 22 VDC |
| power consumption | max. 0,8 W / Pixel |
| beam angle | 120° (all directions) / 60° (all directions) |
| light output | 24 cd/Pixel – 53 cd/Pixel |
TECHNICAL SPECIFICATION (General)
| number of LED-DOTs | max. 56 DOTs (RGB / W) / max. 42 DOTs (RGBW) |
| LED-Dot dimensions | 24 mm x 24 mm x 16 mm (B x L x H) |
| LED-Dot wight | ca. 8 g |
| LED-Dot housing color | black, translucent |
| cable length | max. 35 m (without supply line) max. 60 m (with supply line) |
| cable configuration | variable LED-Dot distribution, min. spacing 40 mm |
| cable dimensions | 9,25 x 1,85 mm (B x H) |
| cable weight | ca. 45 g/lfm |
| cable color | black, translucent |
| protection level | IP65 |
| environment temperature | operation: -30 °C / +50 °C | storage: -20 °C / +90 °C |
| certification | CE / FCC / ROHS compliant |
| fire protection | UL 94 HB |
| Frame refresh rate | > 2000 Hz |
| protection category | III |

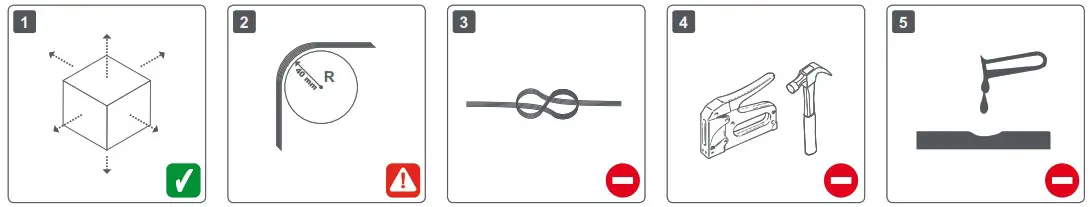

INSTALLATION INSTRUCTIONS
- Fixture can be installed and operated in any possible position.
- Minimum bending radius 40 mm (radius r = minimum bending radius)
- Install cable load-free (no kinking, twisting, squeezing or knotting)
- Mechanically damaged cables must not be put into operation.
- Do not use aggressive substances or solvents for mounting. Do not pull cable away from node

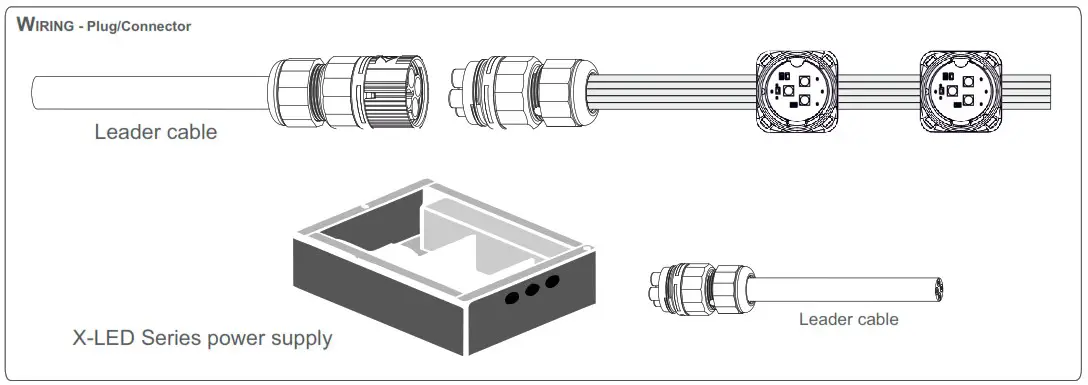

INSTALLATION AND COMMISSIONING
Use X-LED series power supply units only.
Wiring and installation according to (X-LED Plug Assembly Instruction)
6. Use caution when handling the cables in sub-freezing temperatures
Ensure that main power supply is off before installing or wiring. Do not attempt to install or use a X-LED Line / Power supply until you read and understand the installation instructions and safety labels. Do not use a X-LED Line / Power supply if the housing, cable, or sealing are damaged. Do not use a X-LED Line / Power supply for any voltage which is not rated. Do not exceed the specified voltage and current input. Do not hot swap LED modules or any other electric components. Ensure that power is off before connecting or disconnecting. Ensure that the X-LED Lines / Power supplies is securely attached, properly mounted, and free of excessive vibration.
SERVICING AND MAINTENANCE
Clean device from dirt and residue regularly. Use solvent-free cleaning agents only and do not employ aggressive chemicals or high-pressure ‚ cleaner. Operate device only after complete drying.
CUSTOMER SERVICE
Please check all trouble-shooting measures given in this operating manual.
For any further questions please contact our hotline.
Tel: +49 (0) 7162/948 150 300
Fax: +49 (0) 7162/948 150 305
MANUFACTURER
Carl Stahl ARC GmbH Siemensstraße 2 D-73079 Süssen
[email protected]
www.x-led.de
CONFORMITY
Our devices are certifi ed according to the following European and American Standards
NOTE:
This equipment has been tested and found to comply with the limits for a class a digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of these equipment in a residental area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
„This Class (A) digital apparatus complies with Canadian ICES-003”
COPYRIGHT:
©Carl Stahl ARC GmbH. All rights reserved.
Specifications are subject to change without notice.
No representation or warranty as to the accuracy or completeness of the information included herein is given and any liability for any action in reliance thereon is disclaimed.
All trademarks are owned by Carl Stahl ARC GmbH or their respectives owners.
WARRANTY:
We provide for our LED-Dots ( XLED-DOT-…-…), LED-Lines ( XLED-LINE-…-…) and power supply units ( XLED-PS-…-…) a warranty of 5 years.
Any other system-related products (e.g. products from other manufacturers) are covered by their standard warranty.
Within the warranty period, a failure rate of 3 % could occur. This failure rate is no claim for warranty.
Any visual changes due tu UV, salt, or other environmental impacts, which doesn´t effect the functional behavior of the product, aren´t covered in this warranty.
We advise to order a corresponding number of spare parts. For professional replacement, we provide a training by our specialists.
The requirement for our warranty is compliance with our installation and maintenance guidelines.
Due to side and application conditions, problems can occur, which are not covered by the warranty, except they were named specifically by the client in advance. The installation has to be made by trained and skilled workers.
For all further conditions and claims our General Sales and Planning Terms are valid. They are available for Download on our website.
