WL1400 LED Work Light
Instruction Manual
WL1400 LED Work Light
Item no: 2481636

Dismantling recommendations

• Disconnect from power supply.
• Ask help from a professional if needed.

Dismantling instructions

Step 1

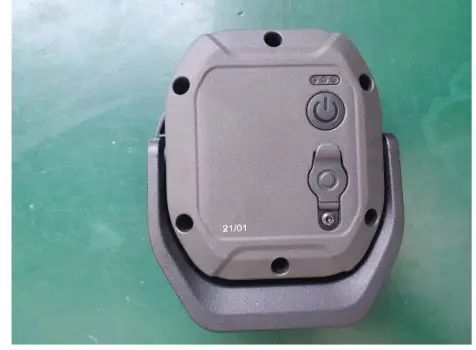

Overview.

Step 2

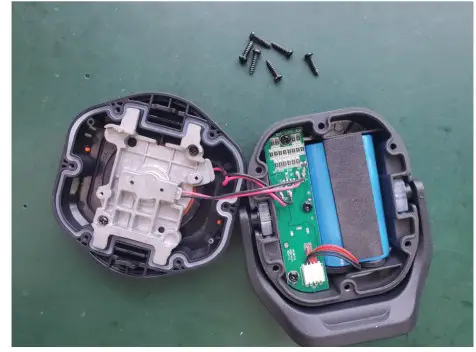

Remove 6x screws from back casing.

Step 3

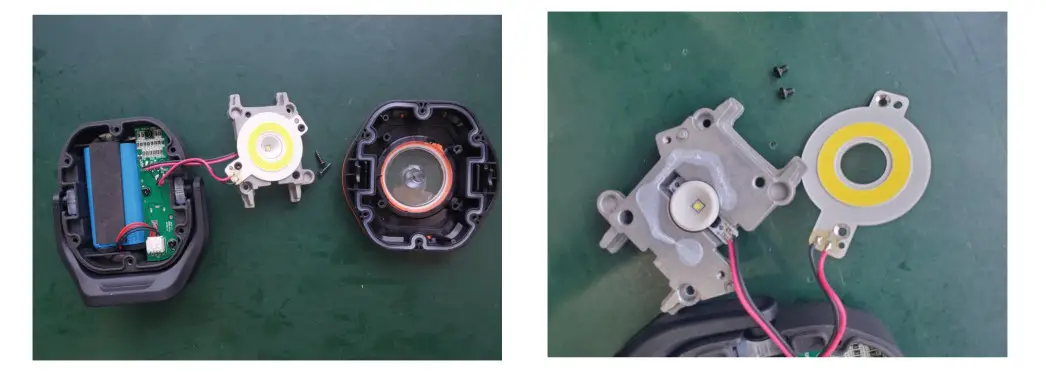

Remove 2x screws and carefully remove COB and SMD.

Step 4

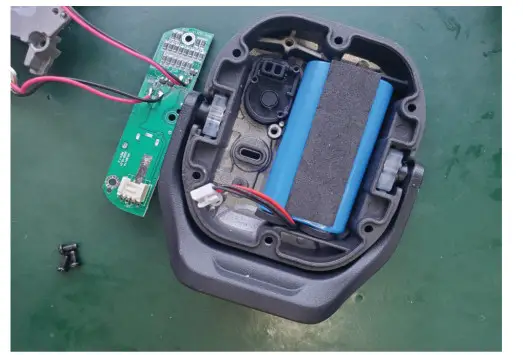

Remove 3x screws and carefully remove the PCB.

Step 6

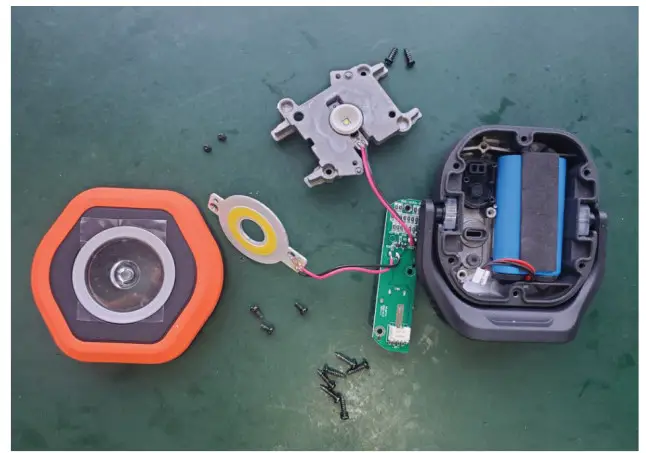

Disassembled
