LED Work Light
Item no: 2638156
Dismantling recommendations
- Disconnect from power supply.
- Ask help from a professional if needed.
Dismantling instructions

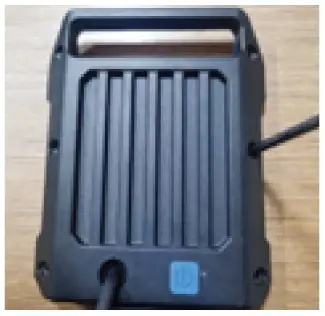

Step 1
Unscrew 6x housing cover screws.

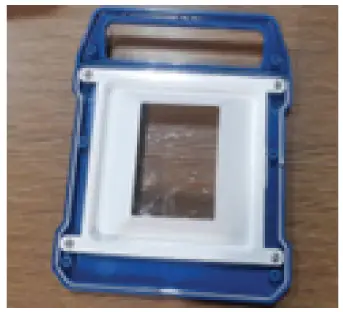

Step 2
Remove the front panel.
Step 3
Unsolder the connection between the power cord and light board.
Step 4
Unscrew 4x light source board screws.

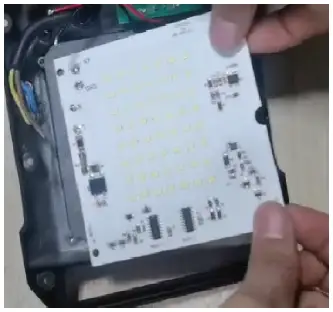

Step 5
Remove the light source.
