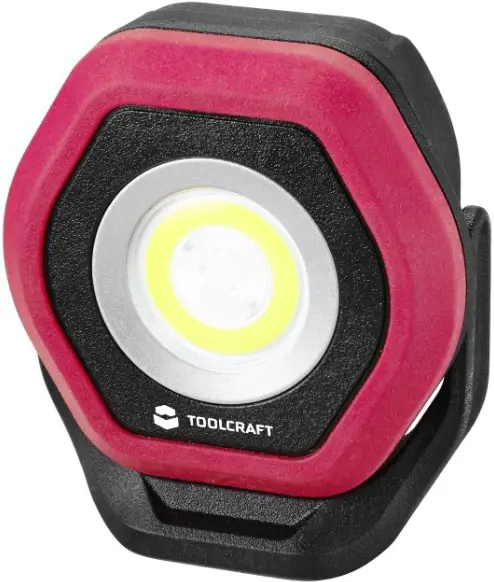

CONRAD WL700 LED Work Light Instruction Manual

Dismantling recommendations

• Disconnect from power supply.
• Ask help from a professional if needed.

Dismantling instructions

Step 1

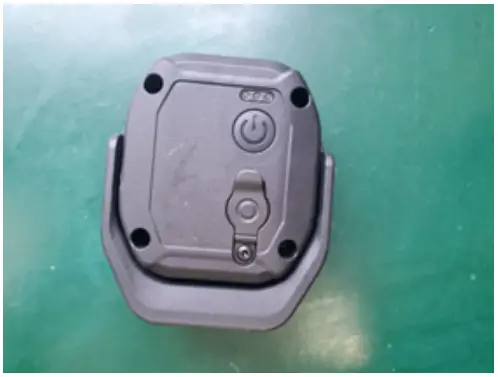

Overview

Step 2
Remove 4x screws

Step 3

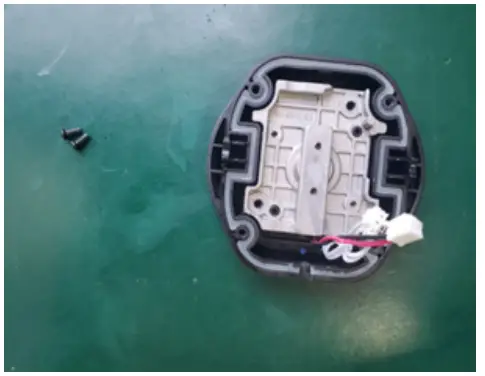

Remove 2x screws

Step 4

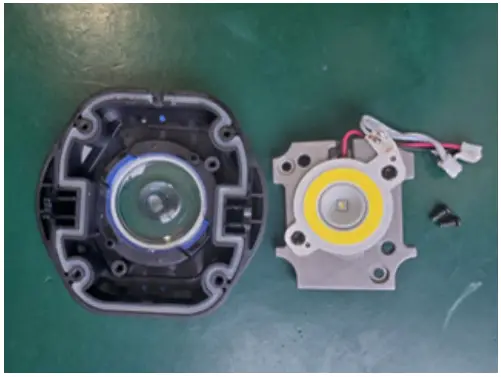

Remove COB and LED

Step 5

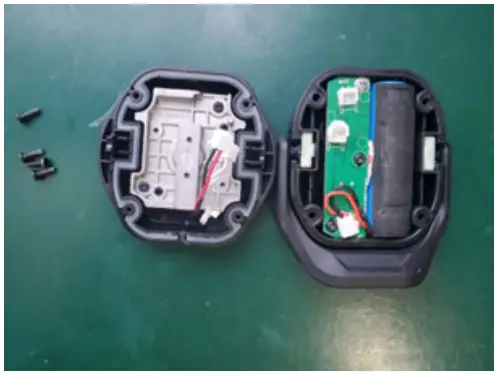

Remove 3x screws and disconnect the PCB
