VISAGE C01
USER MANUAL
Professional Unidirectional
Headset Microphone
VISAGE C01 Professional Unidirectional Headset Microphone
Dear customer,
First of all, thanks far purchasing a SOUNDSATION® product. Our mission is to satisfy all possible needs of musical instrument and professional audio and lighting users, offering a wide range of products based on the latest technologies.
We hope you will be satisfied with this item and, if you want to collaborate, we are looking for a feedback from you about the operation of the product and possible improvements to introduce in the next future. Go to our website www.soundsationmusic.com and send an e-mail with your opinion, this will help us to build instruments ever closer to customer’s real requirements.
One last thing: read this manual before using the instrument, an incorrect operation can cause damages to you and to the unit. Take care!
The SOUNDSATION Team
INTRODUCTION
Soundsation Visage C01 Headset microphone is the right balance between elegance, flexibility, discretion and strength. It allows singers, musicians, actors, public speakers, broadcast professionals, to move freely during their performance and always guarantee an accurate capture of the voice. The frequency response and the excellent plosive attenuation, allow you to obtain a warm and sparkling sound, without unnatural emphasis.
FEATURES
- Back-electret high-performance capsule for professional audio quality
- Designed for withstand very close sound sources (provides off-axis rejection to high SPL sounds)
- Cardioid pattern for accurate voice capture and minimum room noise
- Waterproof selected material for maximum duration in any application
- Microphone arm and cable are easily attached to frame
- Special rubber material ear-set for perfect adherence to ear shape
- Left or right microphone placement according to user preference
- Black or Beige Color
- 5 connector types available
- Headset bag for better preserve the microphone
POWER & CONNECTORS
VISAGE C01 is available in black or beige finish, and requires phantom power of 1.5V to 9V. It is specifically designed to work with a wide range of wireless pocket transmitters. Check the list below to see which model is suitable for your wireless system.

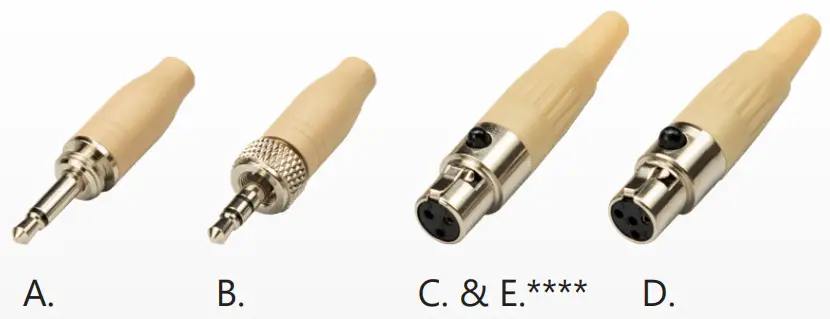

| #SKU | Model | Color | Connector |
| J633J | VISAGE-C01A BK | Black  | A. 1.8” TS mini-Jack with thread |
| J637J | VISAGE-C01A BG | Beige  | |
| J634J | VISAGE-C01B BK | Black | B. 1.8” TRS mini-Jack with locking (Sennheiser® )* |
| J638J | VISAGE-C01B BG | Beige | |
| J635J | VISAGE-C01C BK | Black | C. 3-Pin Mini-XLR (AKG® )** |
| J639J | VISAGE-C01C BG | Beige | |
| J636J | VISAGE-C01D BK | Black | D. 4-Pin Mini-XLR (SHURE® )*** |
| J640J | VISAGE-C01D BG | Beige | |
| J821J | VISAGE-C01E BK | Black | E. 3-Pin Mini-XLR (Soundsation WF-D190/D290) |
| J822J | VISAGE-C01E BG | Beige |
* Sennheiser® is a registered trademark of Sennheiser electronic GmbH & Co. KG
** AKG® is a registered trademark of Harman International Industries, Inc.
*** SHURE® is a registered trademark of Shure Inc.
**** C and E models share same connector, but internal wiring is different.
SOUNDSATION COMPATIBILITY chart
The following table shows all SOUNDSATION products and the related connector used on bodypack transmitters, in order to help users to choose the right VISAGE C01 version. For further details, please visit www.soundsationmusic.com.
| Series | Model | Bodypack Connector |
| UHF Systems – Multi Channels | ||
| Wire-Free | WF-D190P | E |
| Wire-Free | WF-D290HP | E |
| Wire-Free | WF-U2600HP | A |
| Wire-Free | WF-U2300HP | A |
| Wire-Free | WF-U2300PP | A |
| Wire-Free | WF-U1300P | A |
| Wire-Free | WF-U216HP | A |
| Wire-Free | WF-U216PP | A |
| Wire-Free | WF-U24HP | A |
| Wire-Free | WF-U24PP | A |
| UHF Systems – Single Channel | ||
| Wire-Free | WF-U11PA | A |
| Wire-Free | WF-U11PB | A |
| Wire-Free | WF-U11PC | A |
| Wire-Free | WF-U11PD | A |
| VHF Systems | ||
| Wire-Free | WF-V11PA | A |
| Wire-Free | WF-V11PB | A |
| Wire-Free | WF-V11PC | A |
| Wire-Free | WF-V11PD | A |
| Wire-Free | WF-V21PPA | A |
| Wire-Free | WF-V21PPB | A |
| Portable PA Systems | ||
| PocketLive | PocketLive U16HBT | A |
| PocketLive | PocketLive U16P-KIT | A |
| Go-Sound AMW | Go-Sound Pocket MIC | A |
STORAGE
After use, wipe it with a clean cloth and place in the supplied bag.
In any case, please be noticed that a condenser capsule is extremely sensitive to moisture.

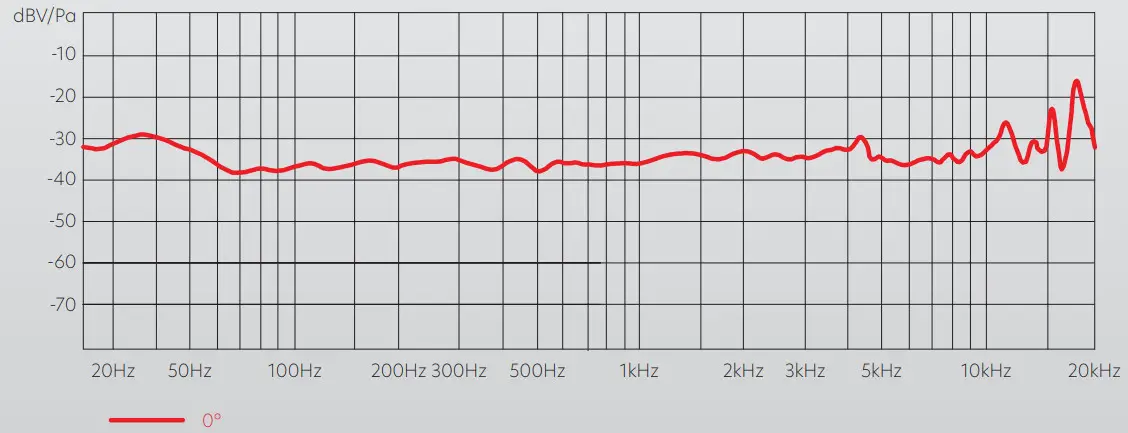

FREQUENCY RESPONSE CHART

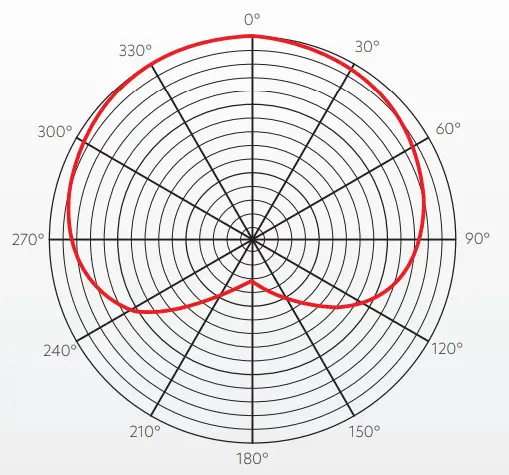

POLAR PATTERN CHART
TECHNICAL SPECIFICATIONS
| Element | Back-Electret Capsule |
| Directivity | Unidirectional |
| Frequency Range | 45Hz~19.6kHz |
| Sensitivity | -46dBV(±3dB) |
| Maximum SPL | 125dB |
| Impedance | 200Ω |
| Operation Voltage | DC 1.5~9V |
| Connector Type | A= 1.8” TS mini-Jack with thread |
| B= 1.8” TRS mini-Jack with locking (Sennheiser® type) | |
| C= 3-Pin Mini-XLR (AKG® type) | |
| D= 4-Pin Mini-XLR (SHURE® type) | |
| E = 3-Pin Mini-XLR (Soundsation D190/D290 type) | |
| Cable Length | 1.5m |
| Color | Black or Beige Color |
| Headset Weight | 28g |
| Packing Size | 162 x 122 x 54mm |
| Packing Weight | 190g |
Technical specifications and appearance subject to change without notice. The information contained herein is correct at the time of printing.
WARRANTY AND SERVICE
All SOUNDSATION products feature a limited two-year warranty. This two-year warranty is specific to the date of purchase as shown on your purchase receipt.
The following cases/components are not covered from the above warranty:
- Any accessories supplied with the product
- Improper use
- Fault due to wear and tear
- Any modification of the product effected by the user or a third party
SOUNDSATION shall satisfy the warranty obligations by remedying any material or manufacturing faults free of charge at SOUNDSATION’s discretion either by repair or by exchanging individual parts or the entire appliance. Any defective parts removed from a product during the course of a warranty claim shall become the property of SOUNDSATION.
While under warranty period, defective products may be returned to your local SOUNDSATION dealer together with original proof of purchase. To avoid any damages in transit, please use the original packaging if available. Alternatively you can send the product to SOUNDSATION SERVICE CENTER – Via Enzo Ferrari , 10 – 62017 Porto Recanati – Italy . In order to send a product to service center you need an RMA number. Shipping charges have to be covered by the owner of the product.
For further information please visit www.soundsationmusic.com
WARNING
PLEASE READ CAREFULLY – EU and EEA (Norway, Iceland and Liechtenstein) only
This symbol indicates that this product is not to be disposed of with your household waste, according to the WEEE Directive (2202/96/EC) and your national law.
This product should be handed over to a designated collection point, e.g., on an authorized one-for-one basis when you buy a new similar product or to an authorized collection site for recycling waste electrical and electronic equipment (WEEE). Improper handling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the effective usage of natural resources.
For more information about where you can drop off your waste equipment for recycling, please contact your local city office, waste authority, approved WEEE scheme or your household waste disposal service.
This product is imported in EU by
FRENEXPORT SPA – Via Enzo Ferrari, 10 – 62017 Porto Recanati – Italy
