Karlik Mini Series Illuminating Module Led For Switches Instruction Manual

Mini Series Illuminating Module LED for Switches

Product Information

The Assembly Manual Illuminating Module LED is designed for
switches of the Mini Series. It provides illuminated indication for
switches and comes in various colors.

Colours Available

The illuminating module LED is available in the following
colors:

• White
• Blue
• Green
• Red

Product Usage Instructions

To use the Illuminating Module LED for switches of the Mini
Series, follow these steps:

1. Select the desired color for the illuminating module LED from
   the available options: white, blue, green, or red.
2. Ensure that the switch of the Mini Series is compatible with
   the illuminating module LED.
3. Refer to the switch’s user manual for instructions on how to
   install and remove the illuminating module LED.
4. Carefully attach the illuminating module LED to the switch
   according to the provided instructions.
5. Once properly attached, test the illumination by turning on the
   switch.
6. If necessary, adjust the position of the illuminating module
   LED to achieve optimal illumination.
7. Refer to the switch’s user manual for instructions on how to
   troubleshoot any issues related to the illuminating module
   LED.

ASSEMBLY MANUAL ILLUMINATING MODULE LED FOR SWITCHES OF MINI SERIES

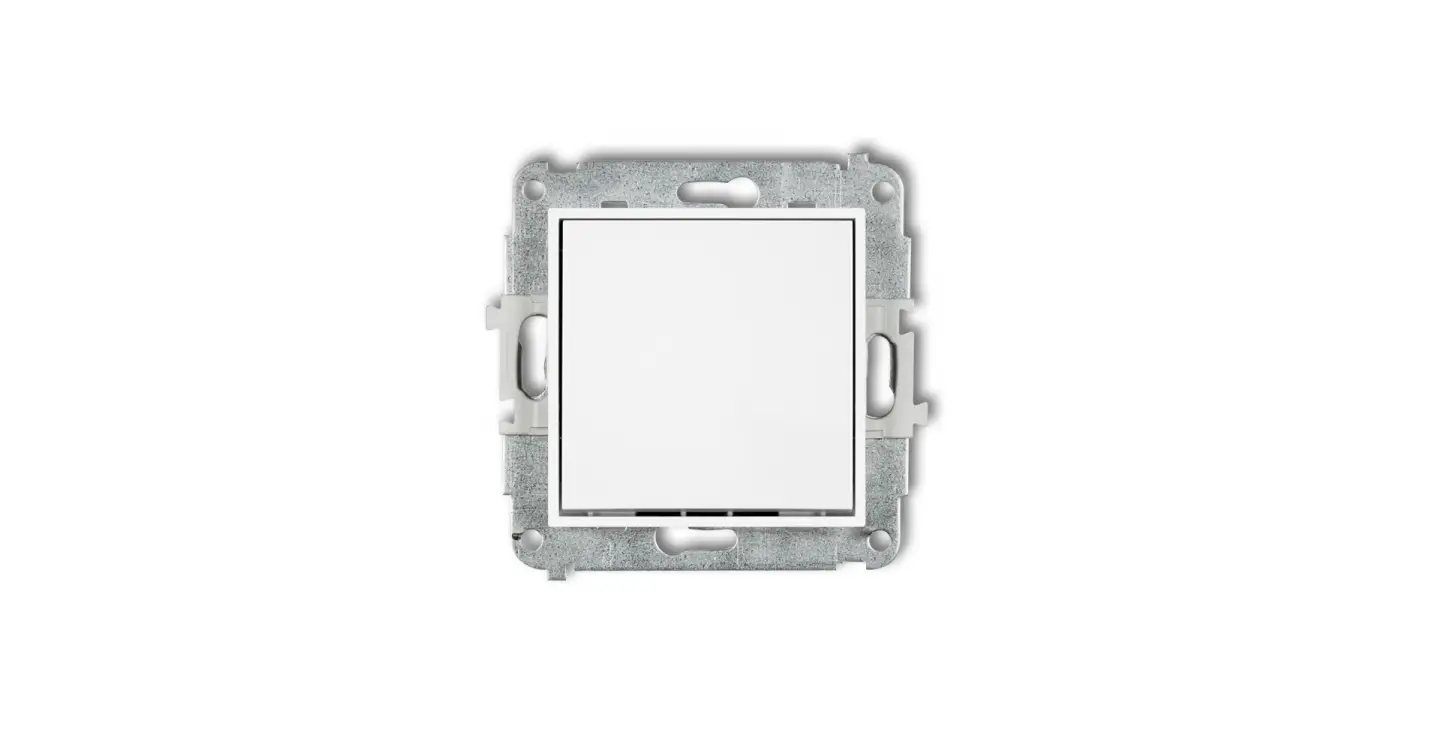

Characteristics of the module Illuminating module LED is intended for installation by the customer himself in switches of ICON serie of the following types: MWP-1, MWP-2, MWP-3, MWP-3.1, MWP-4, MWP-5, MWP-6, MWP-6.1, MWP-9, MWP10.1, MWP-10.11, MWP-4.1, MWP-44.1, MWPUS-1, MWPUS-2, MWPUS-3, MWPUS-3.1, MWPUS-4, MWPUS5, MWPUS-6, MWPUS-6.1, MWPUS-9, MWPUS-10.1, MWPUS-10.11, MWPUS-4.1, MWPUS-44.1 and their colour variants. Note! Do not use with switches of the following types: MWP-7, MWP-8, MWP-8.1, MWP-44.2, MWP-66, MWP-66.1, MWP-88, MWP-88.1, MWP-33, MWP-33.1, MWP-10.2, MWP-10.21, MWPUS-8, MWPUS-44.2, MWPUS-33, MWPUS-33.1, MWPUS-10.2, MWPUS-10.21. Way of connection Illuminating module LED shall be set parallelly in a slot in the switch box (according to the picture). Next, prior to installation of button/buttons, the external frame shall be installed. Note! Assembly shall be held by a suitably qualified person with deactivated voltage and shall meet the national safety standards.
Colours available for the illuminating module LED
from left: white, blue, green, red
1 I 1
