REPAIR SHEET
BRAND
RYOBI
MODEL NO.
P3240
DESCRIPTION
18 Volt Wet/Dry Vac

ONE WORLD TECHNOLOGIES, INC.
P.O. Box 1288, Anderson, SC 29622
• 1-800-525-2579
• www.ryobitools.com
The model number and manufacturing location will be found on a label attached to the product. Always mention this information in all communications regarding this product and when ordering parts.

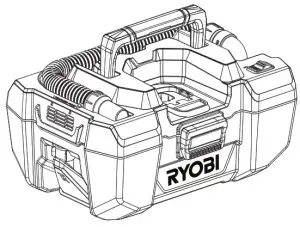

P3240

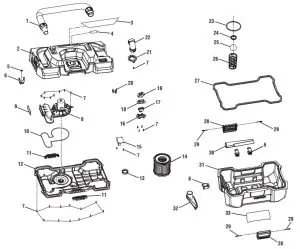

KEY NO. | PART NO. | DESCRIPTION | QTY. |
| 1 | 312712001 | Hose Assembly | 1 |
| 2 | 206053004 | Upper Housing w/Handle Assembly (Inc. Key Nos. 3-4) | 1 |
| 3-CN | 941009042 | Data Label | 1 |
| 3-ID | 941007133 | Data Label | 1 |
| 4 | 941002318 | ONE+ Label | 1 |
| 5 | 661991001 | Screw (M3 x 8 mm) | 1 |
| 6-CN | 533185001 | Nozzle Clip | 4 |
| 6-ID | 533185004 | Nozzle Clip | 4 |
| 7 | 660203062 | Screw (M3 x 12 mm, Pan Hd.) | 27 |
| 8-CN | 206053008 | Motor and Fan Assembly | 1 |
| 8-ID | 206260002 | Motor and Fan Assembly | 1 |
| 9 | 568005001 | Fan Cover Gasket (Small) | 1 |
| 10 | 564413001 | Fan Cover Gasket (Large) | 1 |
| 11-CN | 533181001 | Latch | 2 |
| 11-ID | 533181002 | Latch | 2 |
| 12 | 206053012 | Lower Housing | 1 |
| 13 | 564421001 | Connector Gasket | 1 |
| 14-CN | 206053003 | Filter Assembly | 1 |
| 14-ID | 206053003 | Filter Assembly | 1 |
| 15-CN | 206053010 | Circuit Board Assembly | 1 |
| 15-ID | N/A | Circuit Board Assembly | — |
| 16 -CN | 533184001 | Switch Bracket | 1 |
| 16-ID | 533184003 | Switch Bracket | 1 |
| 17-CN | 760603001 | Switch | 1 |
| 17-ID | 760271032 | Switch | 1 |
| 18 | 564426001 | Switch Gasket | 1 |
| KEY NO. | PART NO. | DESCRIPTION | QTY. |
| 19-CN | 533183001 | Switch Button | 1 |
| 19-ID | 533183002 | Switch Button | 1 |
| 20 | 302149002 | Contact Plate Holder Assembly | 1 |
| 21-CN | 533177001 | Connector Lock | 1 |
| 21-ID | 533177002 | Connector Lock | 1 |
| 22-CN | 533176001 | Hose Connector | 1 |
| 22-ID | 533176003 | Hose Connector | 1 |
| 23 | 564383001 | Filter Gasket | 1 |
| 24 | 564382002 | Float Ball Gasket | 1 |
| 25 | 580463001 | Float Ball | 1 |
| 26-CN | 533023001 | Float Ball Basket | 1 |
| 26-ID | 533023002 | Float Ball Basket | 1 |
| 27 | 564384001 | Tank Gasket | 1 |
| 28 | 206053005 | Latch Cover Assembly | 1 |
| 29 | 673671001 | Latch Shaft | 4 |
| 30-CN | 533070001 | Crevice Tool | 1 |
| 30-ID | 533070002 | Crevice Tool | 1 |
| 31 | 206053006 | Tank Assembly w/Insert (Inc. Key No. 33) | 1 |
| 32-CN | 533071001 | Floor Nozzle | 1 |
| 32-ID | 533071002 | Floor Nozzle | 1 |
| 33 | 941001501 | Logo Label | 1 |
| Not Shown: | |||
| 995000340 | Operator’s Manual (CN – 961001461) (ID – 961001594) |
If a key number has multiple part numbers, please order the part that corresponds with the country of origin shown on the product’s data label. CN = China ID = Indonesia

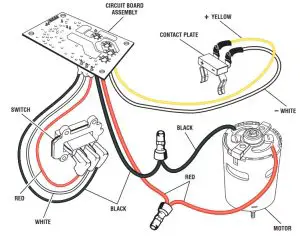

WIRING DIAGRAM — CN

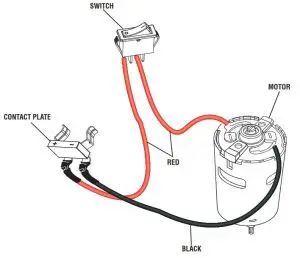

WIRING DIAGRAM — ID
