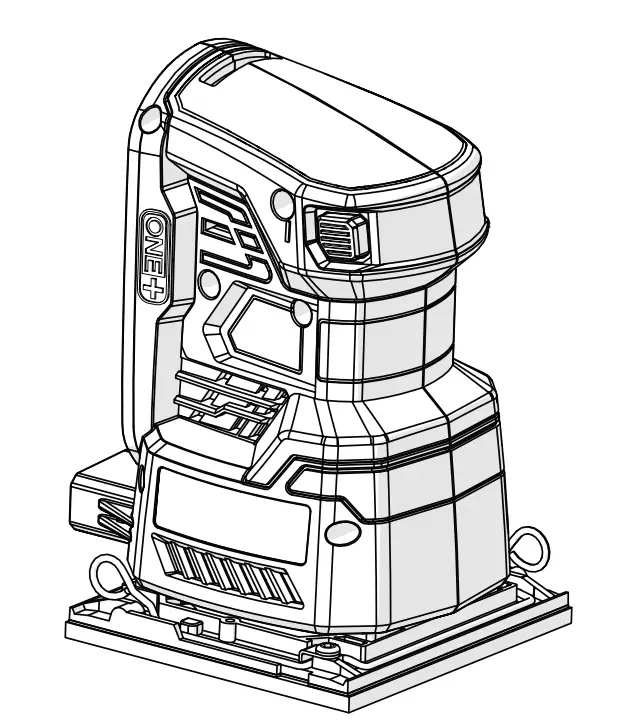

RYOBI P440 18 Volt 1 by 4 Sheet Sander
PARTS LIST
| KEY NO. | PART NO. | DESCRIPTION | QTY. |
| 1 | 660815002 | Screw (M3.5 x 13.5 mm, T10 Torx Pan Hd. S.T.) | 6 |
| 2-CN | 204438001 | Housing Assembly (Inc. Keys Nos. 5 & 19) | 1 |
| 2-VN | 204438004 | Housing Assembly (Inc. Keys Nos. 5 & 19) | 1 |
| 3 | 206548001 | Motor and Switch Assembly | 1 |
| 4 | 532266001 | Actuator | 1 |
| 5-CN | 940114179 | Logo Label | 1 |
| 5-VN | 940140031 | Logo Label | 1 |
| 6 | 642964001 | Fan | 1 |
| 7 | 681053001 | Ball Bearing (6601 2RS CW) | 1 |
| 8 | 660369006 | Screw w/Washer (8-32 x 3/8 in., T20 Torx Pan Hd.) | 1 |
| 9 | 532275001 | Fan Guide | 1 |
| 10 | 660438002 | Screw (M3 x 8 mm, T10 Torx Pan Hd.) | 4 |
| 11 | 660367005 | Screw (6-19 x 5/16 in., T15 Torx Pan Hd.) | 2 |
| 12 | 637874001 | Retaining Plate | 2 |
| 13 | 312399001 | Post Cushion | 2 |
| 14 | 532281001 | Paper Punch | 1 |
| 15 | 695969001 | Paper Clamp | 2 |
| 16 | 661043002 | Screw w/Washer (M3 x 15 mm, T10 Torx Pan Hd.) | 4 |
| 17 | 204441001 | Plate w/Cushion Assembly | 1 |
| 18 | 204440001 | Platen Assembly | 1 |
| 19-CN | 941121858 | Data Label | 1 |
| 19-VN | 941124021 | Data Label | 1 |
| 20 | 204442001 | Dust Bag Assembly | 1 |
| Not Shown: | |||
| 903302001 | Sandpaper (80 Grit) | ||
| 903303001 | Sandpaper (120 Grit) | ||
| 903304001 | Sandpaper (220 Grit) | ||
| 995000125 | Operator’s Manual (961153142) |

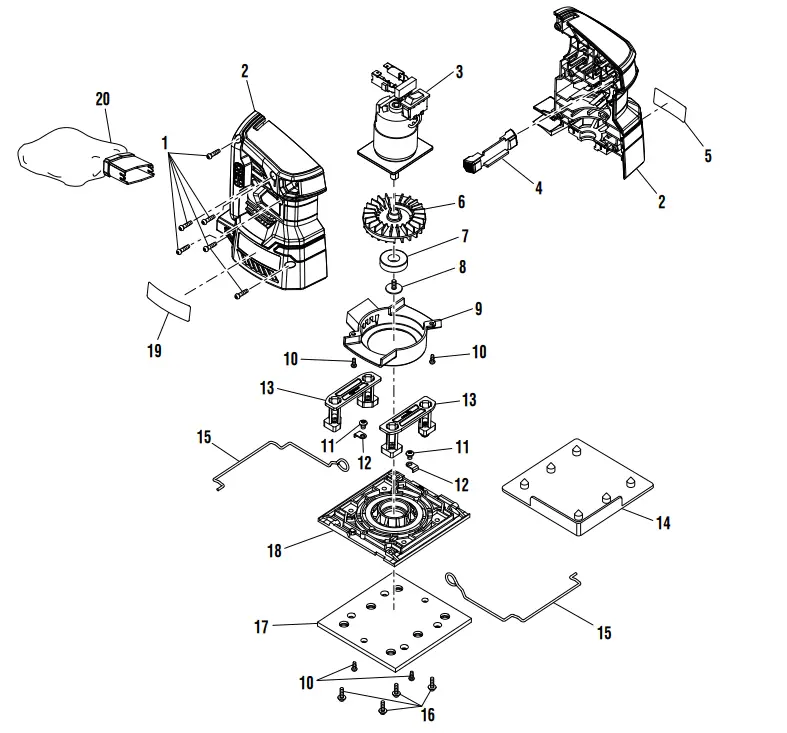

EXPLORER VIEW

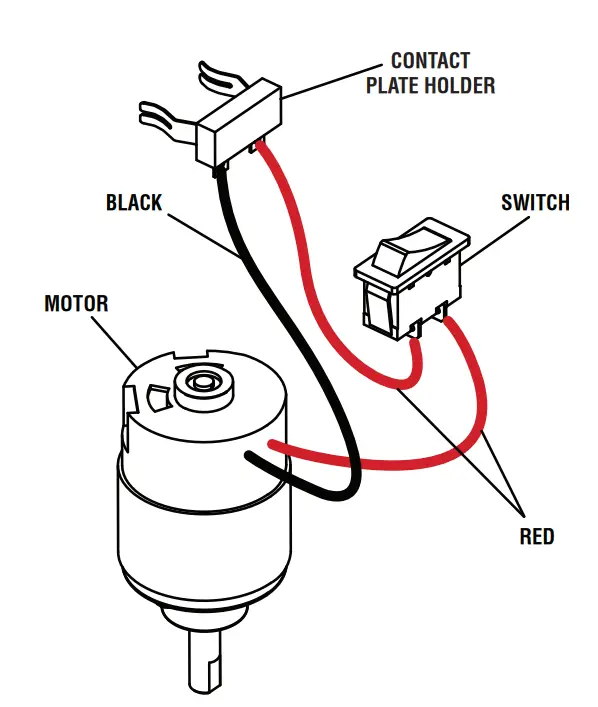

WIRING DIAGRAM
TTI CONSUMER POWER TOOLS, INC.
P.O. Box 1288, Anderson, SC 29622
1-800-525-2579
www.ryobitools.com
3-7-22 (Rev:04)
The model number and manufacturing location will be found on a label attached to the product. Always mention this information in all communications regarding this product and when ordering parts.
