REPLACEMENT PARTS LIST BRAND

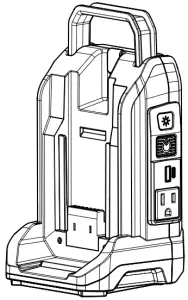

DESCRIPTION 40 Volt Power Source
RYOBI
MODEL NO.RYi300BG
MFG. NO.099930356, 099930631
TECHTRONIC INDUSTRIES POWER EQUIPMENT
P.O. Box 1288, Anderson, SC 29622
1-800-525-2579
www.ryobitools.com
The model number and manufacturing location will be found on a label attached to the product. Always mention this information in all communications regarding this product and when ordering parts.

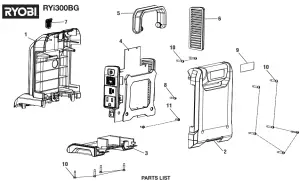

PARTS LIST
| KEY NO. | PART NO. | DESCRIPTION | QTY. |
| 1 | 518728023 | Upper Housing | 1 |
| 2 | 518728024 | Back Housing Assembly (Inc. Key No. 9) | 1 |
| 3 | 518728025 | Back Housing | 1 |
| 4 | 315478001 | Control Panel Assembly | 1 |
| 5 | 518728028 | Handle | 1 |
| 6 | 518728027 | Side Panel Vent | 1 |
| 7 | 529685006 | LED Task Light | 1 |
| KEY NO. | PART NO. | DESCRIPTION | QTY. |
| 8 | 660203001 | Screw (M3 x 8 mm) | 1 |
| 9 | 940705432 | Logo Label | 1 |
| 10 | 660031017 | Screw (M3.5 x 16 mm Torx Pan Hd.) | 12 |
| 11 | T662318001 | Screw (M4 x 13.5 mm) | 2 |
| Not Shown: | |||
| 995000827 | Operator’s Manual |
