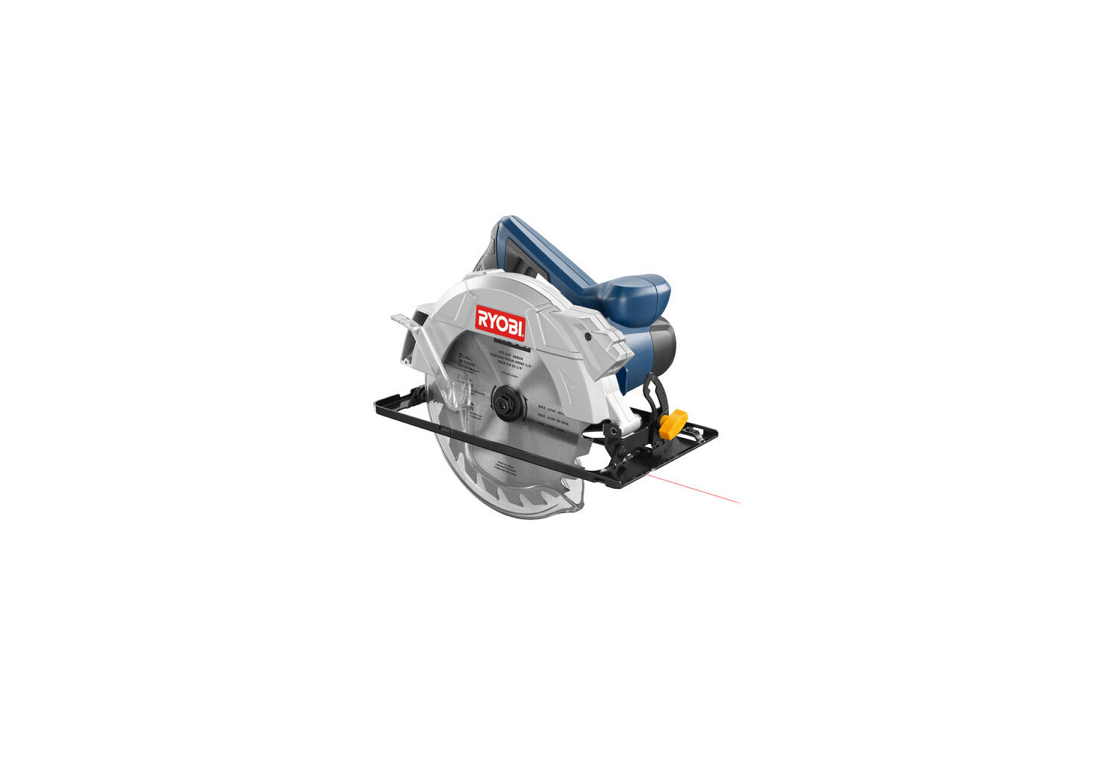

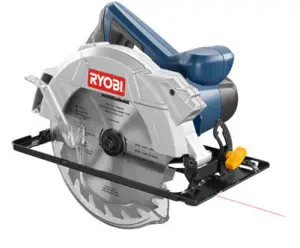

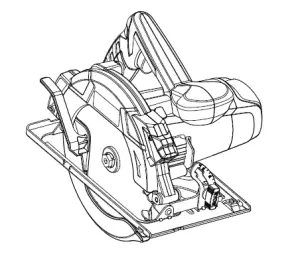

RYOBI 7-1/4 in. Circular Saw with Laser CSB134L User Guide
REPAIR SHEET | |
| BRAND RYOBI | DESCRIPTION
7-1/4 in. Circular Saw with Laser |
| MODEL NO. CSB134L | |
|
| |
| ONE WORLD TECHNOLOGIES, INC. P.O. Box 1288, Anderson, SC 29622 n 1-800-525-2579 n www.ryobitools.com 2-23-21 (Rev:04) | |
| The model number and manufacturing location will be found on a label attached to the product. Always mention this information in all communications regarding this product and when ordering parts. | |
Ryob CSB134L

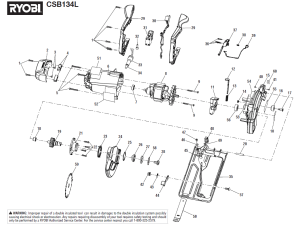

| KEY NO. | PART NO. | DESCRIPTION | QTY. | KEY NO. | PART NO. | DESCRIPTION | QTY. | ||
| 1 | 660208052 | Screw (M4 x 16 mm, Pan Hd.) | 7 | 34 | 730372029 | Power Cord | 1 | ||
| 2 | 524937001 | End Cover | 1 | 35 | 305407001 | Base Assembly (Inc. Key Nos. 45-50) | 1 | ||
| 3 | 562998001 | Rubber Bumper | 2 | 36 | 660206042 | Screw (M3.5 x 16 mm, Pan Hd.) | 3 | ||
| 4 | 290075001 | Brush Assembly | 2 | ||||||
| 37 | 351101001 | Laser Cover | 1 | ||||||
| 5 | 660259008 | Screw (M4.5 x 35 mm) | 3 | ||||||
| 38 | 693240001 | Compression Spring | 1 | ||||||
| 6 | 524935001 | Motor Housing | 1 | ||||||
| 39 | 291129001 | Laser Assembly | 1 | ||||||
| 7 | 681304001 | Ball Bearing (608-2RS) | 1 | ||||||
| 40 | 513075002 | Hex Nut (M3) | 1 | ||||||
| 8 | 230452001 | Motor Assembly (Inc. Key No. 7) | 1 | ||||||
| 41 | 512963002 | Nylon Screw (M3 x 6 mm, Special) | 1 | ||||||
| 9 | 660101002 | Screw (4.2 x 2.54 x 50, Type B Pan Hd.) | 2 | ||||||
| 42 | 612031001 | Depth Lock Nut (1/4-20) | 1 | ||||||
| 10 | 941120012 | Warning Label | 1 | ||||||
| 43 | 634295001 | E-Ring | 1 | ||||||
| 11 | 525084001 | Volute | 1 | ||||||
| 44 | 634293001 | Depth Lock Lever | 1 | ||||||
| 12 | 634292001 | Spindle Lock | 1 | ||||||
| 45 | 660104010 | Carriage Bolt (1/4-20 x 5/8 in.) | 1 | ||||||
| 13 | 693411002 | Compression Spring | 1 | ||||||
| 46 | 660106007 | Hex Nut (8-32) | 1 | ||||||
| 14 | 670974003 | Lock Nut (M5) | 1 | ||||||
| 47 | 660112006 | Screw (8-32 x 11/32 in., Pan Hd.) | 1 | ||||||
| 15 | 202001006 | Upper Blade Guard Assembly (Inc. Key No. 10, 18, 53-54 & 56) | 1 | ||||||
| 16 | 561984001 | Bumper | 1 | 48 | 301124010 | Bevel Lock Knob | 1 | ||
| 17 | 660193005 | Shoulder Screw (M5 x 20 mm) | 1 | 49 | 680771002 | Washer (OD5/8 x ID7/16 x 1/16t) | 1 | ||
| 18 | 680413005 | Bushing | 1 | 50 | 634389001 | Blade Wrench | 1 | ||
| 19 | 305403001 | Output Shaft and Gear Assembly | 1 | 51 | 941121020 | Data Label | 1 | ||
| 20 | 680980003 | Roll Pin | 1 | 52 | 941120008 | Warning Label | 1 | ||
| 21 | 305401001 | Lower Blade Guard Support Assembly (Inc. Key No. 19) | 1 | 53 | 941006007 | Laser Label (ENG/FR) | 1 | ||
| 22 | 661349001 | Screw (M4 x 16 mm, Pan Hd.) | 4 | ||||||
| 54 | 941006008 | Laser Label (SP) | 1 | ||||||
| 23 | 680672006 | Torsion Spring | 1 | ||||||
| 55 | 940304501 | Logo Label | 1 | ||||||
| 24 | 524934002 | Lower Blade Guard | 1 | ||||||
| 56 | 681717001 | Ball Bearing (6000-2RS) | 1 | ||||||
| 25 | 693438001 | Retaining Ring | 1 | ||||||
| 57 | 693616001 | Cariage Bolt (1/4-20 x 5/8 in., Special) | 1 | ||||||
| 26 | 611791001 | Inner Flange Bushing | 1 | ||||||
| 58 | 680776001 | Spring Washer | 1 | ||||||
| 27 | 680775008 | Outer Blade Washer | 1 | ||||||
| 59 | 681323001 | Blade (7-1/4 in.) | 1 | ||||||
| 28 | 660988001 | Blade Screw (5/16-18 x 9/16 in.) | 1 | ||||||
| 60 | 941001058 | Laser Label | 1 | ||||||
| 29 | 202144001 | Handle Assembly | 1 | ||||||
| Not Shown: | |||||||||
| 30 | 280226001 | Circuit Board w/Micro Switch Assembly | 1 | ||||||
| 202218001 | Edge Guide Kit (Optional) | ||||||||
| 31 | 760476003 | Switch | 1 | ||||||
| 200673002 | Dust Nozzle Kit (Optional) | ||||||||
| 32 | 790021001 | Closed End Wire Connector | 1 | ||||||
| 988000819 | Operator’s Manual | ||||||||
| 33 | 551060002 | Bend Relief | 1 | ||||||
Ryob CSB134L

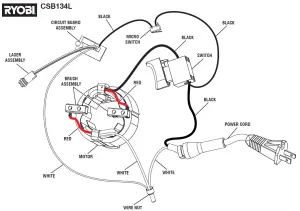

WIRING DIAGRAM
