REPAIR SHEET
BRAND
RYOBI
| MODEL NO. P2108 P21081 P21081VN P21081VNM | MFG. NO. 107267001 107267003 107267033 107267101 |
DESCRIPTION
18 Volt Blower

TECHTRONIC INDUSTRIES POWER EQUIPMENT
P.O. Box 1288, Anderson, SC 29622 • 1-800-525-2579 • www.ryobitools.com
The model number and manufacturing location will be found on a label attached to the product. Always mention this information in all communications regarding this product and when ordering parts.
P2108/P21081/21081VN/P21081VNM

P2108/P21081/21081VN/P21081VNM

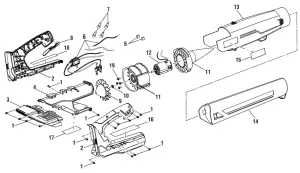

PARTS LIST
KEY NO. | PART NO. | DESCRIPTION | QTY. |
| 1 | 661817001 | Screw (M4 x 14 mm, T15 Torx Pan Hd.) | 16 |
| 2 | 330078001 | Handle Assembly (Inc. Key Nos. 16 and18) | 1 |
| 3 | 529436001 | Inlet Guard (P2108/P21081VN) | 1 |
| 529436005 | Inlet Guard (P21081/P21081VNM) | 1 | |
| 4 | 330080001 | Inlet Housing Assembly (Inc. Key No. 17, P2108/P21081) | 1 |
| 205152001 | Inlet Housing Assembly (Inc. Key No. 17, P21081VN) | 1 | |
| 205208001 | Inlet Housing Assembly (Inc. Key No. 17, P21081VNM) | 1 | |
| 5 | 563768002 | Rubber Block | 2 |
| 6 | 291632001 | Switch and Contact Plate Assembly | 1 |
| 7 | 790021001 | Wire Connector | 4 |
| 8 | 525552001 | Trigger Assembly (Variable Speed) | 1 |
| 9 | 529437004 | Fan Blade | 1 |
| 10 | 612854001 | Bushing | 1 |
| 11 | 351074001 | Tail Cone Assembly | 1 |
| 12 | 742200001 | Motor | 1 |
| 13 | 330079001 | Blower Housing Outlet Assembly (Inc. Key No. 15) | 1 |
| 14 | 529431001 | Blower Tube (P2108/P21081VN) | 1 |
| 529431004 | Blower Tube (P21081/P21081VNM) | 1 | |
| 15 | 940705307 | Logo Label | 1 |
| 16 | 940657183 | Warning Label | 1 |
| 17 | 941588103 | Data Label (P2108) | 1 |
| 941588169 | Data Label (P21081) | 1 | |
| 941588324 | Data Label (P21081VN) | 1 | |
| 941588675 | Data Label (P21081VNM) | 1 | |
| 18 | 940657184 | Warning Icon Label | 1 |
| 19 | 660502002 | Screw w/Washer (M5 x 11 mm, Pan Hd.) | 4 |
| Not Shown: | |||
| 991000679 | Operator’s Manual |
P2108/P21081/21081VN/P21081VNM

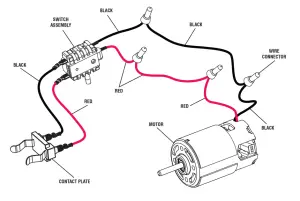

WIRING DIAGRAM
