ASSEMBLY INSTRUCTIONS
Description: Hailey Armless Accent Chair
Important Safety Instructions:
- Please read carefully all instructions before assembly.
- For your safety and ease, assembly by two or more adults is recommended.
- Keep instructions for future use.
Pre-assembly: - Do not discard any content until assembly is complete to avoid accidentally discarding small parts or hardware.
- Take out all parts and hardware from the box.
Item | Description | QTY | ||||
| P1 | Chair Top |  | 1 | |||
| P2 | Front Legs |  | 2 | |||
| P3 | Left Back Leg |  | 1 | |||
| P4 | Right Back Leg |  | 1 | |||
| Hardware List | ||||||
Item | Description | QTY | ||||
| H1 | Bolts 05116″*2-1/4″ |  | 8 | |||
| H2 | Lock Washers 05116″ |  | 8 | |||
| H3 | Flat Washers 05/16″ |  | 8 | |||
| H4 | Allen Wrench 5/16″ |  | 1 | |||
Assembly Procedures:

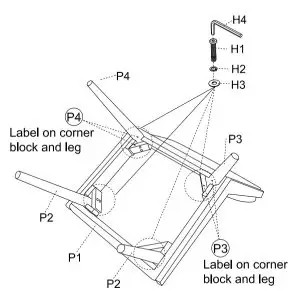

Step 1: Assemble the chair on a flat, soft surface such as a carpet or cloth to prevent scratching the finish. Attach back legs (P3 & P4) to chair top (P1) following P3 and P4 labels on back legs and corners, then attach front legs (P2) to chair top (P1) as shown below.
(H1 )x8 Bolts 05116″2-1/4″
(H2)x8 Lock Washers 05/16′
(H3)x8 Flat Washers 051W
(H4)x1 Allen Wrench 5/16″
Step 2. Securely tighten all bolts when the chair is level. Assembly is complete. Failure to follow these instructions may cause the bolts to misalign during assembly.
ADDITIONAL NOTE ABOUT SAFETY: BOLTS MAY LOOSEN DURING NORMAL EVERYDAY USE. THEY SHOULD BE PERIODICALLY INSPECTED AND RE-TIGHTENED TO PREVENT DAMAGE OR INJURY. ALWAYS CHECK TO ENSURE THAT ALL HARDWARE IS KEPT TIGHTENED.
Thank you for your purchase
