Spy Gadget Ws06 Hd 1080p Wireless Security User Manual

SPY GADGET WS06 HD 1080P Wireless Security

AC Charger (no battery)

Weather Clock

Quick guide of Wi-Fi camera function

1. Download Free App <TinyCam Pro> from App Store or Google Play.
   Tips:Please allow “TinyCam Pro” to access the smartphone location while using the APP.
2. lnsert micro SD card –> Plug in Power adapter, wait for 1 minute (Power indicator and Wi-Fi indicator is flashing regularly);
3. Enter smartphone settings -> Search and connect device’s Wi-Fi named: AIS …… ,wait till phone status bar appear Wi-Fi symbol ‘‘;
4. Enter APP, tap below “()” icon –> LAN search->Tap the found device -> Tap Add -> Camera Online then;
   Tips:This step = P2P mode, can check video locally when without Wi-Fi.
5. Press icon on the right corner of camera -> WiFi Config ->Select local Wi-Fi (SSID) -> Input password -> Tap Next;
6. Quit APP , wait 30 seconds (device restart automalically)and connected with set Wi-Fi(Wi-Fi indicator is solid);
7. Enter APP to check live video locally or remotely anywhere.
   P.S.: Contact local dealer for tutorial video setting up.

Overview

These wireless Wi-Fi security camera comes with HD 1080P high resolution camera for live video streaming worldwide from anywhere by smartphone APP TinyCam Pro; The AC Charger is plug and play, and with a functional USB output (600mA); It also equipped with 16pcs invisible leds for around 4 meters night vision.And the Weather Forecast Clock works with powerful invisible 6M night vision for day and night.

Usages: Nanny camera, Home/ Shop/ Office/ Warehouse surveillance camera ……

Warning : ” illegal use is not allowed! Or, there will be consequences to bear!”

In the box

AC Charger:

• 1 x Camera Unit
• 1 x User Manual
• 1 x Reset Pin
• 1 x Micro SD Card Reader

Weather Clock:

• 1 x Camera Unit
• 1 x User Manual
• 1 x USB Cable
• 1 x Micro SD Card Reader
• 1 x 5V2A Power Adapter

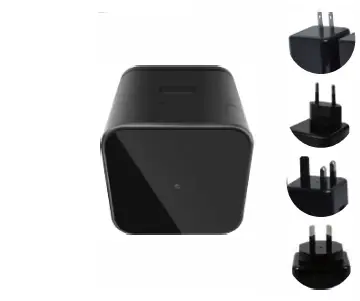

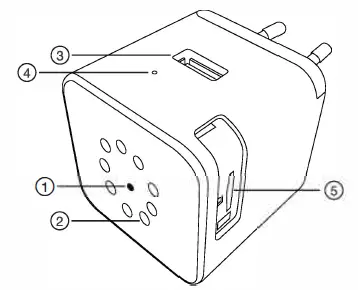

Product structure of AC Charger

1. Camera
2. Night vision leds
3. USB port
4. Reset hole / Power indicator
5. Micro SD card slot

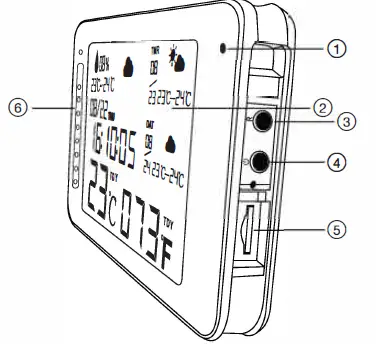

Product structure of Weather Clock

1. Camera
2. 5 inch display screen
3. Resetkey
4. ON/OFFkey
5. Micro SD card slot
6.  Night vision lights
7.  Charging indicator
8. Wi-Fi indicator
9. Power indicator
10. 12H/24H: Long press to turn on/off screen display
11. USBport

Tips: The time and temperature will be updated automatically every 2 hours after Wi-Fi connection

Wi-Fi Camera Connection Setting

1. Step1: Download and install APP
   Scan below QR code or search and download free APP named <TinyCam Pro> in Apple APP store, Google play or Electronic market, and install it;
   Tips: Please allow “TinyCam Pro” to access your location while you are using the app(for syncing local weather info).
2. Step 2: Insert micro SD card –>Plug in devices with power –> wait for 1 minute(Power indicator and Wi-Fi indicator is flashing regularly.);
3. Step 3:Connect Wi-Fi

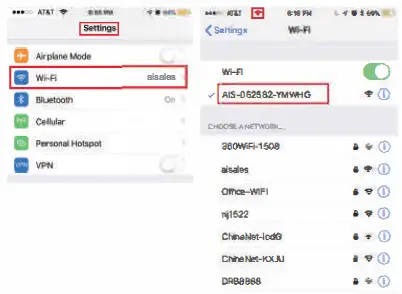

   1. Open smartphone settings, search and connect the device’s wireless signal named”AIS ……” ,wait Wi-Fi connected, and phone status bar appear Wi-Fi symbol.

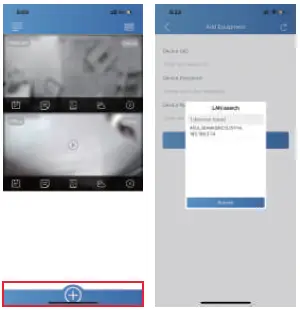

   2. Enter APP, tap below” ()” icon –> LAN search-> Tap the found device -> Tap Add -> Camera Online then;

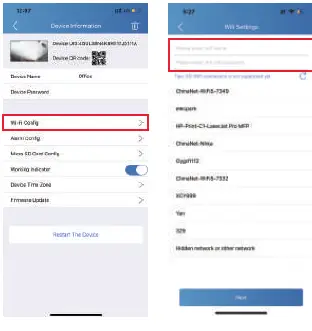

   3. Tap icon on the right corner of camera -> Wi-Fi Config-> Select local Wi-Fi (SSID) -> Input password -> Tap Next;
   4. Quit APP , wait 30 seconds (device restart automatically)and connected with set Wi-Fi(Wi-Fi indicator is solid) ;
   5. Enter APP and check live video locally or remotely anywhere.

Set camera name and private code

• Set name:Tap the after the camera, Input a new name(like Office … ) in Device Name;
• Set new password: Tap the after the camera, Tap Device Password –> Old password = 888888.

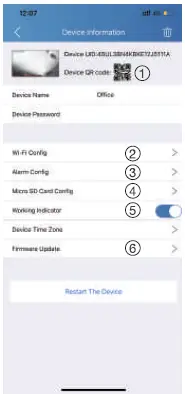

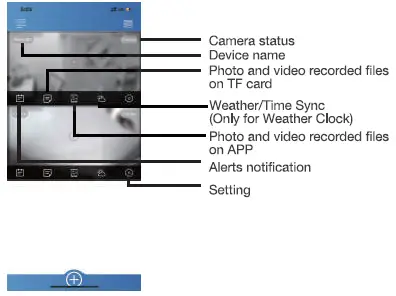

APP introduction

1. Share camera with others by QR code
2. Wi-Fi Config: Set camera to connect to local Wi-Fi
3. Alarm Config: Set motion detection sensitivity
4. Micro SD Card Record Config: Set SD card record mode / Resolution /File length …
5. Working Indicator: To turn on/off device’s working led
6. Firmware Update: Update device’s latest firmware by app

Specification

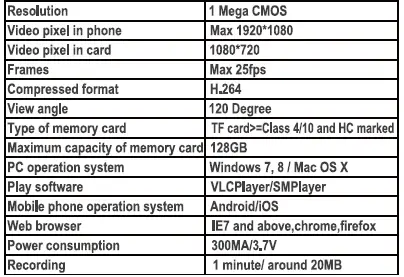

AC Charger Specification

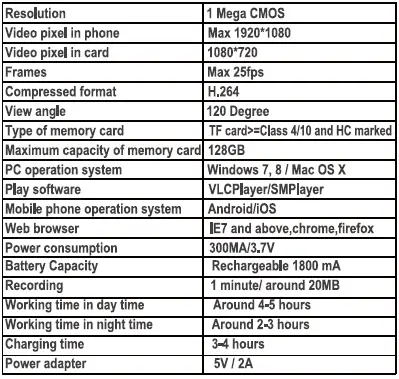

Weather Clock Specification

FAQ

1. Q: Time display is not stable, always blinking?
   A: It’s with low battery, please charge it.?
2. Q: Can’t get device Wi-Fi signal?
   A:Press reset key for 1 O seconds and wait 1 minute.
3. Q: Live video not smooth and clear?
   A: Select suitable resolution according to the real lime network environment.
4. Q: Motion detect set and alarm?
   1. Set motion detect sensitivity in App Setting> Alarm Config;
   2. When motion detected, the camera will push a alarm message to your phone and take one picture for checking in the APP [ Page 15 – Alert notification]. (A micro sd card MUST be inserted for saving alarm pictures)
5. Q: Micro SD card instruction?
   1. Set motion detect sensitivity in App Setting> Alarm Config;
   2. Once device is connected to Wi-Fi, can set SD management in App Setting > Micro SD Card Config.
6. Q: How to play micro SD card video?
   1. Use a card reader to read and play;
   2. Use APP to play back [ Page 15 – TF card recorded files ];
   3. Play back in good speed network.
7. Q: Forget camera password, or item goes abnormal?
   A: Turn on camera and wait for 1 minute, press reset key around 10 seconds till back indicators off to restore factory default. Camera restarts and get ready again in 1 minute.
8. Q: Any operation video demo of the camera for setting up?
   A: Please contact local dealer for video guide.
