Ultra Long Standby Wi-Fi Security Camera
with Low Power Consumption
User Manual
Size: 116x116x52mm

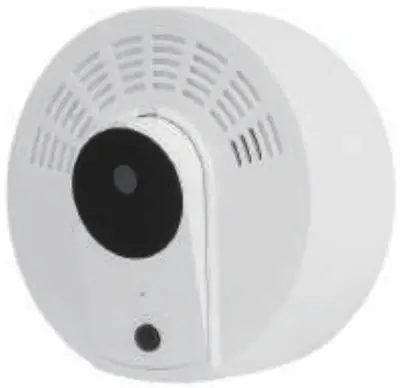

AI-LS008 Ultra Long Standby WiFi Security Camera with Low Power Consumption

[ 15 degree moveable lens, default 2 batteries ]
Tips: Please take off the transparent protect film on the device and replace it with a black lens cover (Plastic) before using.

Quick guide of Wi-Fi camera function:

1. Download & Install Free App <CamSC> from App Store or Google Play;
   Tips: Please allow “CamSC” to notification, Bluetooth and location while using the App.
2. Enter App, select your region at the top right corner and register;
   Tips: If a code doesn’t arrive, please check the spam folder first.
3. Take off back cover–>Insert micro SD card –> Turn back ON/OFF switch, press reset key 4 seconds till a beep sound (Pairing mode is ready now).
4. Enter App, Click +» Smart Home » Pairing Mode » Click device name » Select Wi-Fi » Input password > NEXT.
5. Device online in around 10 seconds & Wi-Fi live video is ready.
   P.S.: Contact local dealer for tutorial video setting up.

Overview:

The Ultra Long Standby WiFi Security Camera, it is built with high tech of super low power consumption 4501A/hour to save energy for around one year (Optional: 2 years) standby after being fully charged.
First, it can be used for watching live streaming video day and night (night vision around 5 meters), or taking photo and video by APP in smart-phone remotely after WiFi connected;
Second, its PIR sensor will make precisely motion detect recording for surveillance use (around 5 meters distance and 2 meters height) . Also, it has cycle recording and work when charging.
Usages: Nanny camera, Home/ Shop/ Office/ Warehouse surveillance camera……
Warning : ” illegal use is not allowed! Or, there will be consequences to bear! “

In the box:
– 1x Camera Unit
– 1x MicroSD Card Reader
– 1x USB Cable
– 1x User Manual
– 2x Batteries inside device (Default)
– 3x Screws
– 1x 3M Super sticker 2

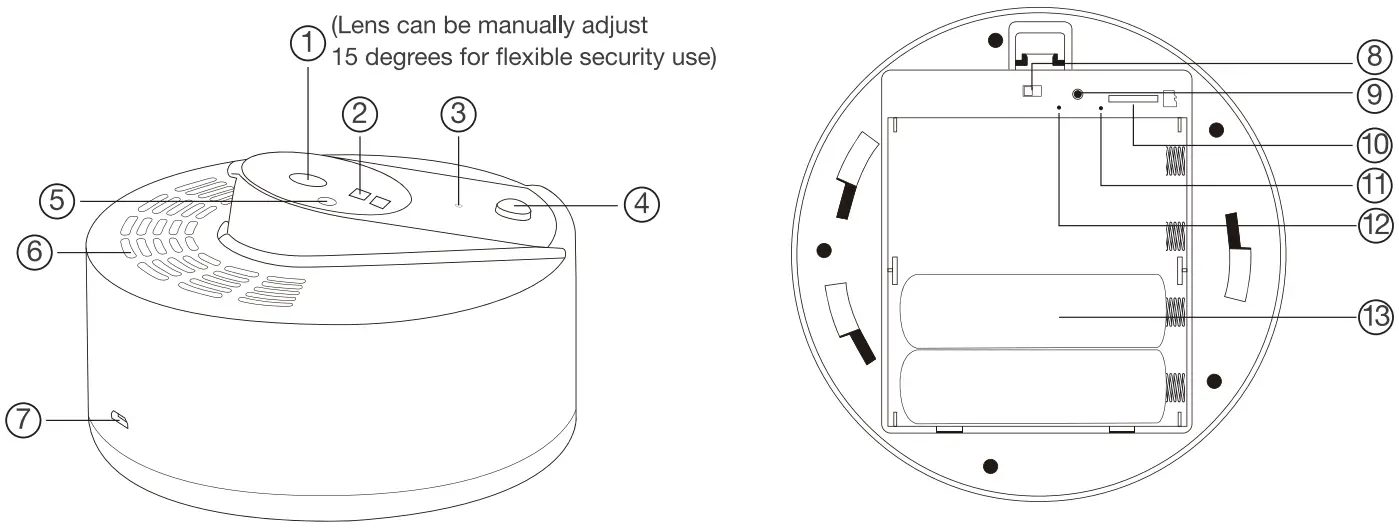

Product structure

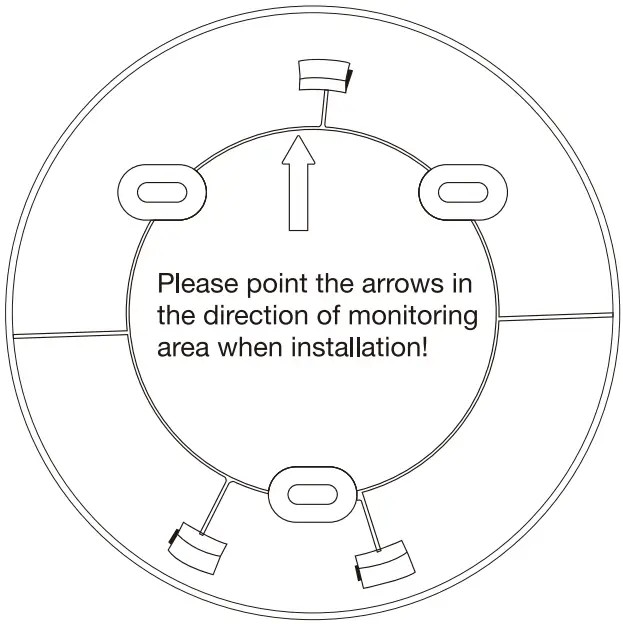

TIPS: Please point the arrows in the direction of monitoring area when installation!
Reset key tips:
– One press to restart device;
– 4 seconds press to pair with WiFi (First double beep);
– 6 seconds press to reset device (Second double beep).

Wi-Fi indicator tips:
– Blue LED blinking when pairing with WiFi;
– Turn off when WiFi paired;
– Blink once when motion detected.

Charging indicator tips:
–  Solid red when charging, and off when fully charged.

Wi-Fi Camera Connection Setting

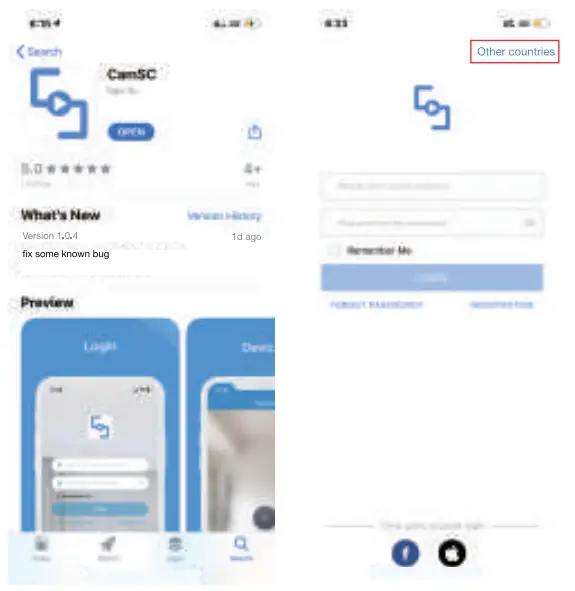

Step 1: CamSC APP

1. Scan below QR code or search and download free APP named cCamSC› in Apple APP store, Google play or Electronic market, and install it;http://xiazai.kywtwl.com/CamSC.html
   APP:CarnSC
2. Open APP CamSC, select current region at the top right corner. Register with email. or third-party account like Facebook or 103 account. (Tips: K a code doesn’t arrive, please check the spam folder first.)
3. Step 2: Take off back cover –> Insert micro SD card –> Turn back ON/OFF switch (VViFi indicator is solid blue.);

Step 3: Connect WiFi

1. Press Reset key 4 seconds till a beep sound(WiFi indicator blink slowly and ready for pairing WiFi);

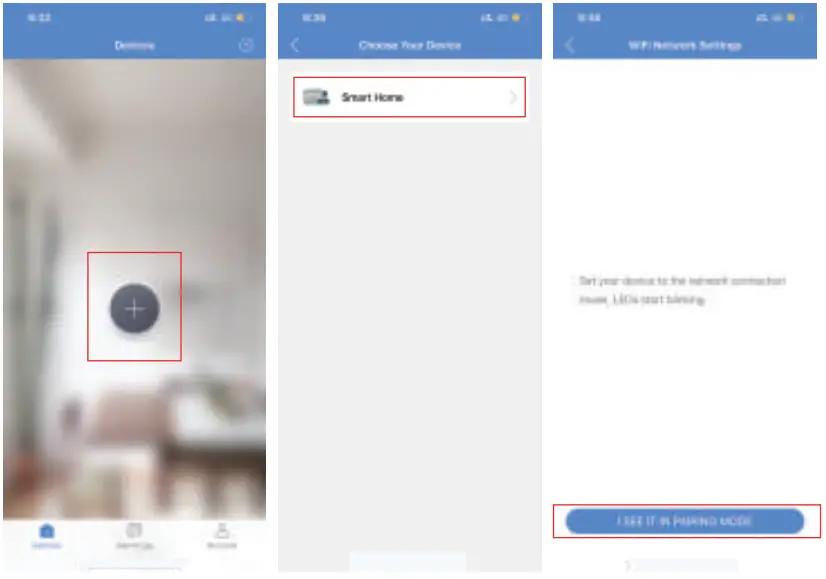

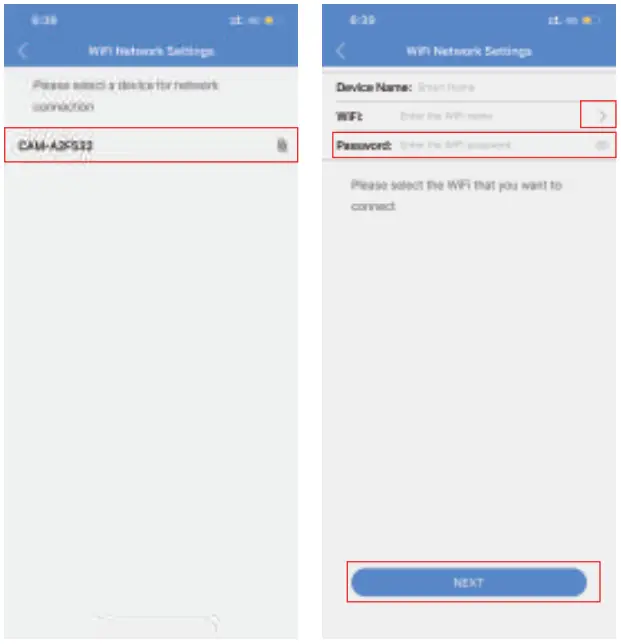

2. Open APP CamSC » Click + » Smart Home » Device in pairing mode » CAM-xxxxxx.
3.  Click at the end of WiFi to select the local router WA, then input password.
   Click NEXT and wait around 10 seconds to finish the configuring; Device Binding Successful and online now.

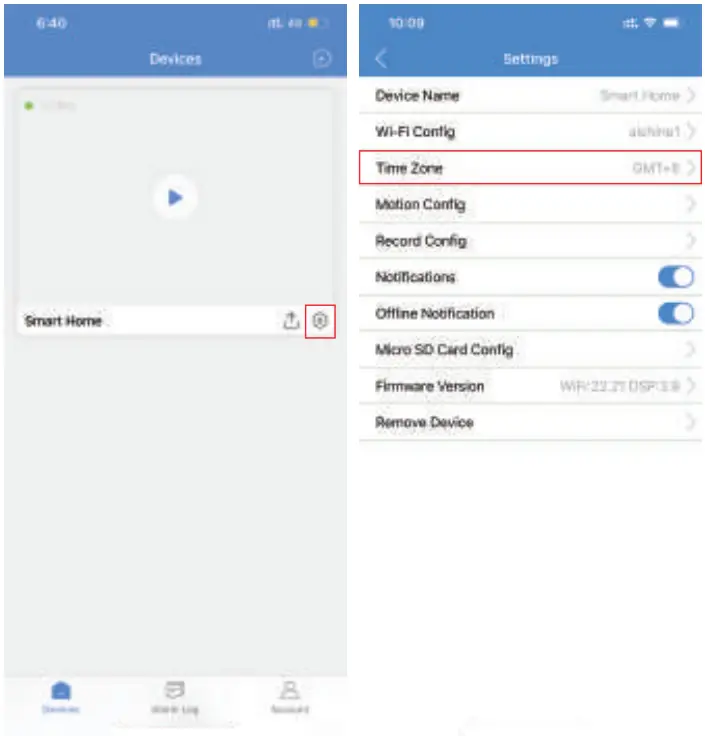

4. Click in APP’S first interface, select Time Zone and choose Time Zone to ensure live streaming video with the set time zone.

Camera Normal Status:

1. Camera always in standby mode;
2. Once motion detected, it will push a notification to phone, do a snapshoot and record a 15 seconds video clip into memory card;
3. Sleep and alert after 1 minute once motion detected again.

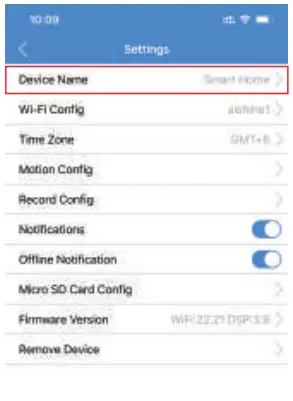

Set name: Press the after the camera, select Device Name –> Input needed name like Office, Living room etc…

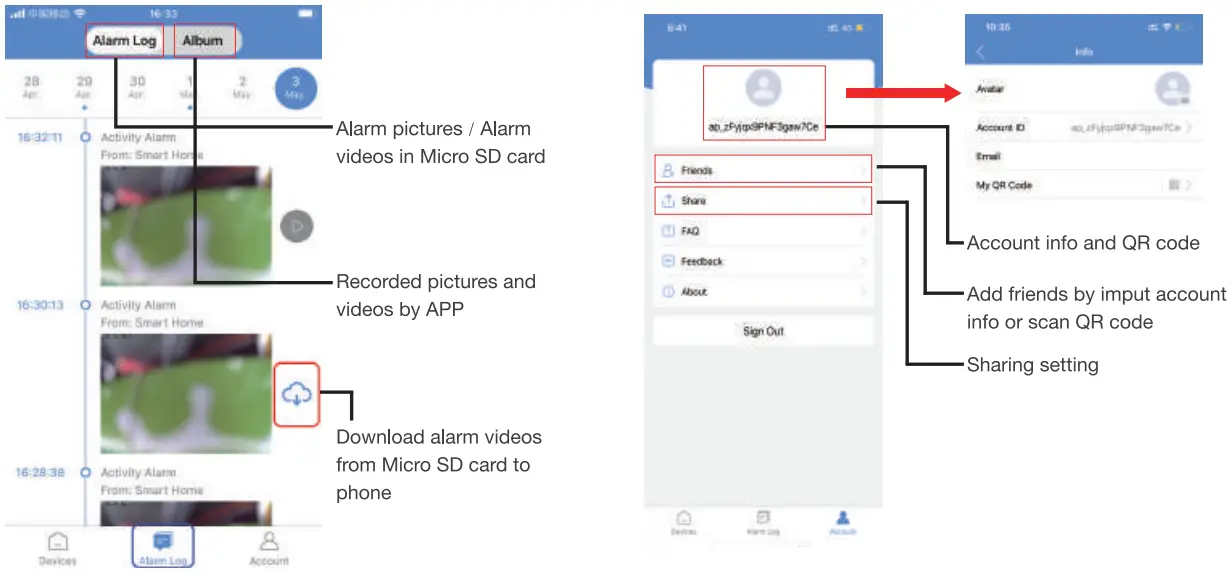

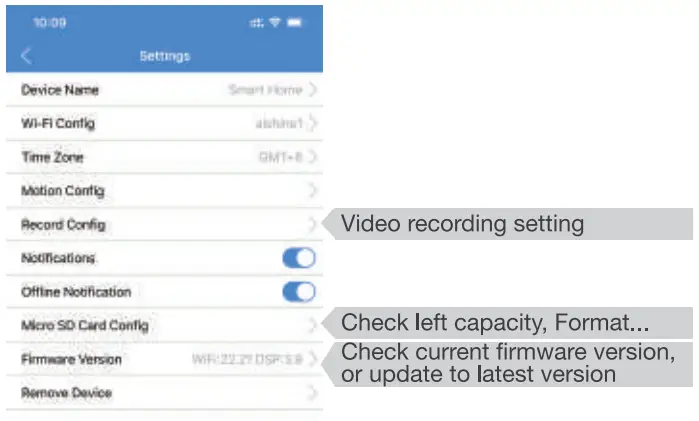

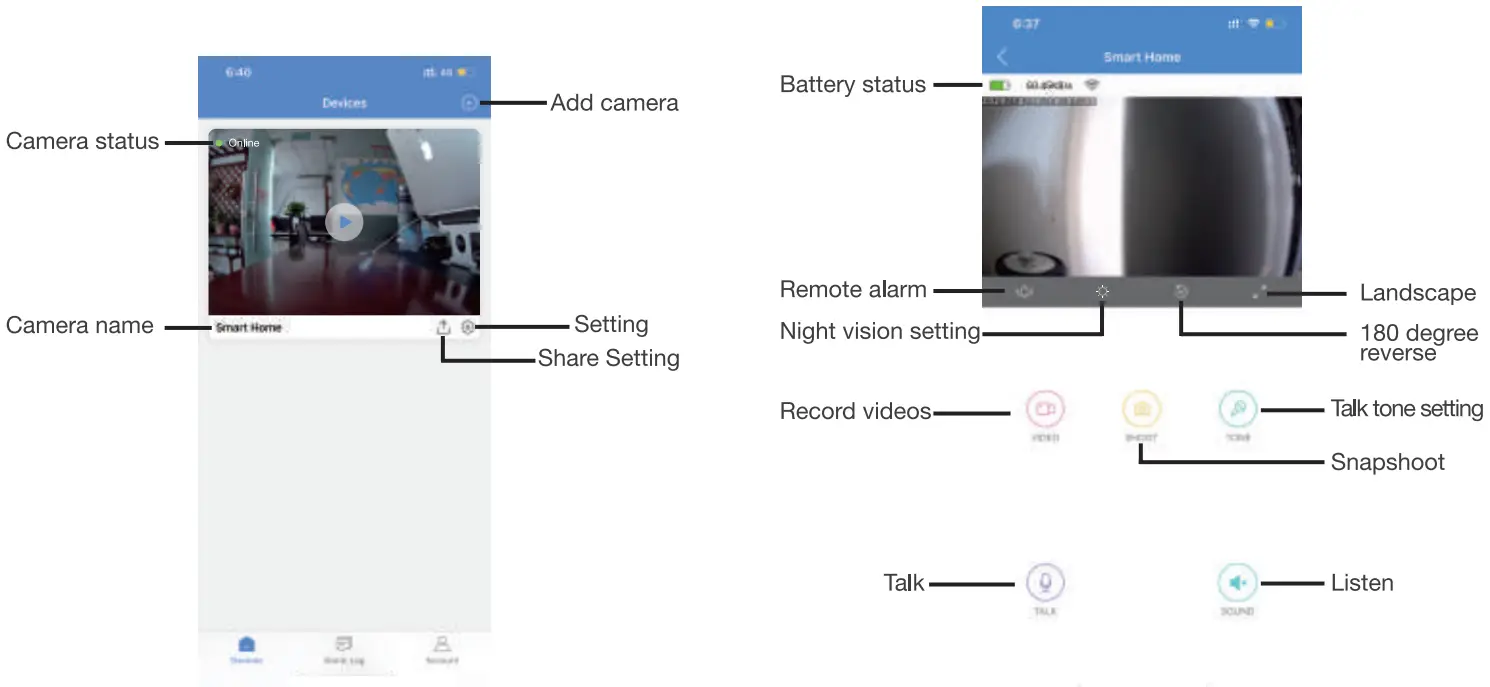

APP Introduction

Specifications

FAQ

The end!
Version: August, 2021
