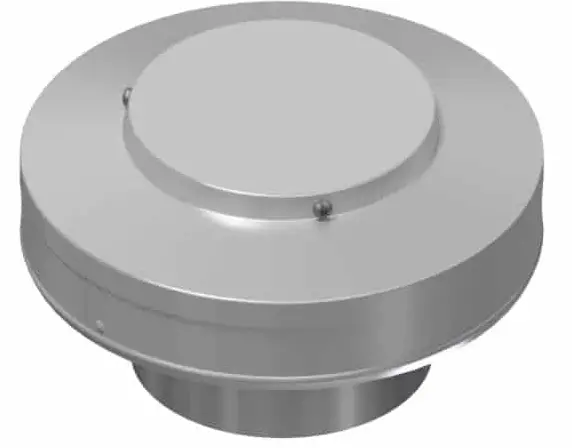

ACTIVE VPC-4 Vent Pipe Cap
Product Information

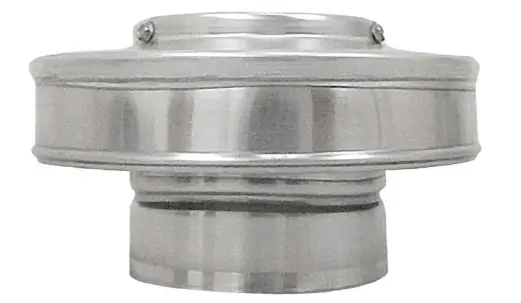

The Active Ventilation Products, Inc. Vent Pipe Cap Model: VPC-4 is an all-aluminum construction product with a thickness of 0.025 [0.635 mm]. It is designed to provide ventilation to the roof through pipes with a diameter of 4 inches. The product is sold through the roofvents.com website and can be contacted through [email protected].
Product Usage Instructions
- Slide the Vent Pipe Cap over the existing pipe.
- Observe the screws located on top of the vent. Use this as a pattern to attach the vent to the pipe.
- To secure the vent, attach the vent to the pipe using a #8 self-tapping sheet metal screw.
- Total number of screws needed = 3
- Recommended installation screw: #8 x 1/2 Sheet Metal Screw
- Screws not included.
Note: The flashing detail & instructions are not provided in this section of the manual. Please refer to the relevant section for the same.
Installation Instructions

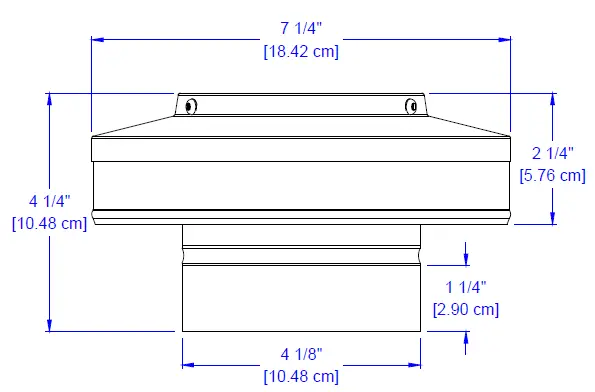

Vent Pipe Cap Model: VPC-4
Diameter: 4″
Flashing Detail & Instructions

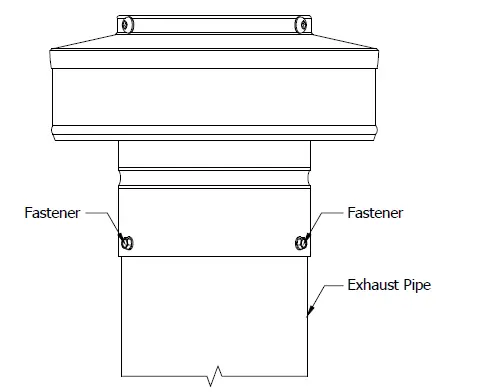

- Slide the Vent Pipe Cap over the existing pipe.
- Observe the screws located on top of the vent. Use this as a pattern to attach the vent to the pipe.
- To secure the vent, attach the vent to the pipe using a #8 self-tapping sheet metal screw.
- Total number of screws needed = 3
- Recommended installation screw: #8 x 1/2″ Sheet Metal Screw
- Screws not included.
* All Aluminum Construction, Thickness = 0.025″ [0.635 mm]
Website: roofvents.com
Email: [email protected]
