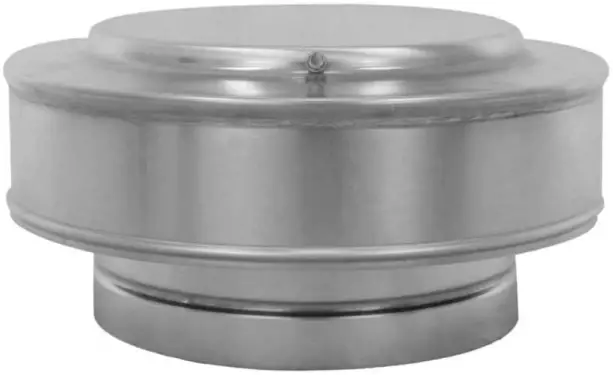

Active Ventilation Products VPC-7 Vent Pipe Cap

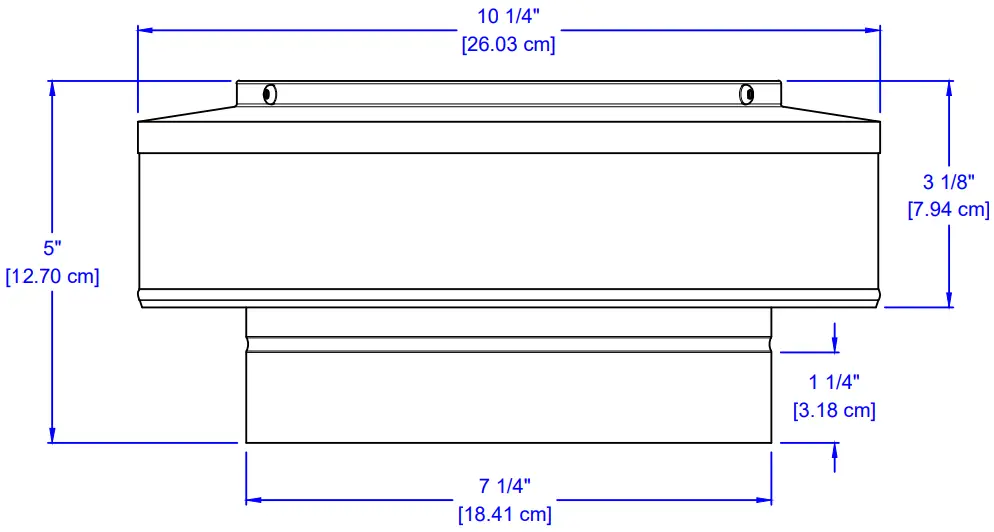

Dimension

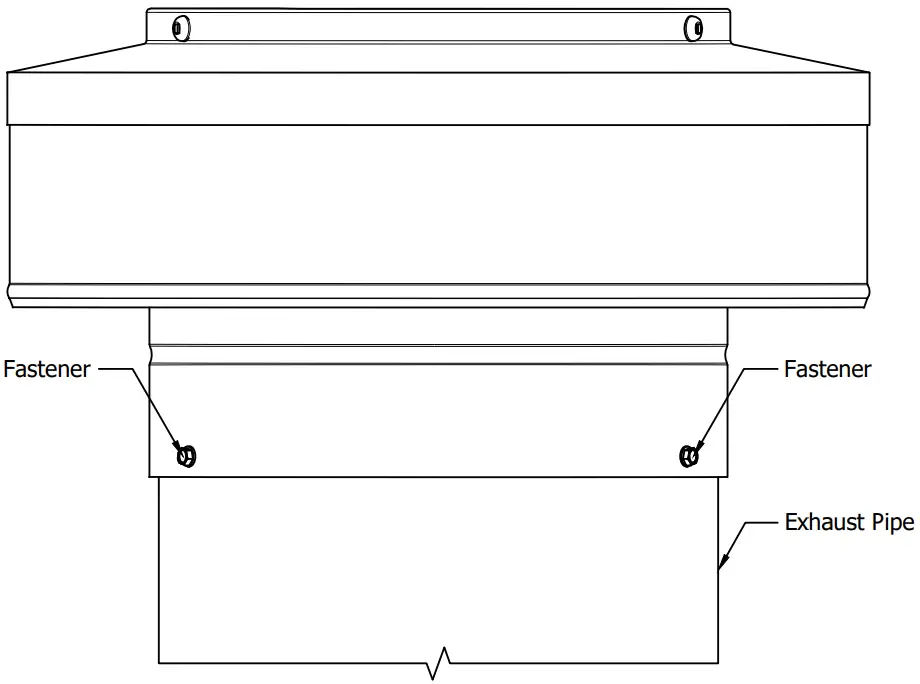

Flashing Detail & Instructions
- Slide the Vent Pipe Cap over the existing pipe.
- Observe the screws located on top of the vent. Use this as a pattern to attach the vent to the pipe.
- To secure the vent, attach the vent to the pipe using a #8 self-tapping sheet metal screw.
- Total number of screws needed = 3
- Recommended installation screw: #8 x 1/2″ Sheet Metal Screw
- Screws not included.
* All Aluminum Construction, Thickness = 0.025″ [0.635 mm]
