VL200120
Vario downdraft ventilation 200 series
Black control panel Width 15 cm
Air extraction / Air recirculation Motorless
Instruction Manual

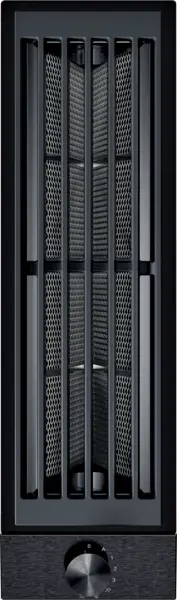

VL200120 200 Series Vario Downdraft Ventilation
Color Variants
VL200120
Black control panel
Width 15 cm
Can be combined with the cooktops of the Vario 200 series to a harmonic unity Highly efficient ventilation system at the cooktop integrated in the worktop Function for automatic, sensorcontrolled power adjustment depending on the build-up of cooking vapours
Low planning and installation effort
Air extraction or air recirculation system
Output
Power levels depend on the remote fan unit.
Features
Control knobs with illuminated ring.
3 electronically controlled power levels and 1 intensive mode.
Large-scale metal grease filter with high grease absorption.
Grease filter and activated charcoal filter saturation indicator.
Airflow-optimised interior for efficient air circulation.
Interval ventilation, 6 min.
Enamelled ventilation grille, dishwasher-safe.
Air exhaust bend included in delivery.
Overflow 250 ml capacity.
Sound level min/max (intensive) according to EN 61591: 56 / 76 dB(A)
Performance
For each VL one remote fan unit is recommended.
Maximum cooktop width between two VL 60 cm.
If installed next to gas appliances, the ventilation moulding LS 041 001 is recommended to ensure maximum performance of the cooktop.
When having installed the ventilation moulding LS 041 001 the wok pan WP 400 001 can not be used.
When installing a ventilation hood with air extraction mode and a chimneyvented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch.
Connection
Connecting cable 1.7 m between VL and remote fan unit.
Characteristics
| Product name/family Color chimney Typology Downdraft Length electrical supply cord 170 Min. required niche size for installation (HxWxD) 175mm x 170.0mm x 492mm Height of the chimney Height of product, without chimney | Minimum distance above an electric hob 600 Minimum distance above a gas hob Net weight 7.1 Type of control Electronic Number of speed settings Maximum output air extraction 550 |
| Boost position output recirculating Maximum output recirculating air Boost position air extraction Number of lights Noise level 71 Diameter of air outlet Grease filter material EAN code 4242006280604 Connection Rating Fuse protection Voltage 220-240 | Frequency 60; 50 Plug type Installation typology Built-in Included accessories Consumption and connection features 2023-01-27 Page 1 |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |

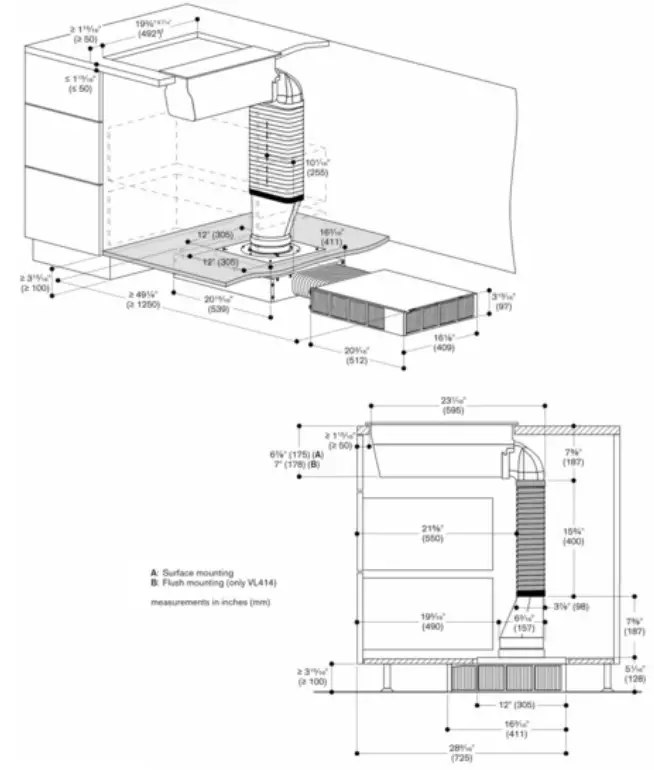

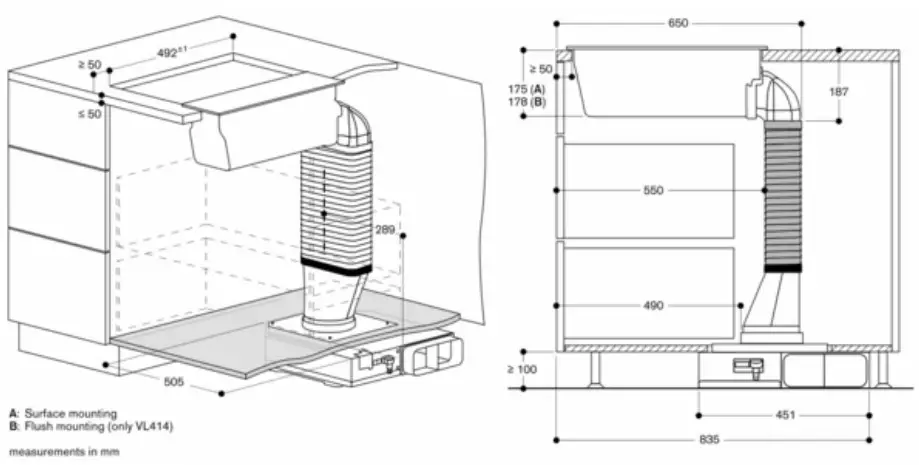

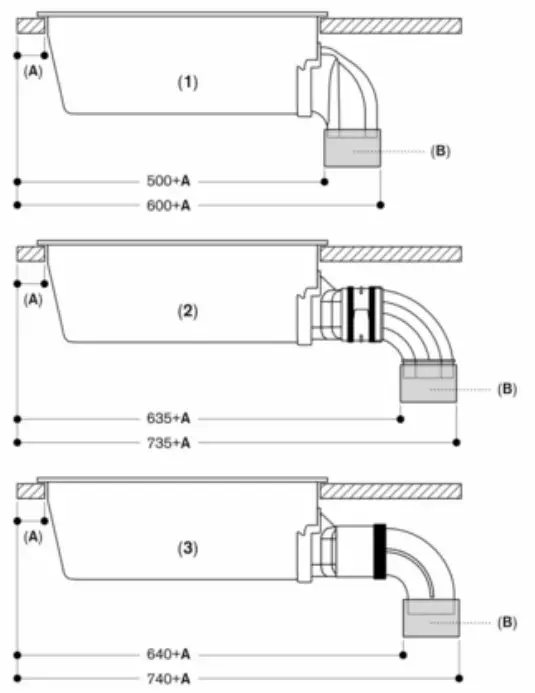

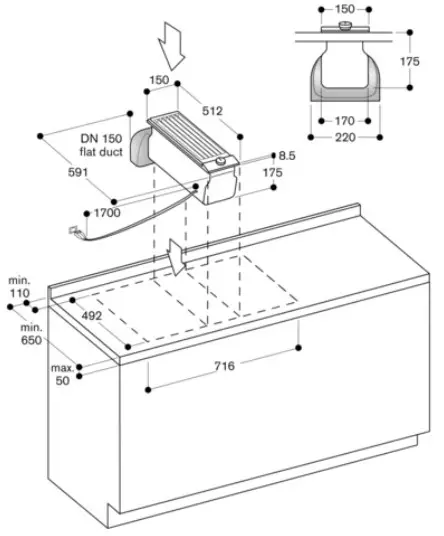

- Direct installation

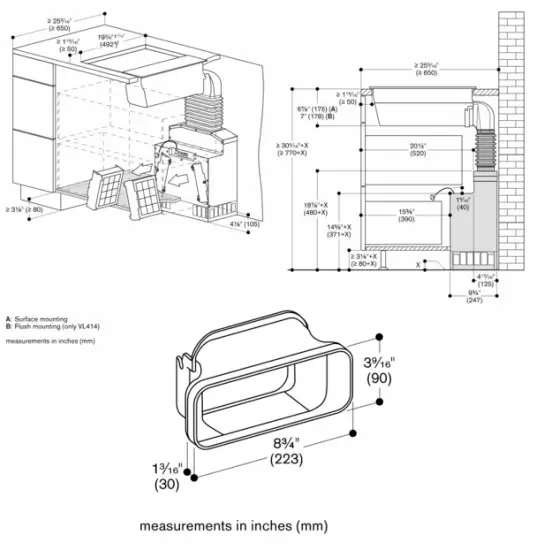

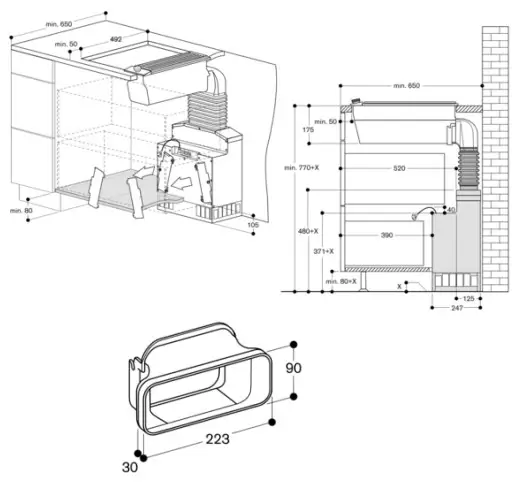

- Installation with extension for extra deep worktop and plastic ducting
– AD 851 041 (connecting piece for extension)
– AD 857 040 (flat duct connecting piece. plastic)

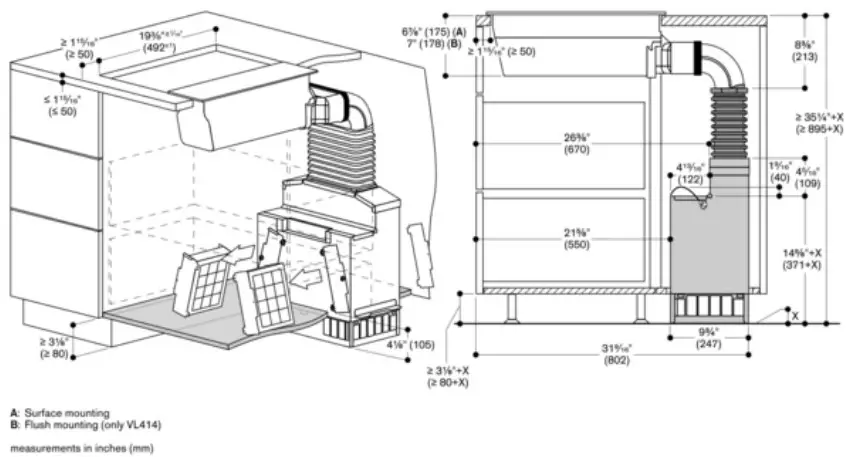

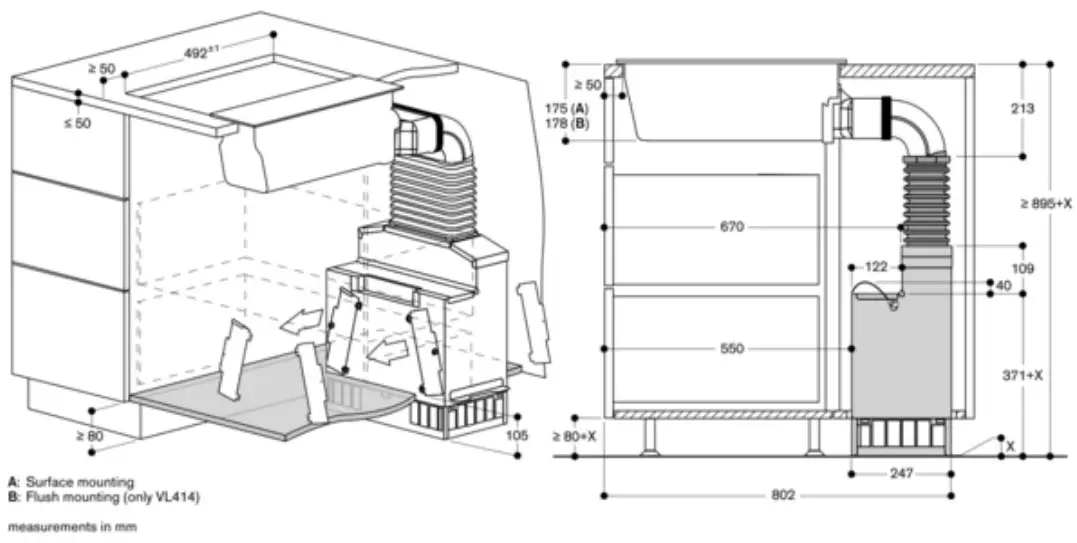

– AD 857 030 (Oat duct bend. 90 vertical, plastic) - Installation with extension for extra deep worktop and metal ducting
– AD 851 041 (connecting piece for extension)
– AD 854 000 (flat duct connecting piece. metal)
– AD 854 030 (flat duct bend. 90 . vertical. metal)

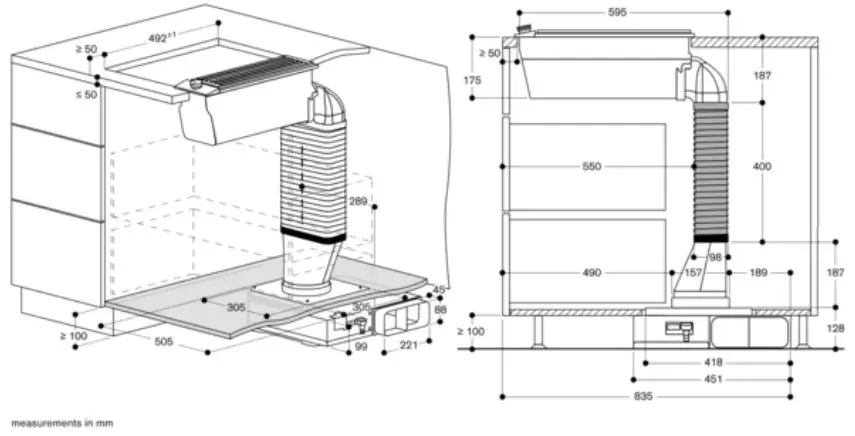

A: ≥ 5Ornm
B: Connecting piece

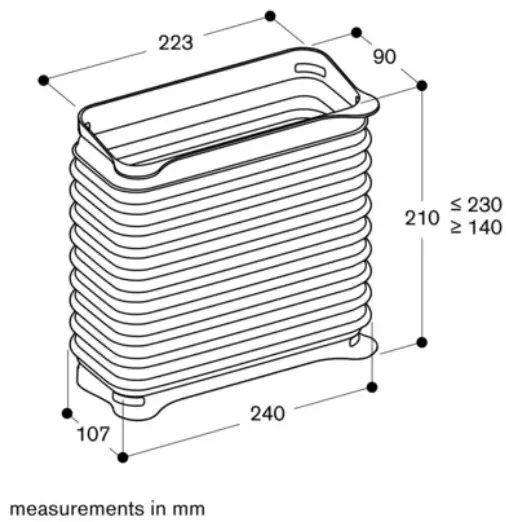

measurements in mm

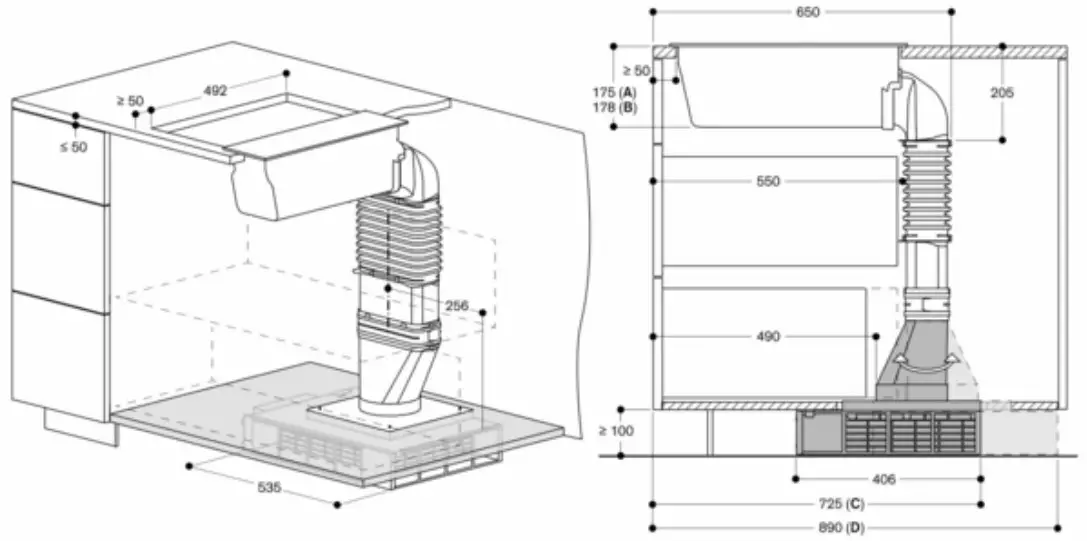

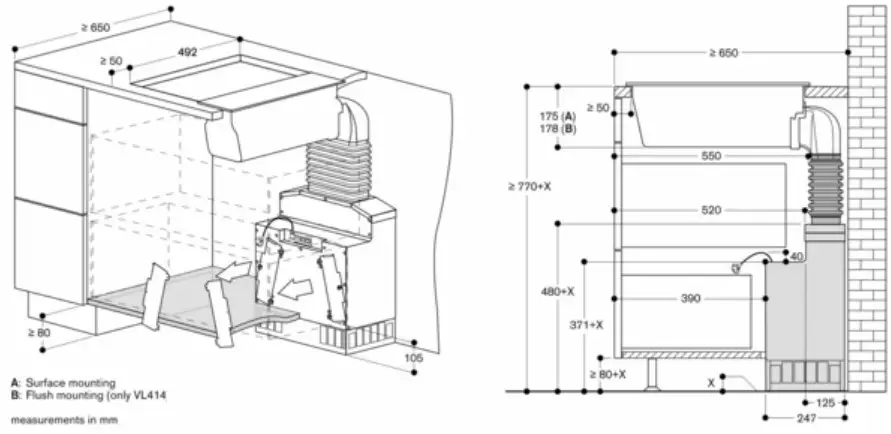

A: Surfers mountei
B: Flush inciuneng ionly VI.4141

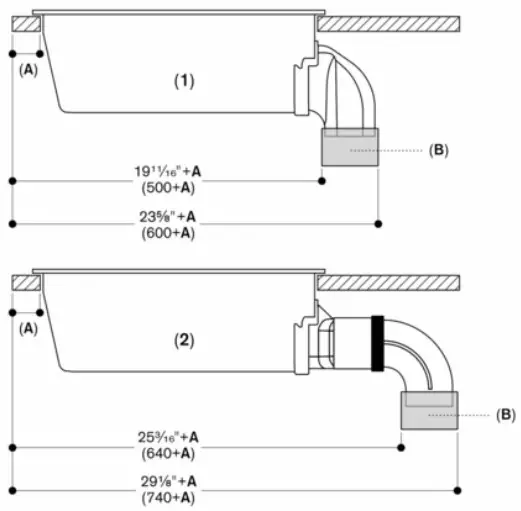

C: Far access from the front Connecting piece flat/round towards the front
D: Finn access from the back. Connecting piece flat/round towards the back

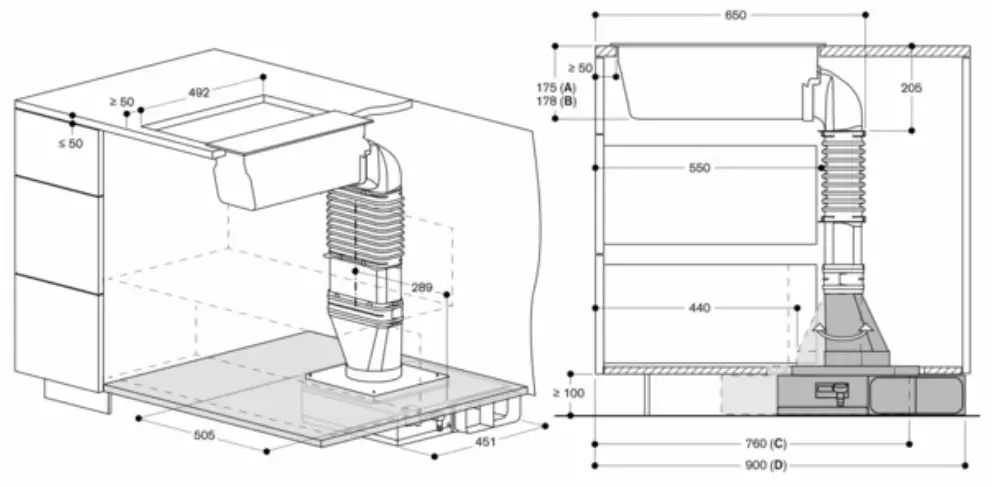

measuremerts m 114-11
A: Surface mouring
B Flush mourtag (only VL414)
C Estrous to the Left Flat/ round connecting piece towards the front
D Estrous to the right Flat/ round connecting piece towards the beck
measurements to fens

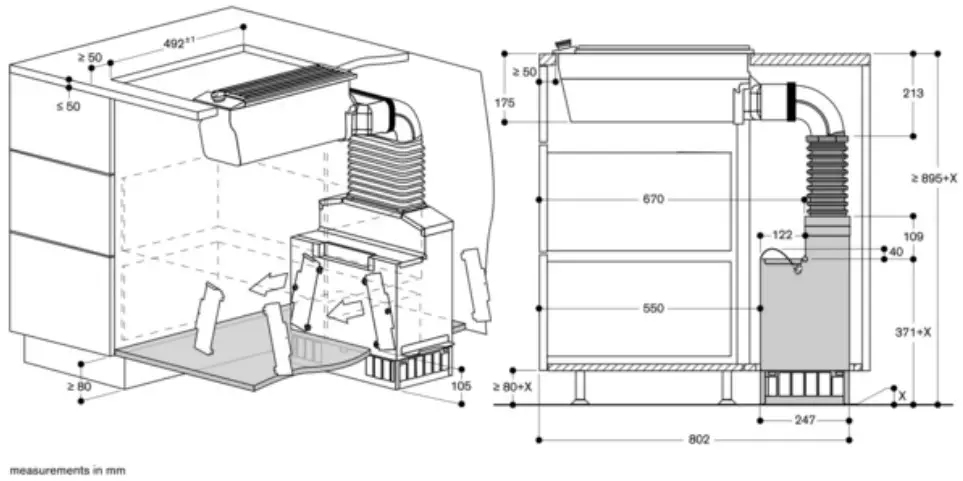

- Direct installation
- Installation with extension for extra deep worktop and metal ducting:
– AD 851 041 (connecting piece for extension)
– AD 854 000 (flat duct connecting piece. metal)
– AD 854 030 (flat duct bend, 90”, vertical, metal)
A: ≥1 15/16″ (50)
B: Connecting piece

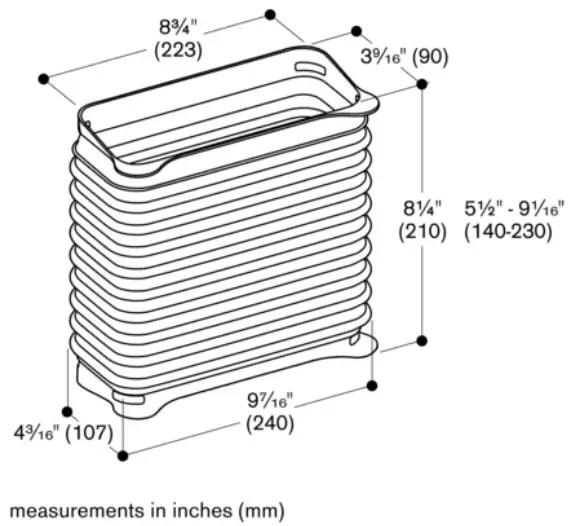

measurements in inches (mm)
