Thermador Vtn1dz Ventilation Blower Motor Instruction Manual

Installation
INSTRUCTIONS
Ventilation Blower Motor
VTN1DZ, VTN2FZ

THERMADOR.COM

  IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

All product manuals may be downloaded online at www.thermador.com/us/support/owner-manuals or www.thermador.ca/en/support/owner-manuals.
INSTALLER: Please leave these instructions with this unit for the owner.
OWNER: Please retain these instructions for future reference. Read all safety instructions before operating the appliance. Have the installer show you where the electric circuit breaker and the gas supply shut-off valve are located so you know how and where to turn off the gas and electricity to the appliance.

Safety definitions
⚠ WARNING: This indicates that death or serious injuries may occur as a result of non-observance of this warning.
⚠ CAUTION: This indicates that minor or moderate injuries may occur as a result of non-observance of this warning.
NOTICE: This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.
Note: This alerts you to important information and/or tips.
Check if this blower is recommended by the manufacturer to be installed with the hood.

WARNING
If the information in this manual is not followed exactly, fire or shock may result causing property damage or personal injury.
WARNING
To avoid electrical shock hazard, before installing, switch power off at the service panel and lock the panel to prevent the power from being switched on accidentally.
CAUTION
FOR GENERAL VENTILATING USE ONLY. DO NOT use to exhaust hazardous or explosive materials and vapors.
WARNING
To reduce the risk of fire or electric shock, do not use this blower with any solid-state speed control device.
WARNING
This appliance must be grounded. Improper grounding can result in a risk of electric shock. Consult a qualified electrician if the grounding instructions are not completely understood, or if doubt as to whether the appliance is properly grounded.

WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

• Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
• Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
• USE ONLY METAL DUCTWORK.
• To reduce risk of fire and to properly exhaust air, be sure to duct air outside. DO NOT vent exhaust air in spaces with walls or ceilings or into attics, crawl spaces or garages.
• When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

Proposition 65 Warning
This product may contain a chemical known to the State of California, which can cause cancer or reproductive harm. Therefore, the packaging of your product may bear the following label as required by California:

State of California Proposition 65 Warning:
⚠ WARNING
Cancer and Reproductive Harm – www.P65Warnings.ca.gov

WARNING
DO NOT repair or replace any part of the appliance unless specifically recommended in the manuals. Improper installation, service or maintenance can cause injury or property damage. Refer to the Installation Manual for guidance. All servicing should be done by an authorized service provider.
If required by the National Electrical Code (or Canadian Electrical Code), this appliance must be installed on a separate branch circuit.

WARNING
ELECTRICAL SHOCK HAZARD:

• DO NOT remove connections.
• DO NOT use an extension cord.

Remove all tape and packaging before using the appliance. Destroy or recycle the packaging after unpacking the appliance.
Never allow children to play with packaging material.

Installation

Compatible hoods

Blower and circuit breaker ratings

⚠ IMPORTANT SAFETY INSTRUCTIONS

• The blower must be attached at least 78¾” (200 cm) from the extractor hood.
• When attaching the outer wall blower, ensure that it is accessible for maintenance and repairs.
• The plug-and-socket connections of the electric cables must be located inside the building, according to local codes.
• DO NOT reduce the 6” (152 mm) diameter of the ducting connected to the extractor hood.

Exhaust-air mode
Exhaust air should not be directed into a smoke or exhaust flue that is currently used for other purposes, nor into a shaft that is used for ventilating rooms in which stoves or fireplaces are also located.
Exhaust air must be discharged in accordance with official and statutory regulations only (e.g. national building regulations).
Local regulations must be observed when discharging air into smoke or exhaust flues that are not otherwise in use. When the extractor hood is operated in exhaust-air mode simultaneously with a different burner which also makes use of the same chimney (such as gas, oil or coal-fired heaters, continuous-flow heaters, hot-water boilers), care must be taken to ensure that there is an adequate supply of fresh air, which will be needed by the burner for combustion.
Safe operation is possible provided that the under pressure in the room where the burner is installed does not exceed 4 Pa (0.04 mbar).
This can be achieved if combustion air can flow through non-lockable openings, e.g. in doors, windows and via the air-intake/exhaust-air wall box or by other technical measures, such as reciprocal interlocking, etc.
If the air intake is inadequate, there is a risk of carbon monoxide poisoning from combustion gases which are drawn back into the room.
An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded.
NOTE: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as ranges and ovens.
Refer to the installation manual for important safety instructions. Use gloves when installing blower unit.

Installing the integral blower

NOTE: Blower and hood image views will vary depending on model.

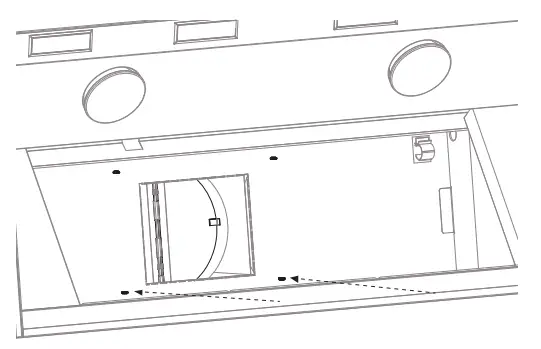

1. Thread one (x1) 4m flange nut (included with the hood) half-way down each of the two weld studs indicated.

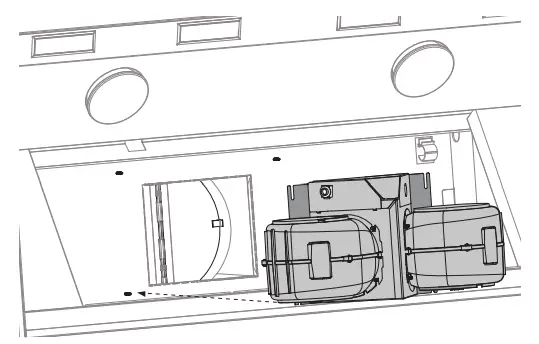

2. Slide the blower mounting plate behind the nuts on the weld studs.

3. Install two (x2) 4m flange nuts (included with hood) to the top weld studs and tighten.
4. Tighten the two (x2) nuts from step 1 to fully secure the blower to the hood.
5. Connect the blower’s plug connector to the connector present inside the hood.

Support

Thank you for being a Thermador customer!

USA:
Thermador is dedicated to supporting you and your appliance so you have many years of creative cooking. Please don’t hesitate to contact us if you have any questions. We’re happy to help you with cleaning and care instructions, cooking tips, accessories, troubleshooting, scheduling service visits, and more.
1-800-735-4328
www.thermador.com/us/support/customer-care
Canada:
1-800-735-4328
www.thermador.ca/en/support/customer-care

Accessories and parts
USA:
Filters, Thermador cleaners, teppanyaki pans, griddles, replacement parts, and more can be purchased in our online accessories store.
www.thermador.com/us/accessories
Canada:
Visit the webpage below to learn how to purchase filters, cleaners, accessories and parts.
www.thermador.ca/en/support/filters-cleaners-accessories

1901 MAIN STREET, SUITE 600, IRVINE, CA 92614 // 800-735-4328 // WWW.THERMADOR.COM
© 2022 BSH Home Appliances Corporation
8001267853
