Anslut 012959 Ventilation Fan Instruction Manual

012959 Ventilation Fan
Instruction ManualItem no.01 2959

Important! Read the user instructions carefully before use. Save them for future reference. (Translation of the original instructions)

SAFETY INSTRUCTIONS

• Disconnect the product from the mains before connecting, maintenance, and/or repair.
• Installation, maintenance, and/or repairs should be carried out by an authorized electrician and in accordance with these instructions.
• The product is intended to be connected to 230 V1-phase installations that comply with local regulations.
• The product must be connected via a permanently installed automatic fuse with a minimum contact gap of 3 mm on all terminals.
• Check before installation that the impeller and casing are undamaged.
• There must be no foreign objects in the casing that could damage the fan blades.
• The product must only be used for its intended purpose and in accordance with these instructions. Do not make any modifications to the product.
• The product is not intended to be used by persons (children or adults) with any form of functional disorders, or by persons who do not have sufficient experience or knowledge on how to use it unless they have received instructions concerning the use of the product from someone who is responsible for their safety.
• Keep children under supervision to make sure they do not play with the product. Take the necessary precautions to prevent smoke, carbon monoxide, and  other flammable products from penetrating into the room through open flues or other fire safety devices.
• Make sure that the air supply is sufficient for correct combustion and adequate chimney draught, to prevent backward flow.
• The transported medium must not contain dust or other solid particles, sticky substances, or fibers.
• Do not use the product in explosive environments, e.g. in the vicinity of flammable liquids, gas or dust, or in environments that contain toxic or harmful substances.
• Do not block the openings on the product to attempt to direct or adjust the airflow
• The product is intended for permanent connection to the mains.

SYMBOLS

	Read the instructions.
	Approved in accordance with the relevant directives.
	Recycle discarded products in accordance with local regulations.

ELECTRICAL SAFETY

New installations and extensions to existing systems should always be carried out by an authorized electrician. If you have the necessary experience and knowledge (otherwise contact an electrician), you can replace power switches and wall sockets, fit plugs, extension cords, and light sockets. Incorrect installation can result in fatal injury and the risk of fire.

TECHNICAL DATA

*in ventilation system

DESCRIPTION

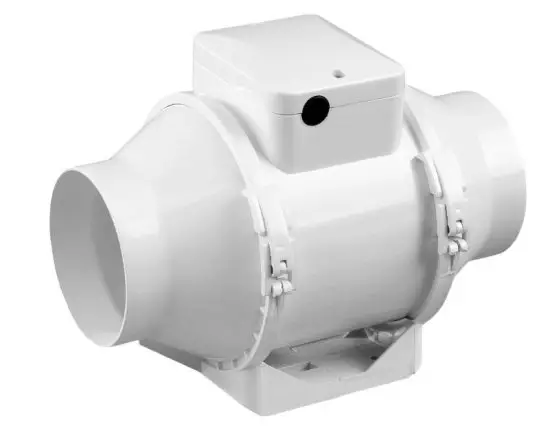

Compact fan for installation in a high-pressure ventilation system with the low noise level. The fan has sleeve bearings, two speeds, withstand temperatures of up to  40C, and is adapted for Ø 100 mm ducts.

INSTALLATION

NOTE:
Disconnect the power supply from the product before installation and connection.

POSITIONING

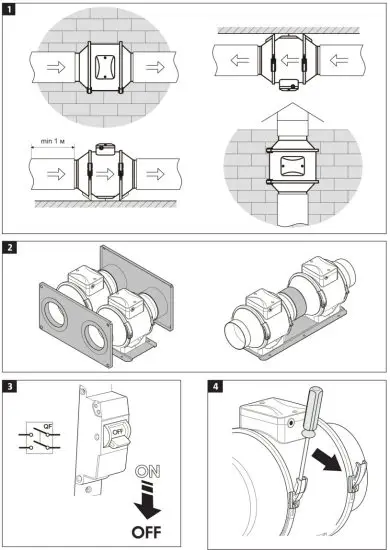

The product is intended for horizontal or vertical installation in a wall, ceiling, or floor (figure 1), freestanding, connected in parallel or in series (figure 2).

NOTE:

• For horizontal installation, the air ducts should have no bends for at least 1 meter on each side of the product.
• For vertical installation, an external cover must be fitted to protect the product from the penetration of water.
• The outlet must be connected to the air duct.

INSTALLATION INSTRUCTIONS

Follow the instructions in figure

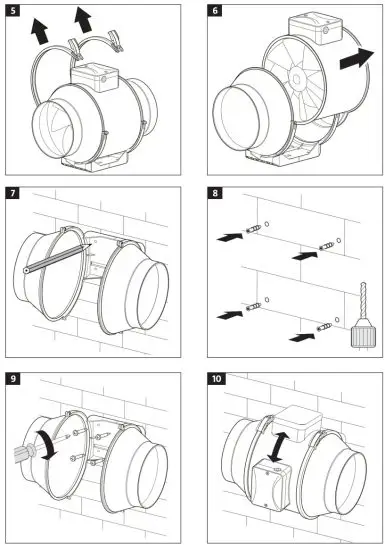

FIG. 3-10

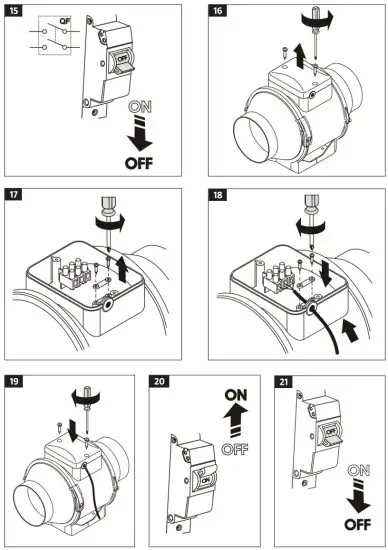

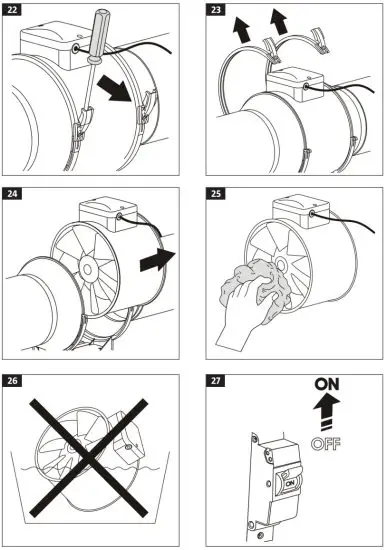

FIG. 15-27

WIRING DIAGRAM
Follow the instructions in the figure:

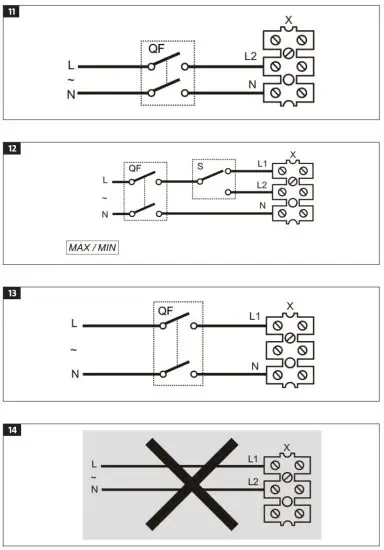

FIG. 11-14

Designations in a wiring diagram

L Live wire
N Neutral wire
L1 Terminal for minimum speed
L2 Terminal for maximum speed External power switch (e.g. to light switch)
QF Automatic fuse

MAINTENANCE

CLEANING

• Remove any dust and dirt from the surface of the product at regular intervals.
• Disconnect the power supply to the product before maintenance and/or cleaning.
• Clean the product with a cloth moistened with water and a mild detergent.
• Make sure no water gets into the electrical components. Wipe the surface dry.

STORAGE
Store the product in the original packaging in a dry, well-ventilated area (temperature 5 to 40.°C, relative humidity max 80%) Keep the storage area free from dust and fumes that can cause corrosion.
