Anslut 012895 Bathroom Fan Instruction Manual

Item no. 012895

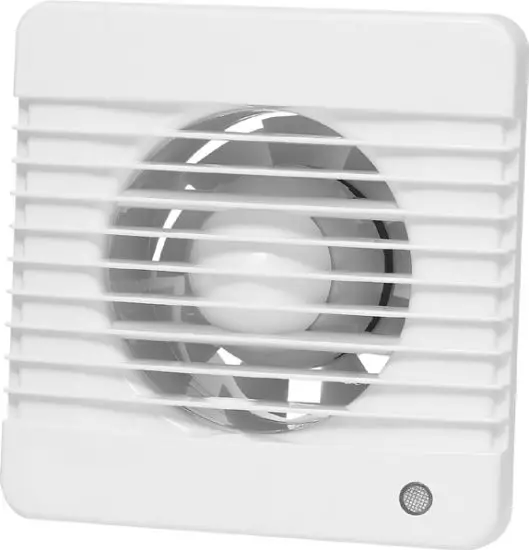

BATHROOM FAN

OPERATING INSTRUCTIONS
Important! Read the user instructions carefully before use. Save them for future reference. (Translation of the original instructions)

Care for the environment!
Recycle discarded product in accordance Bestimmungen recycelt werden.

SAFETY INSTRUCTIONS

• Disconnect the product from the mains before connecting, maintenance and/or repair.
• Installation, maintenance and/or repairs should be carried out by an authorised electrician and in accordance with these instructions.
• The product is intended to be connected to 230 V1-phase installations that comply with local regulations.
• The product must be connected via a permanently installed automatic fuse with a minimum contact gap of 3 mm on all terminals.
• Check before installation that the impeller and casing are undamaged.
• There must be no foreign objects in the casing that could damage the fan blades.
• The product must only be used for its intended purpose and in accordance with these instructions. Do not make any modifications to the product.
• The product is not intended to be used by persons (children or adults) with any form of functional disorders, or by persons who do not have sufficient experience or knowledge on how to use it, unless they have received instructions concerning the use of the product from someone who is responsible for their safety.
• Keep children under supervision to make sure they do not play with the product.
• Take the necessary precautions to prevent smoke, carbon monoxide and other flammable products from penetrating into the room through open flues or other fire safety devices.
• Make sure that the air supply is sufficient for correct combustion and adequate chimney draught, to prevent backward flow.
• The transported medium must not contain dust or other solid particles, sticky substances or fibres.
• Do not use the product in explosive environments, e.g. in the vicinity of flammable liquids, gas or dust, or in environments that contain toxic or harmful substances.
• Do not block the openings on the product to attempt to direct or adjust the air flow.
• The product is intended for permanent connection to the mains.

SYMBOLS

	Read the instructions.
	Safety class II.
	Approved in accordance with the relevant directives.
	Recycle discarded product in accordance with local regulations.

ELECTRICAL SAFETY
New installations and extensions to existing systems should always be carried out by an authorised electrician. If you have the necessary experience and knowledge (otherwise contact an electrician), you can replace power switches and wall sockets, fit plugs, extension cords and light sockets. Incorrect installation can result in fatal injury and the risk of fire.

TECHNICAL DATA

INSTALLATION

The product is intended for installation in a wall or ceiling, for connection to round ventilation ducts.

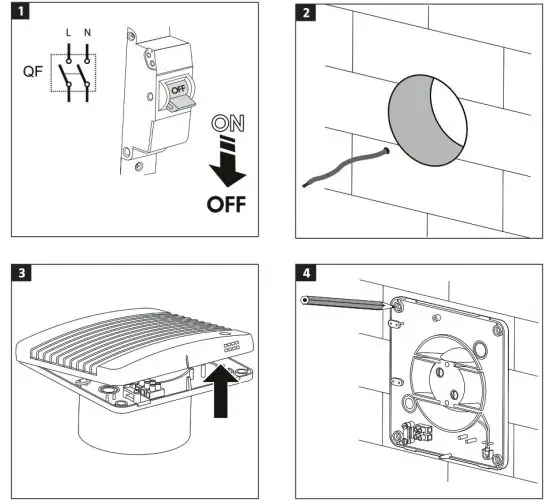

1. Switch off the power supply.
   FIG. 1
   FIG. 2
2. Remove the front cover from the product.
   FIG. 3

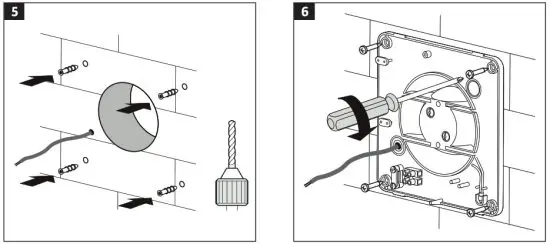

3. Mark out and drill the mounting holes.
   FIG. 4
   FIG. 5
4. Fasten the product with screws.
   FIG. 6

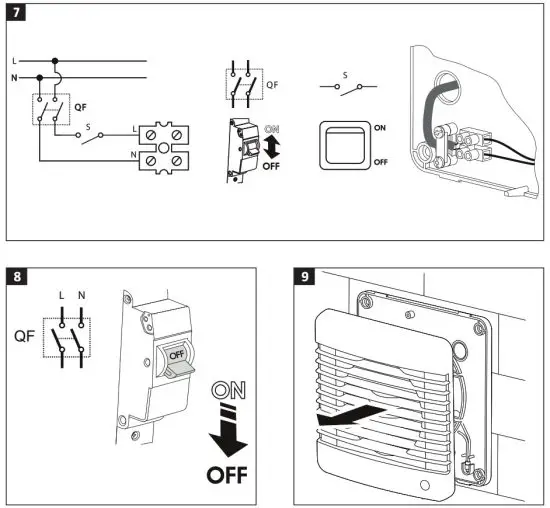

5. Connect the wires to the terminal block.
   FIG. 7
6. Connect the power supply.

DESIGNATIONS IN WIRING DIAGRAM

I: Live wire
N: Neutral wire
QF: Automatic fuse
S: External power switch

MAINTENANCE

1. Switch off the power supply.
   FIG. 8
2. Remove the front cover.
   FIG. 9

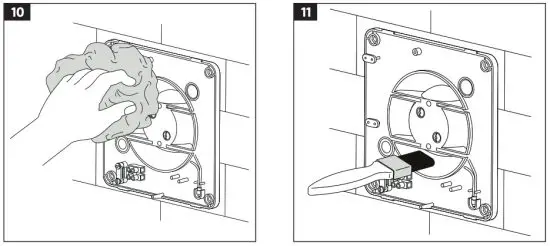

3. Clean the product with a cloth moistened with water and a mild detergent.
   FIG. 10
4. Clean the fan blades with a paintbrush.
   FIG. 11

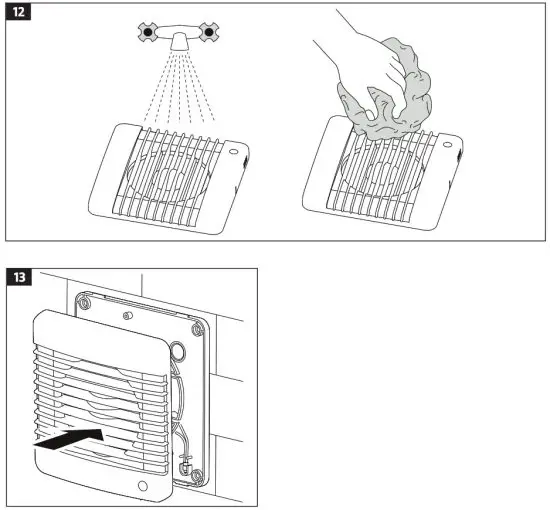

5. Rinse the front grille under running water. Wipe the surface dry.
   FIG. 12
6. Fit the front grille.
   FIG. 13
7. Connect the power supply

NOTE:

• Make sure no water gets into the electrical components.
• Maintenance should be carried out at least once every 6 months.

JULA AB, BOX 363, SE-532 24 SKARA
2022-02-01
© Jula AB
