User manual
| Model name | Car Navigation |
| Model No | FT0048A |
revision history
| revision number | Date | author | Content of change |
| 0 | 2/2/2021 | NEW | |
| 1 | 4/8/2021 | P,5 Bluetooth, WiFi additional | |
1-Function list
| Function | North America | Canada | |
| STEERING WHEEL | LHD | 4- | |
| NAVI | NAVIGATION | SD | 4- |
| RADIO | 4- | AM/FM | 4- |
| PHASE DIVER | 0 | 4- | |
| SW. | SWITCHING DIVER | — | 4- |
| DTV | DIGITAL TV | — | 4- |
| DECK | DVD- PLAYER | 4- | |
| CD | CD RIPPING | — | 4- |
| USB | USB AUDIO | 0 | 4- |
| BT: | BLUETOOTH AUDIO | 0 | 4- |
| AUX | 4- | 0 | 4- |
| VTR | 4- | 0 | 4- |
| HANDSFREE | 0 | 4- | |
| (DVD/VTR) | REAR SEAT VIDEO OUTPUT (DVD/VTR) | 0 4- | |
| A/C | A/C OPERATION SCREEN | 0 | 4- |
| SET LANGUAGE | 0 | 4- | |
| SPEECH RECOGNITION | 0 | 4- | |
| Function | North America | North America | |
| SURROUND MONITORING | 0 | 4- | |
| CLEARANCE SONAR | 0 | <- | |
| e-NAVI | e-NAVI | 0 | 4- |
| REMOTE SERVICE | 0 | 4- | |
| SW | HAZARD SWITCH | – | 4- |
| A/B | PASSENGER INDICATOR | _ | 4- |
| SECURITY INDICATOR | _ | 4- | |
| Function | North America | Canada | |
| RATED VOLTAGE | DC 13.2V | !- | |
| OPE RATIN G VOLTAGE | DC 10.5V– 16V | 4— | |
| BACK UP CURRENT | MAX : 3.7mAlaT (12V) MAX:3.7mA OR LESS(1 2V) | 4— | |
| POWER CONSUMPTION | MAX: 9.9AltaT (10.5V) MAX:9.9A OR LESS(1 0.5V) | !- | |
| AM | AM TUNING RANGE | 530 — 1710k Hz | 4— |
| FM | FM TUNING RANGE | 87.75— 107.9MHz | 4— |
| XM | XM T U NIN G RANGE | 2332.5— 2345MHz | 4- |
| HD-AM | HD-AM TUNING RANGE | 530–1710k Hz | 4— |
| HD-FM | HD-FM T U N IN G RANGE | 87.75— 107.9MHz | 4- |
| Bluetooth | Bluetooth TUNING RANGE | 2402^- 2480MHz | (- |
| WiFi | WiFi TUNING RANGE | 2412– 2462MHz | ,— |
| Function | North America | Canada | |
| DVD | DVD PLAYER | 12cm 12cm 1 DISC | 4— |
| SD ( MAP) | SD CAPACITY (MAP) | 16G | 4- |
| PERFORMANCE GUARANTEED TEMPERATURE RANGE | -20 — 65°C | (- | |
| COMMUNICATION FUNCTION | -30–65°C | (- | |
| MOVABLE PART | -20-65°C | 4- | |
| PRESERVATION TEMPERATURE RANGE | -40-85°C | (- | |

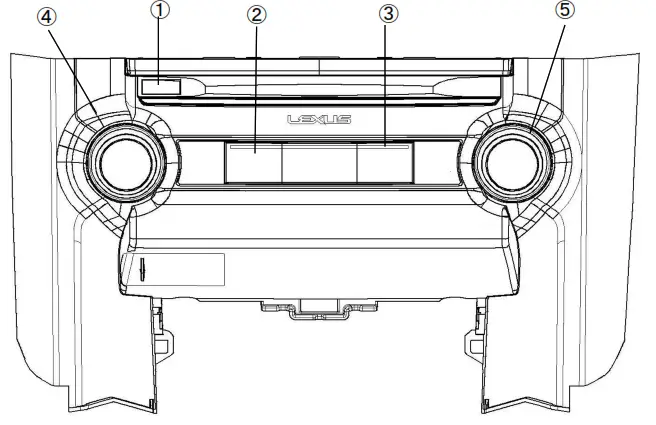

| N2 | Button Name | Time | Function |
1 |  | DISC EJECT | |
2 | < CH •TRACK | – | Preset-Channel DOWN Key Track DOWN Key |
3 | CH •TRACK > | – | Preset-Channel UP Key Track UP Key |
4 | PWR•VOL | – | PWR supply switch (Audio ON/OFF) VOL control |
5 | TUNE -SCROLL | – | TUNE•SCROLL control LIST choice |
FCC
CAUTION: Radio Frequency Radiation Exposure
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20cm or more away from the person’s body in the normal use position.
Co-location: This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC WARNING
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
