KM-T6-AL1 Mainboard
User Manual
KM-T6-AL1 Mainboard
| Device Type | Mainboard |
| Processor | Pentium II |
| Processor Speed | 233/266/300/333MHz |
| Chip Set | Intel |
| Maximum Onboard Memory | 384MB (SDRAM supported) |
| Cache | 256/512KB (located on the Pentium II CPU) |
| BIOS | Award |
| Dimensions | 304mm x 200mm |
| I/O Options | 32-bit PCI slots (4), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial interfaces (2), IR connector, USB interfaces (2), ATX power connector, AGP slot |

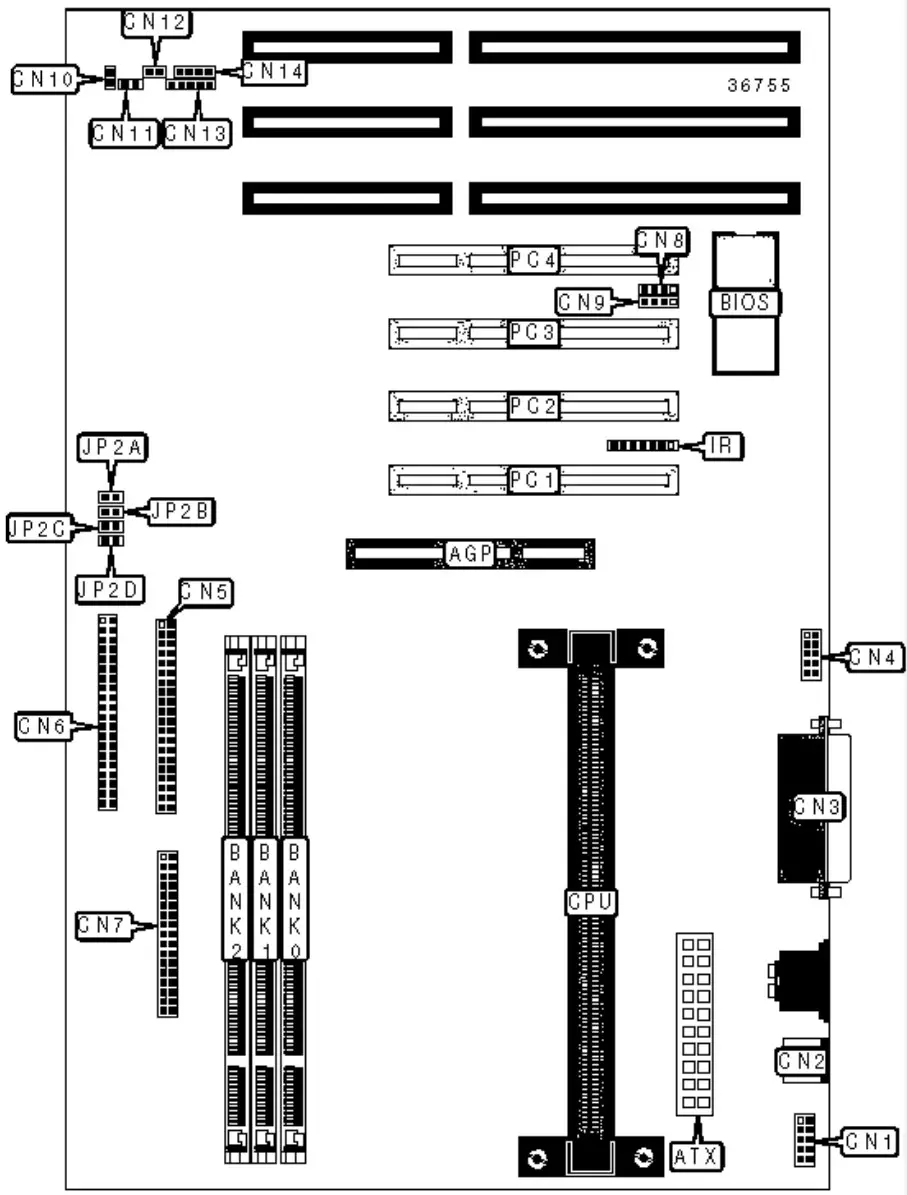

CONNECTIONS
| Purpose | Location | Purpose | Location |
| AGP slot | AGP | USB interface 1 | CN8 |
| ATX power connector | ATX | USB interface 2 | CN9 |
| Serial interface 1 | CN1 | Reset switch | CN10 |
| PS/2 mouse port | CN2 | Power switch | CN11 |
| Parallel port | CN3 | IDE interface LED | CN12 |
| Serial interface 2 | CN4 | Power LED & keylock | CN13 |
| IDE interface 1 | CN5 | Speaker | CN14 |
| IDE interface 2 | CN6 | IR connector | IR |
| Floppy drive interface | CN7 | 32-bit PCI slots | PC1 – PC4 |
DIMM CONFIGURATION
| Size | Bank 0 | Bank 1 | Bank 2 |
| 8MB | (1) 1M x 64 | None | None |
| 16MB | (1) 1M x 64 | (1) 1M x 64 | None |
| 16MB | (1) 2M x 64 | None | None |
| 24MB | (1) 1M x 64 | (1) 1M x 64 | (1) 1M x 64 |
| 32MB | (1) 2M x 64 | (1) 2M x 64 | None |
| 32MB | (1) 4M x 64 | None | None |
| 32MB | (1) 2M x 64 | (1) 1M x 64 | (1) 1M x 64 |
| 48MB | (1) 2M x 64 | (1) 2M x 64 | (1) 2M x 64 |
| 48MB | (1) 4M x 64 | (1) 1M x 64 | (1) 1M x 64 |
| 64MB | (1) 4M x 64 | (1) 4M x 64 | None |
| 64MB | (1) 8M x 64 | None | None |
| 64MB | (1) 4M x 64 | (1) 2M x 64 | (1) 2M x 64 |
| 80MB | (1) 8M x 64 | (1) 1M x 64 | (1) 1M x 64 |
| 96MB | (1) 4M x 64 | (1) 4M x 64 | (1) 4M x 64 |
| 96MB | (1) 8M x 64 | (1) 2M x 64 | (1) 2M x 64 |
| 128MB | (1) 8M x 64 | (1) 8M x 64 | None |
| 128MB | (1) 16M x 64 | None | None |
| 128MB | (1) 8M x 64 | (1) 4M x 64 | (1) 4M x 64 |
| 144MB | (1) 16M x 64 | (1) 1M x 64 | (1) 1M x 64 |
| 160MB | (1) 16M x 64 | (1) 2M x 64 | (1) 2M x 64 |
| 192MB | (1) 8M x 64 | (1) 8M x 64 | (1) 8M x 64 |
| 192MB | (1) 16M x 64 | (1) 4M x 64 | (1) 4M x 64 |
| 256MB | (1) 16M x 64 | (1) 16M x 64 | None |
| 256MB | (1) 16M x 64 | (1) 8M x 64 | (1) 8M x 64 |
| 384MB | (1) 16M x 64 | (1) 16M x 64 | (1) 16M x 64 |
Note: Board supports SDRAM memory.
CACHE CONFIGURATION
Note: 256KB/512KB cache is located on the Pentium II CPUs.
CPU MULTIPLIER SELECTION
| Multiplier | JP2A | JP2B | JP2C | JP2D |
| 3.5x | Open | Open | Closed | Closed |
| 4x | Closed | Closed | Open | Closed |
| 4.5x | Open | Closed | Open | Closed |
| 5x | Closed | Open | Open | Closed |
